4 W D D Y N O I N S T A L L A T I O N
Unpacking and Inspecting the Dyno
Version 8 Above Ground Model 424x/424xLC 2 Automotive Dynamometer Installation Guide
3-3
4 Verify the contents of the hardware boxes and set aside.
Note: The hardware required for the 4WD dyno installation may be packed in the
stationary dyno crate (crate 1).
5 Remove the crate braces that support the top portion of the crate.
6 Remove the four lag bolts and washers securing the dyno to the crate base using a
9/16-inch socket, open or box end wrench.
7 Before removing the dyno from the crate, you will need to install the track
assembly in your dyno room. Refer to the instructions page 3-4 for more
information on installing the track assembly.

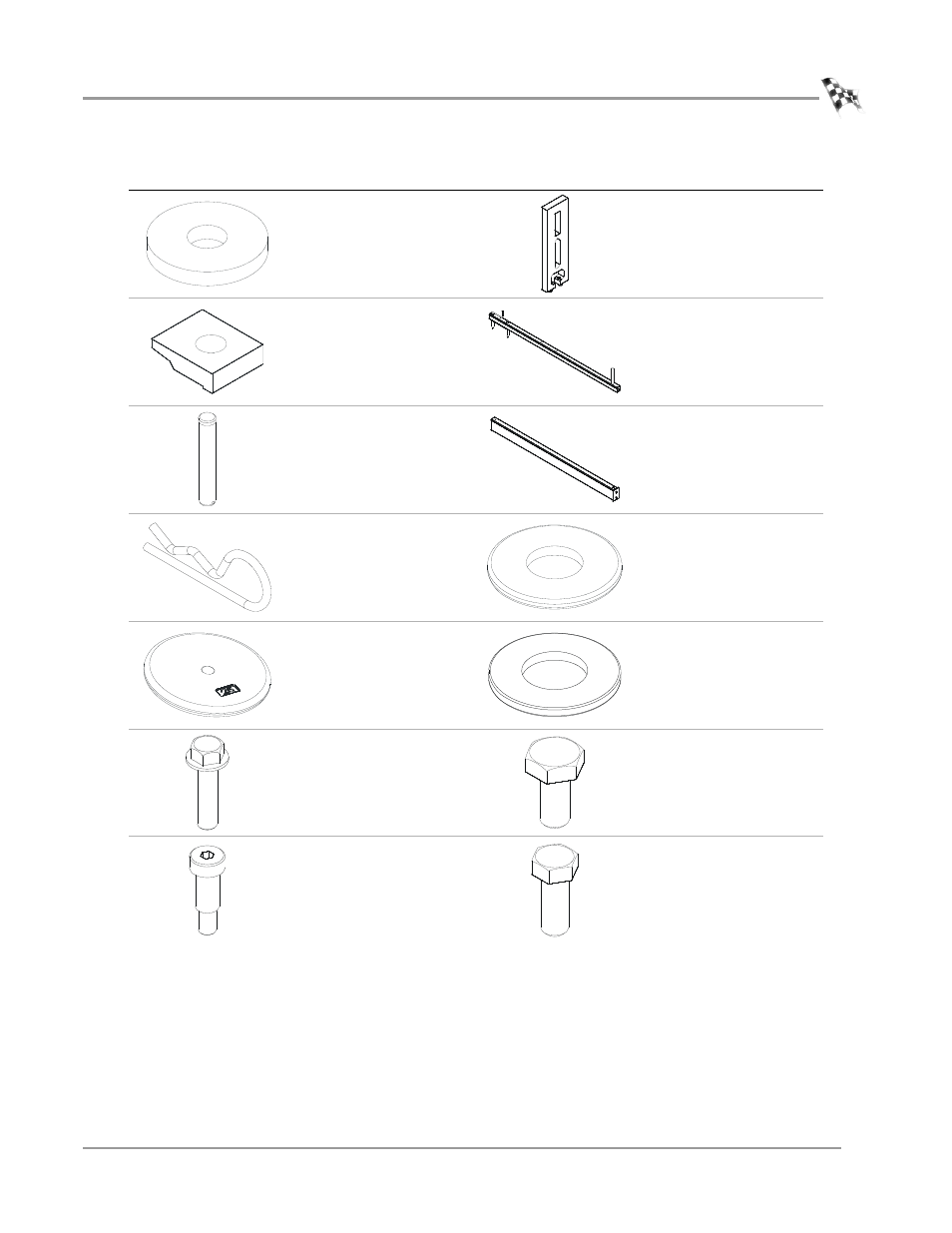

spacer, rail clamp (8)
P/N 26152020
rail clamp (4)
P/N 61314700
rail clip (10)
P/N 31619500
calibration arm assembly
P/N 61319001
clevis pin, 3/4 x 4.5" (2)
P/N 32900000
runner assembly (30)
P/N 61319500
hairpin cotter,
7/16 x 3/4" (2)
P/N 32904080
washer, 1/4", flat (4)
P/N DM150-009-003
weight (4)
P/N 35430899
washer, 3/8", flat (4)
P/N DM150-011-002
bolt, 3/8-16 x 1.5", flange,
hex (12)
P/N 36582471
bolt, 1/4 x 1/2", hex (4)
P/N DM150-011-005
bolt, shoulder, 3/8-16,
1/2"D x 1"L (8)
P/N 36800973
bolt, 3/8-16 x 1", hex (6)
P/N DM150-019-012
part description part description
