Above Ground Model 424x/424xLC 2 Automotive Dynamometer Installation Guide
C H A P T E R 4
Torque Module Installation
4-20
I NSTALLING THE T OP AND L OGO P ANEL C OVERS
Note: Before installing the top and logo panel side covers, verify all cables have
been routed and you have completed the 4WD dyno installation. Refer to “Cable
Routing” on page 3-11 for more information.
Repeat these steps for both eddy current brakes.
1
Install the small top cover using four 1/4-20 x 5/8-inch torx flange screws removed
earlier.
2 Install the large top cover using eight 1/4-20 x 5/8-inch torx flange screws
removed earlier.
3 Install the logo panel side cover using six 1/4-20 x 5/8-inch torx flange screws
removed earlier.

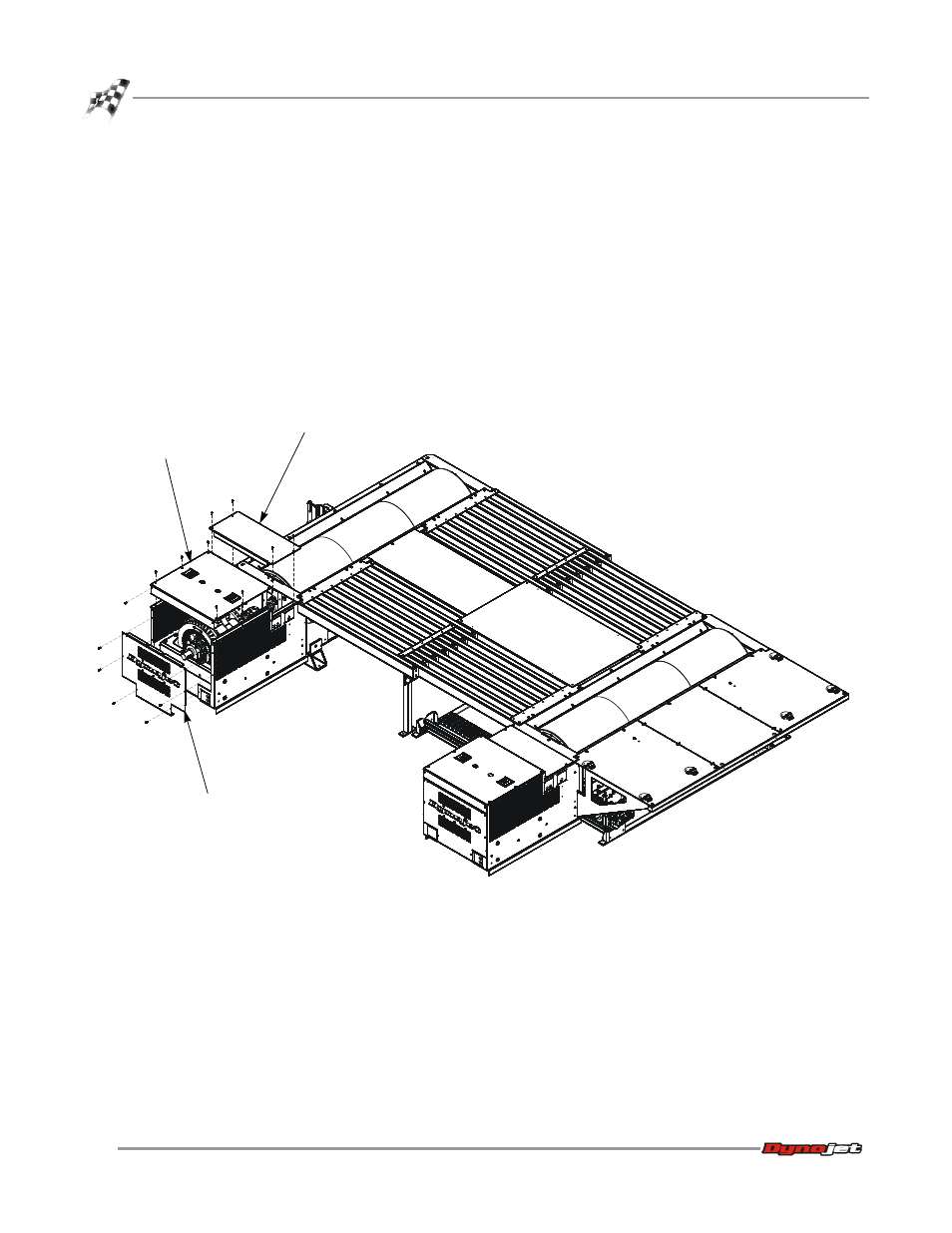

Figure 4-22: Install the Top and Logo Panel Covers
AD262
small top cover
logo panel side cover
large top cover
