Above Ground Model 424x/424xLC 2 Automotive Dynamometer Installation Guide
C H A P T E R 2
Unpacking and Inspecting the Dyno
2-2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
UNPACKING AND INSPECTING THE DYNO
When you receive your dyno, examine the exterior of the shipping container for any
visible damage. If damage is detected at this stage, contact the shipper or Dynojet
before proceeding with unpacking.
Use the following steps to unload your dyno. You will need to provide equipment
capable of lifting a minimum of 2,114 kg (4,660 lb.) to move the crated dyno into
position in your dyno room. Refer to “Dynamometer Specifications and
Requirements” on page 1-4 for more information.
1
Move the crated dyno to a clear area near your dyno room.
2 Using a pry bar, or a large flat screwdriver, and a hammer, remove the top and
sides of the crate.
3 Inspect the exterior of the dyno for any indications of damage. Report any
damage immediately.
4 Remove the boxes and loose parts from the crate, verify their condition and
contents and set them aside.
Note: Some of these parts may have been shipped in the 4WD dyno crate
(crate 2).

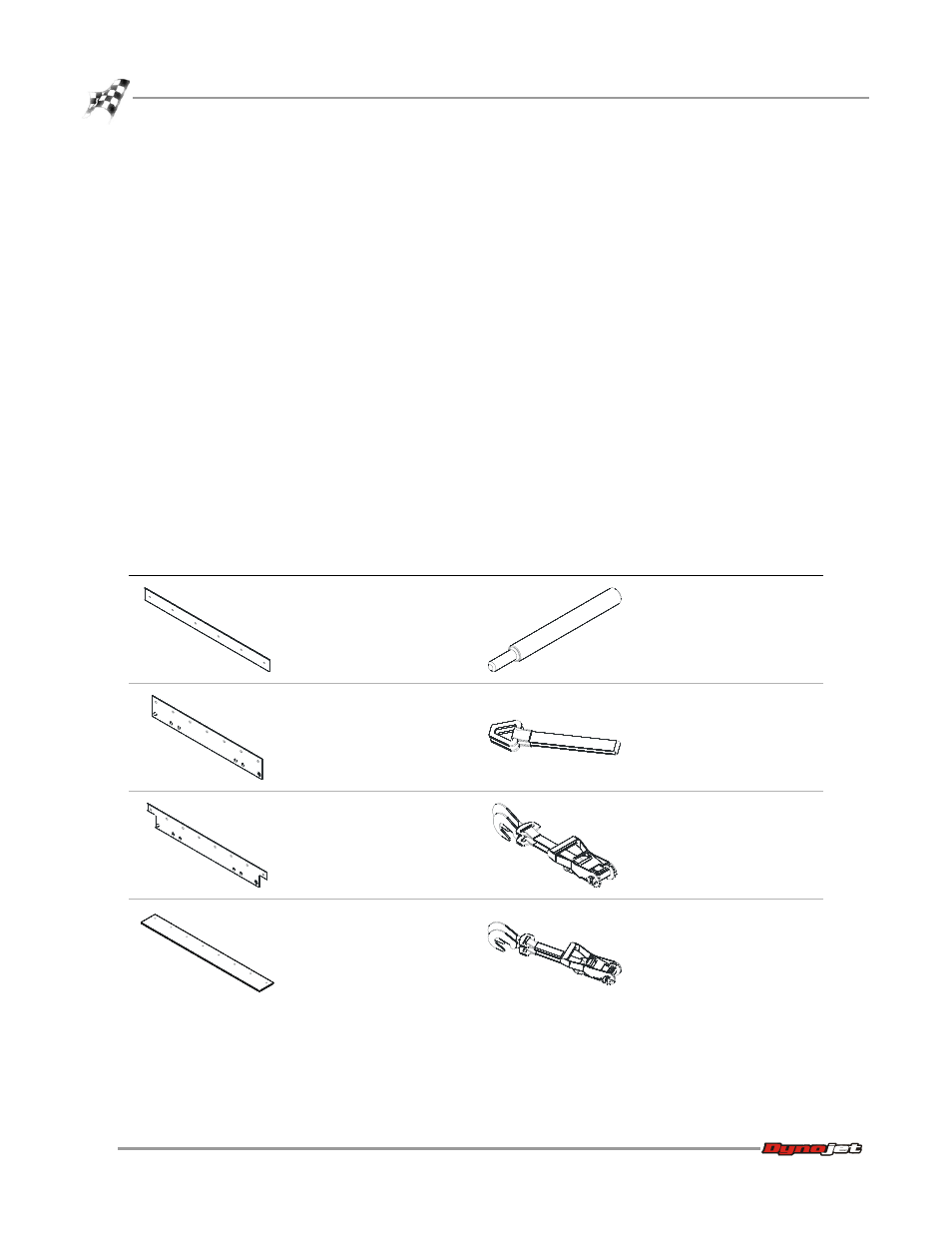

part description part description
runner tie strap (2)
P/N 21214701
installation tool, redhead
anchor
P/N 37518200
runner clamp, short (2)
P/N 21214702
axle strap, 21" (4)
P/N 30AS21
runner clamp plate (2)
P/N 21214703
car tie-down, 2" x 10’ (4)
P/N 500-C10
runner slide (2)
P/N 21214704
car tie-down, hi-perf,
2" x 10’ (2)
P/N 500-C10W/S
