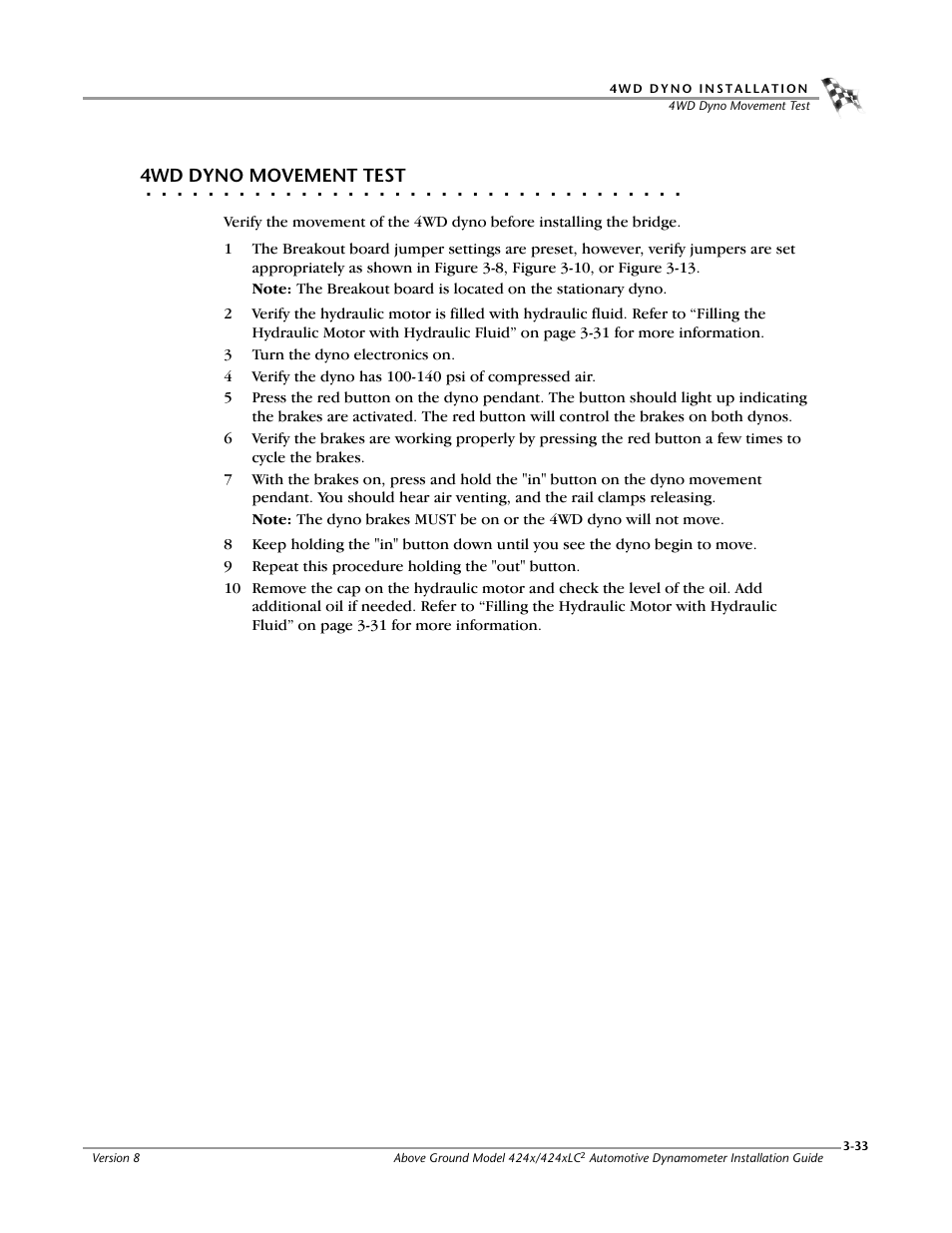

4wd dyno movement test – Dynojet 424x: Installation Guide User Manual
Page 71
This manual is related to the following products:
