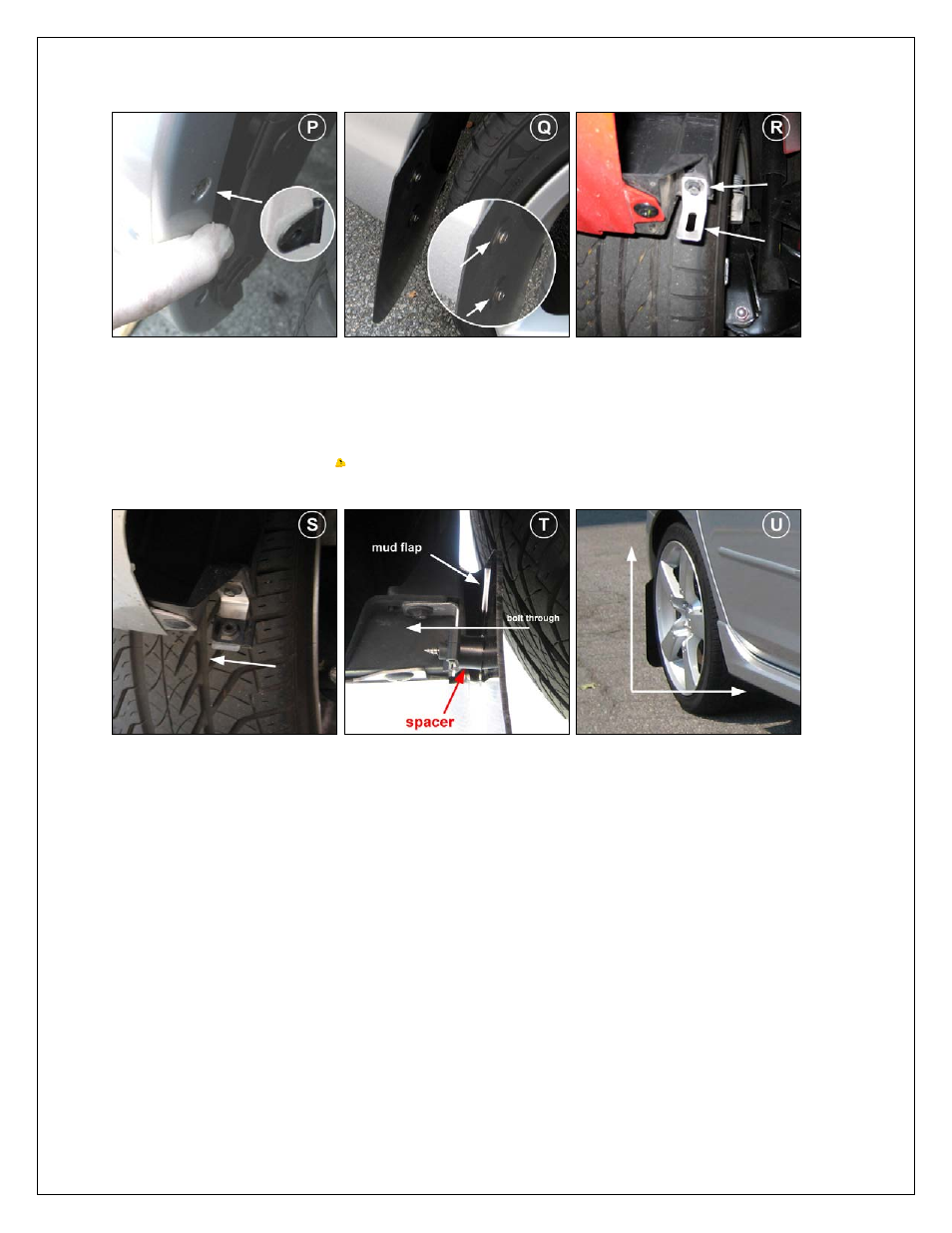

Step 6) Slide a polygon clip (PolCl) over the side of the rear mounting bracket (Figure S).
Step 7) Place round spacer between mud flap and mounting bracket aligning the hole of the polygon clip with the spacer. Hand
thread a long screw (1.5SS) through a washer (FenWash) then through mud flap, spacer (.5SP) and into polygon clip. Do not bolt
fully. Allow movement in order to align mud flap (Figure T).
Step 8) Step away from the vehicle and adjust rear mud flap until perpendicular to the ground. Shift mud flap until aligned then
tighten all screws until snug (Figure U).
Tip: The hardware is quite strong and self threading but over‐tightening the clips
beyond their limit is not recommended.
Repeat the instructions for the passenger side of the vehicle to complete installation.
