Rally Armor 07-13 Mitsubishi Lancer - Manual (Page 3)

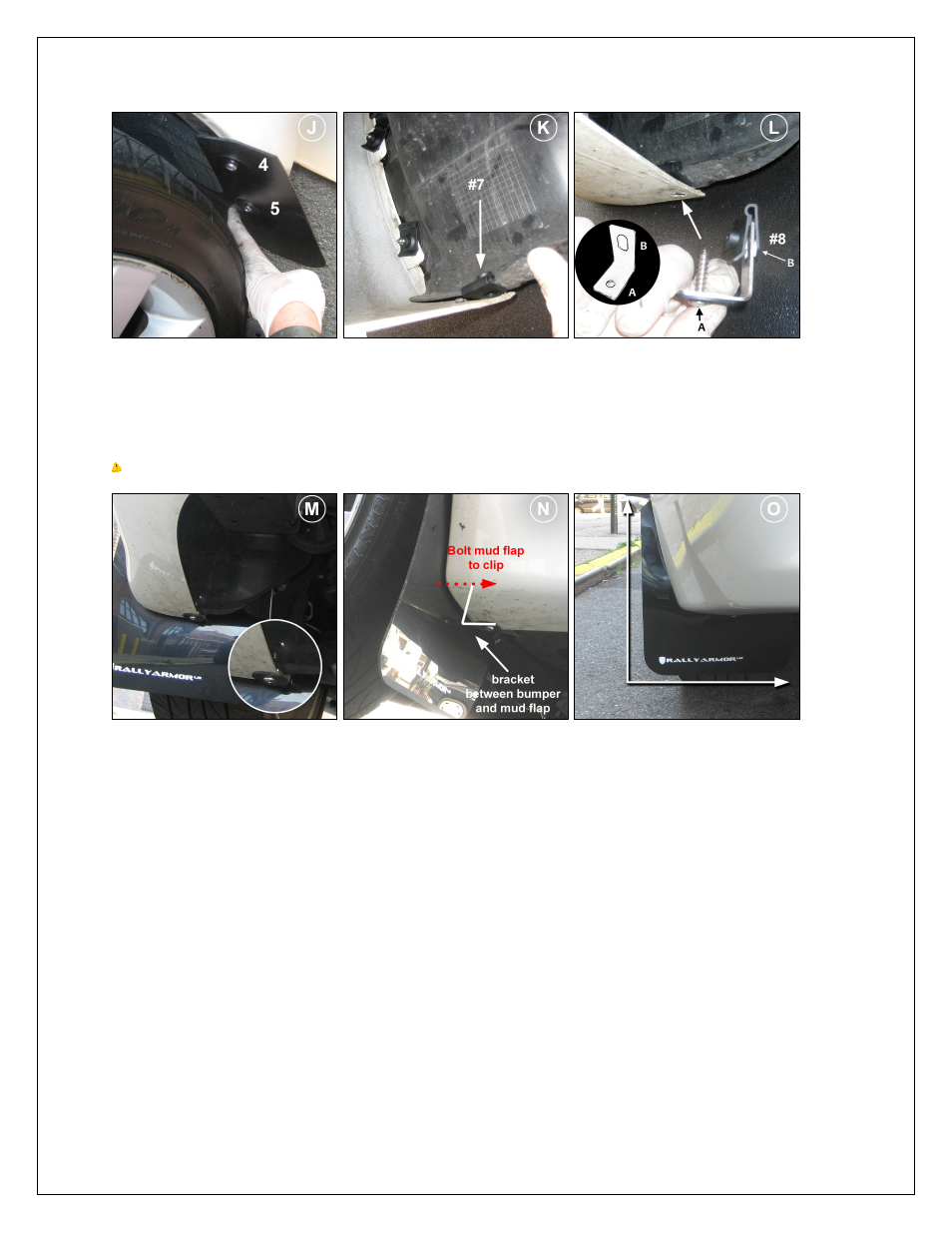

7) Working from the tire side towards the back, mount the mud flap to bracket by threading 1 short screw (1SS) through a washer (FenWash)
then through mud flap mounting point into mounting point #8 (the polygon clip on L bracket hole B).
*Do not fully tighten* (Figures M and N).
8) To align your mud flaps properly, walk away from the vehicle to view mud flap from behind. Confirm the edge of the flap is perpendicular to
the ground. If needed, make slight adjustments by incrementally shifting the upper or lower portions of the flap. Always check each alignment
you have performed by walking away from the vehicle and looking at the mud flap directly ehind it making sure it is aligned to the ground and
b
to the body of the vehicle. When flap is correctly aligned, tighten hardware only until snug (Figure O).
Tip: The hardware is quite strong and self threading but over‐tightening the clips beyond their limit is not recommended.
3
