Rear Mud Flap Installation
Remove the rear tires to allow access to rear wheel well area. Consult your owner's manual for information about safe practices for
raising and securing your vehicle off the ground.

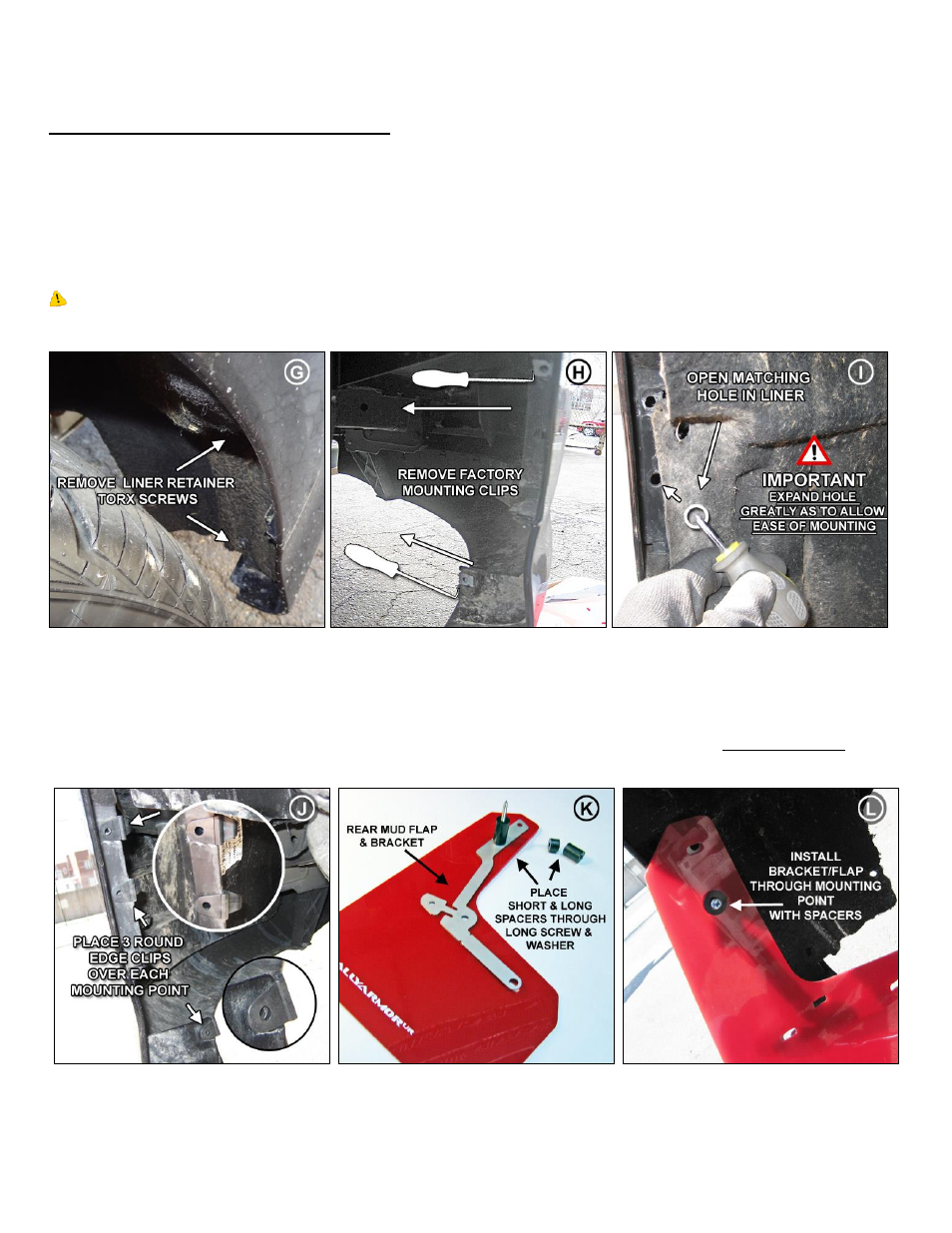

• (Figure G) Remove rear stock retainer screws as shown.
• (Figure H) Pull liner away to gain access to the inner bumper area. Remove stock metal fasteners. Fasteners can be uninstalled with
the assistance of a pick.
• (Figure I)
Create a matching mounting hole in the liner for the hidden mounting point found underneath.
TIP: Expand this point as large as the factory point above it. A larger mounting point will ease your installation.
• (Figure J) Place 3 Round edge clips over each of the mounting points as shown.
• (Figure K) Lay rear bracket against logo side of the mud flap. Place a long screw (3SS) and small washer (SmWash) through the front
of the flap, into the bracket. Place a short spacer and a long spacer through the long screw (3SS) on the bracket side as shown.
• (Figure L) Place the mud flap with the logo facing the rear of the vehicle, against the corresponding mounting point on the bumper
and bracket. Install this screw until the mud flap assembly is loosely secured on to the body of the vehicle. Do not fully tighten
