Rally Armor 2012+ Fiat 500 - Manual (Page 4)

IMF25
IMF25
Version 1.0 Release Date 3.4.2013
4

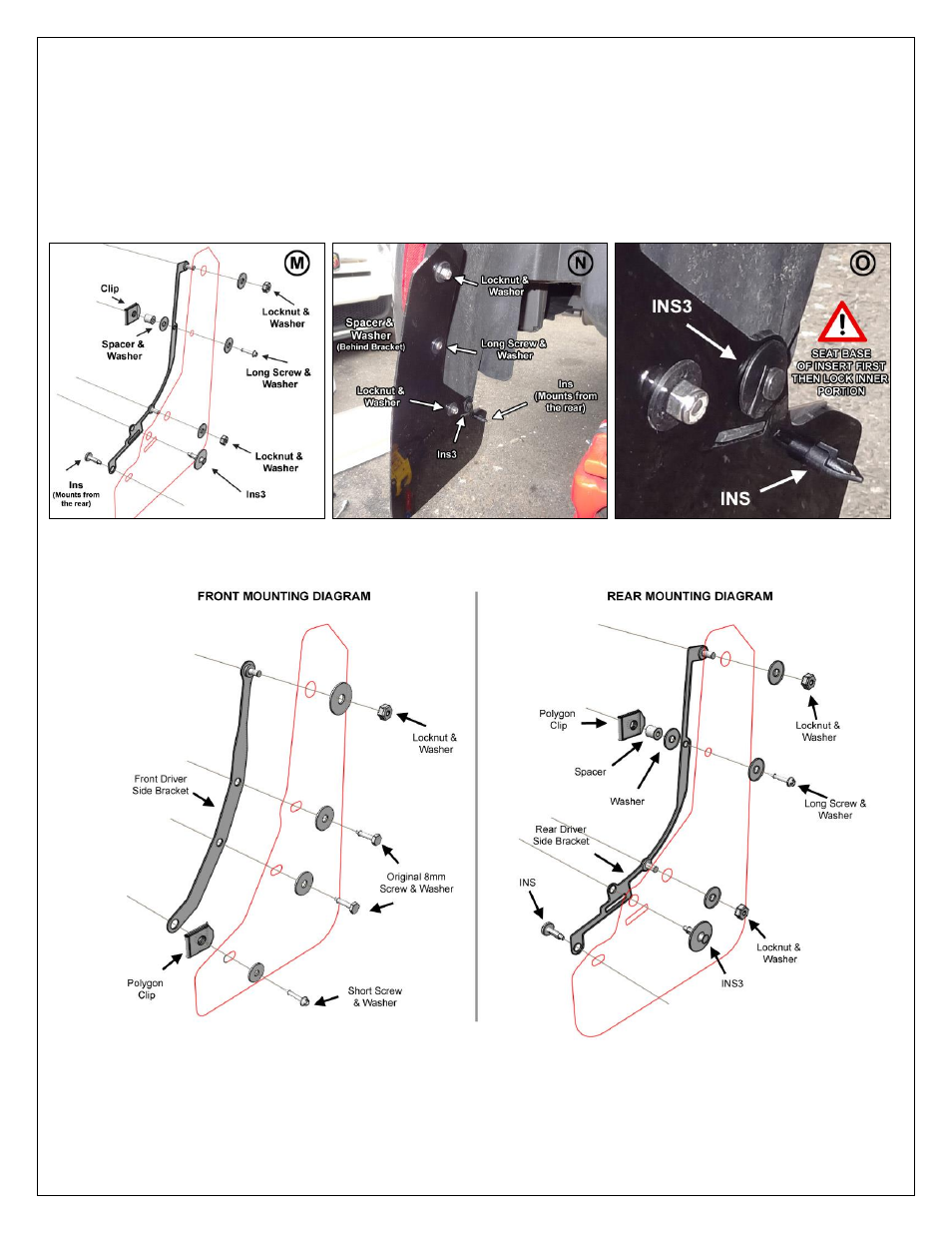

• (Figure M) Reinstall entire assembly with the flap over bracket. See diagram on last page.
• (Figure N) Passenger side rear mud flap mounted.
• (Figure O) Important- Ins3 must be seated flush against flap, bracket and liner as shown. Hold the rear of the liner with two fingers,
seating the wide base flat against flap first, and pushing inner insert locking mechanism with your thumb afterwards. Ins is mounted
through the logo side of the flap.
