support.dell.com Jumpers, Switches, and Connectors A-5
SCSI Backplane Board Connectors
Figure A-2 shows the location of the connectors on the back of the SCSI backplane
board.

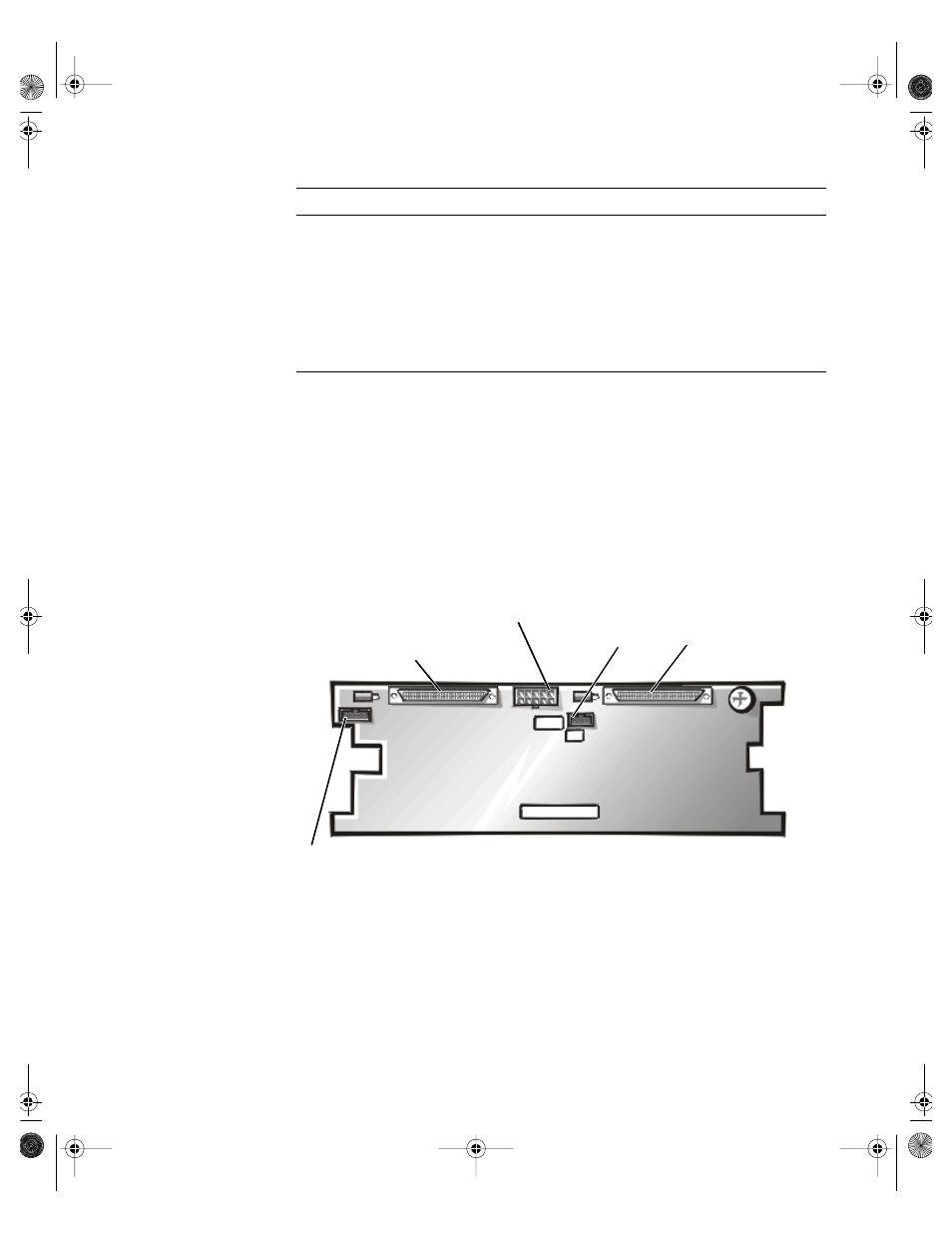

Figure A-2. Connectors on the SCSI Backplane Board
PROC_ n Microprocessor guide bracket assembly and
connectors
RAID_KEY** Socket for integrated RAID controller hardware key
SCSI1, SCSI2** Ultra160/m SCSI host adapter connectors
USB n* USB connector
VGA* Video connector
Table A-2. System Board Connectors and Sockets (continued)
Connector or Socket Description
*not used during normal operation
**not supported
NOTE: For the full name of an abbreviation or acronym used in this table, see “Abbreviations and
Acronyms.”
power connector (POWER2)
Ultra160/m SCSI cable
connector (SCSIA)
data cable connector to optional fifth drive board (DRIVE5)
system-board data
cable connector
(PLANAR)
Ultra160/m SCSI cable
connector (SCSIB)
