About Your System
NOTE:
The Fibre Channel switch module includes Short Wave Small Form Factor
Pluggable (SFP) optical transceivers. To ensure proper functionality, use only SFPs
provided with this module.

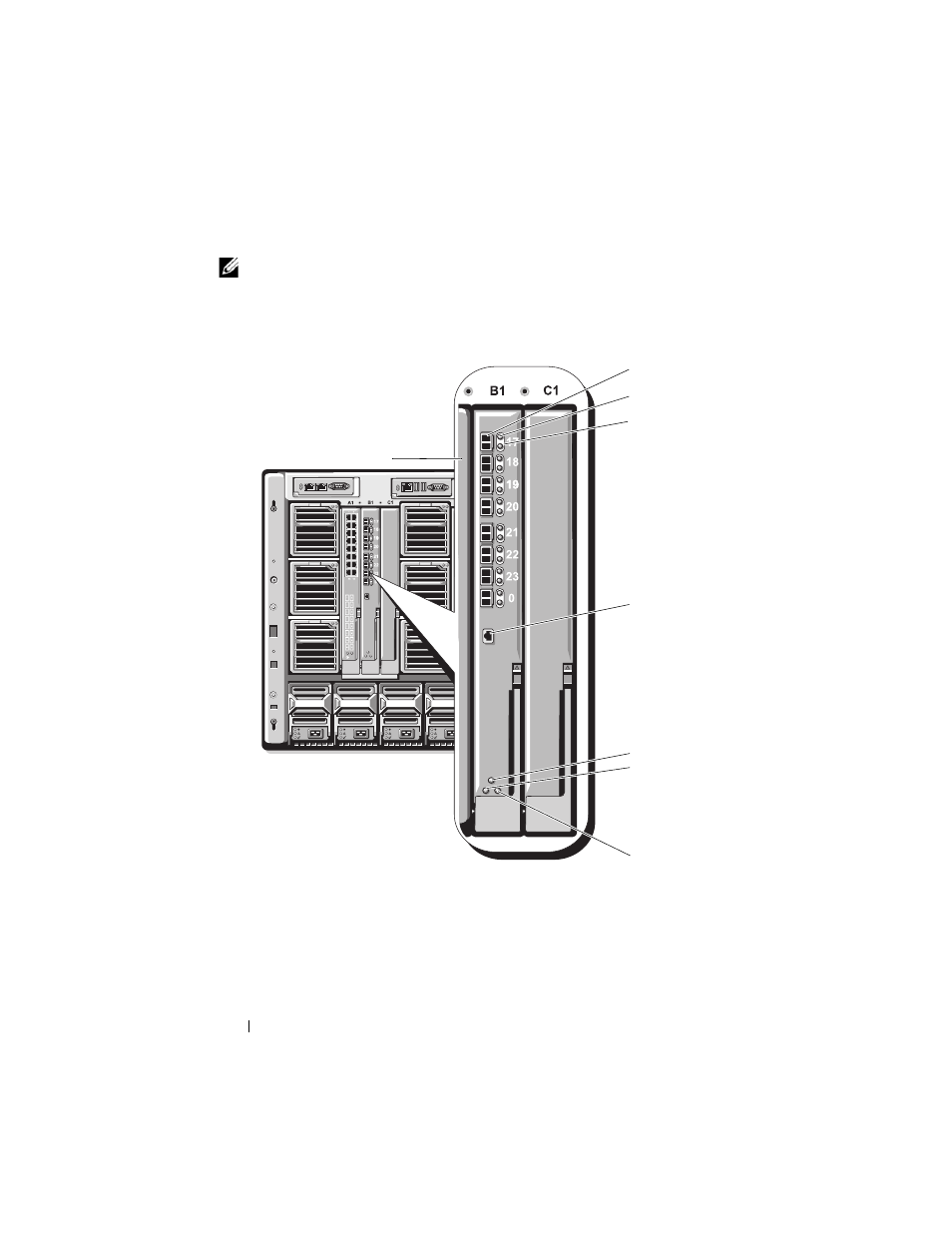

Figure 1-22. Brocade M4424 SAN I/O Module Features
1 Fibre Channel port (8) 2 Fibre Channel port status
indicator (8)
3 Fibre Channel port speed
indicator (8) 4 serial port (RJ-45 connector)
2
4
3
5
6
7
1
