Installing Enclosure Components

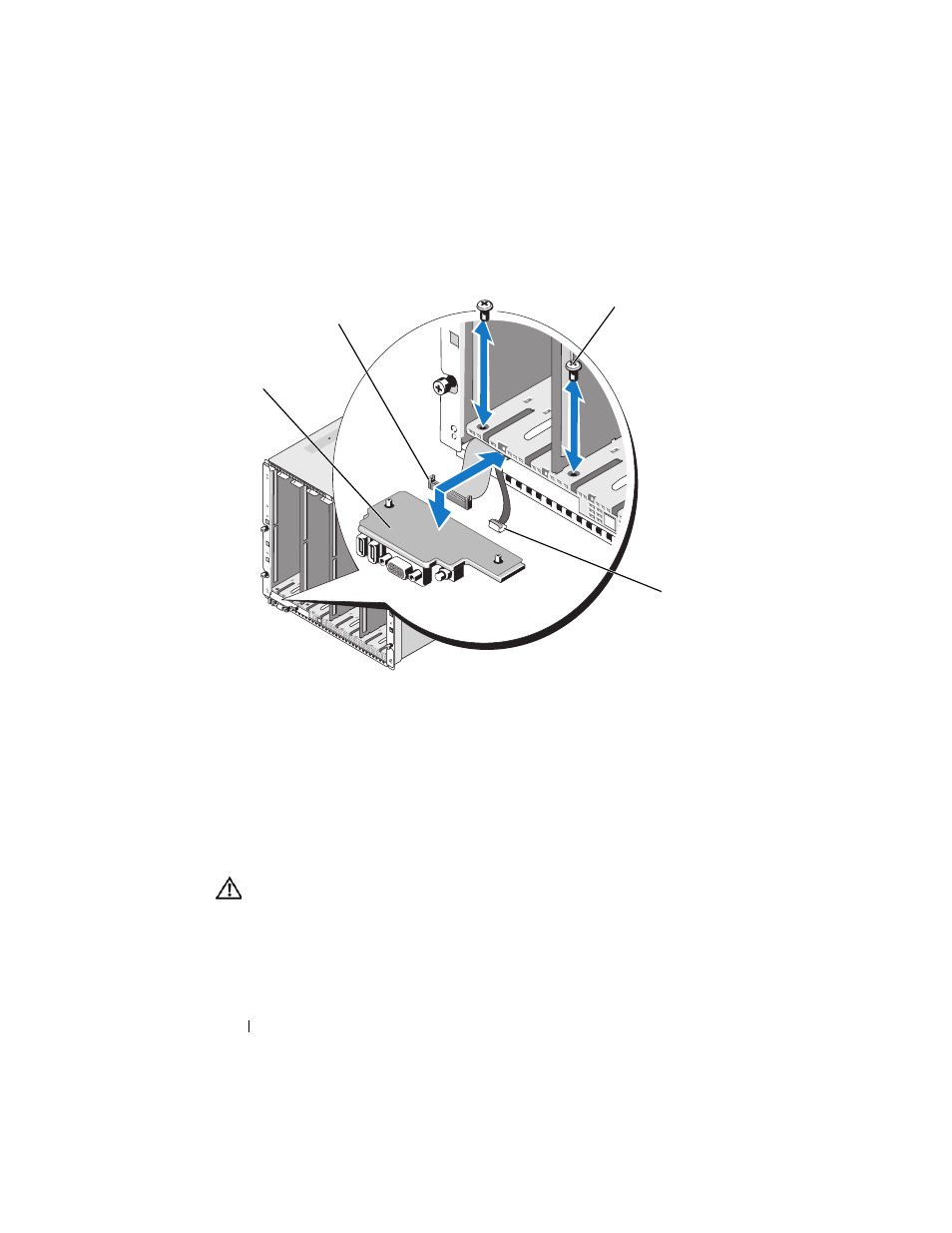

Figure 4-10. Removing and Installing the Control Panel
5 Press the catch at each end of the control-panel cable connector, and
remove the control-panel cable from the underside of the control panel.
6 Use the pull-tab to disconnect the LCD panel cable from the underside of
the control panel.
Installing the Enclosure Control Panel
CAUTION:
Only trained service technicians are authorized to remove the system
cover and access any of the components inside the system. Before you begin this
procedure, review the safety instructions that came with the system.
1 Connect the LCD panel cable to the new control panel.
2 Connect the control panel cable to the underside of the new control panel.
1 control panel 2 control-panel cable
3 screws (2) 4 LCD panel cable
