Installing Blade Components
125

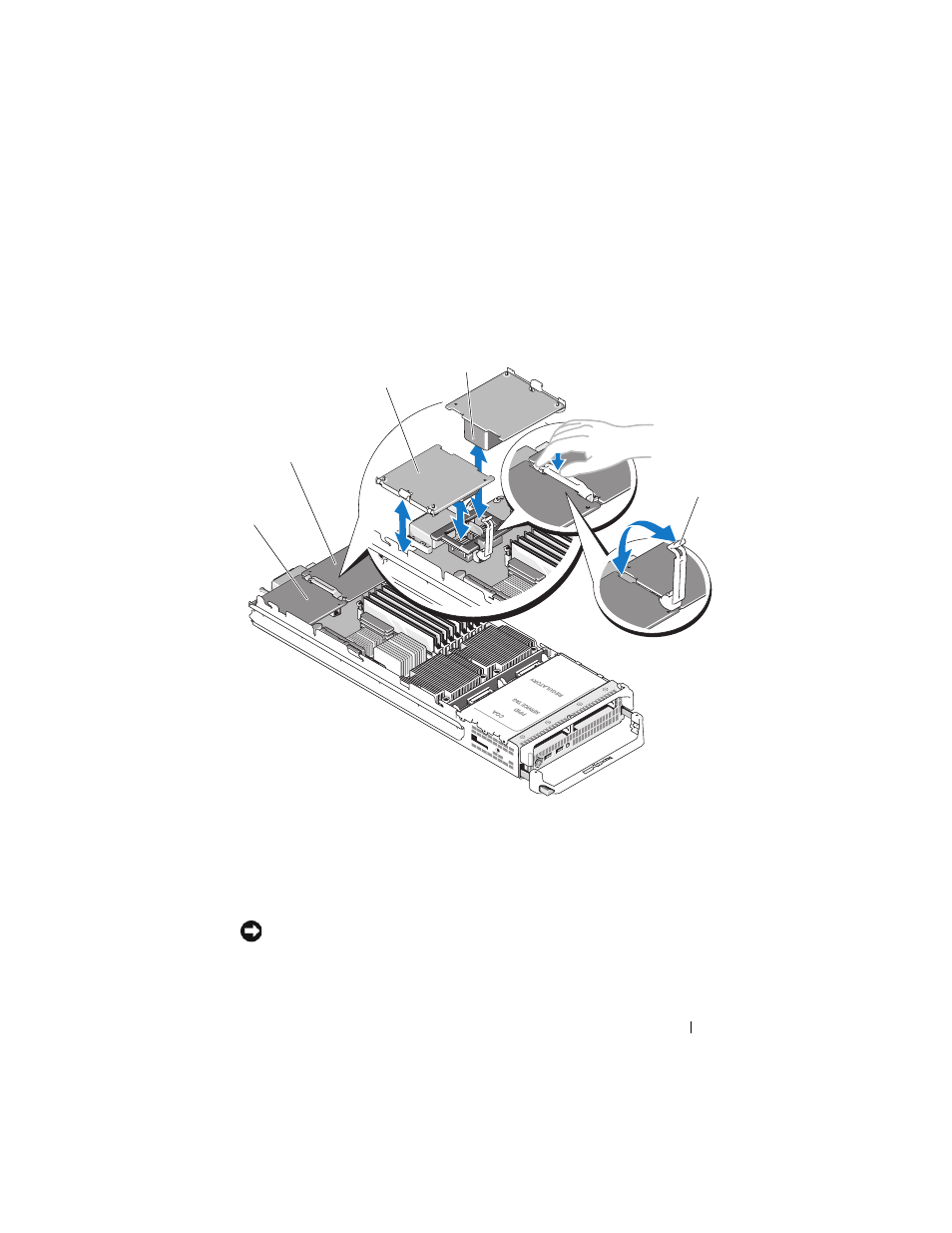

Figure 3-13. Installing and Removing a Mezzanine Card - Half-Height Blades
4 If present, remove the connector cover from the mezzanine card bay.
NOTICE:
Hold the mezzanine card by its edges only.
5 retention latch 6 mezzanine card connector
7 mezzanine card
1 Fabric C mezzanine card slot 2 Fabric B mezzanine card slot
3 mezzanine card 4 mezzanine card connector
5 retention latch
2
1
3
5
4
