System Board Information

209

PowerEdge M805 System Board

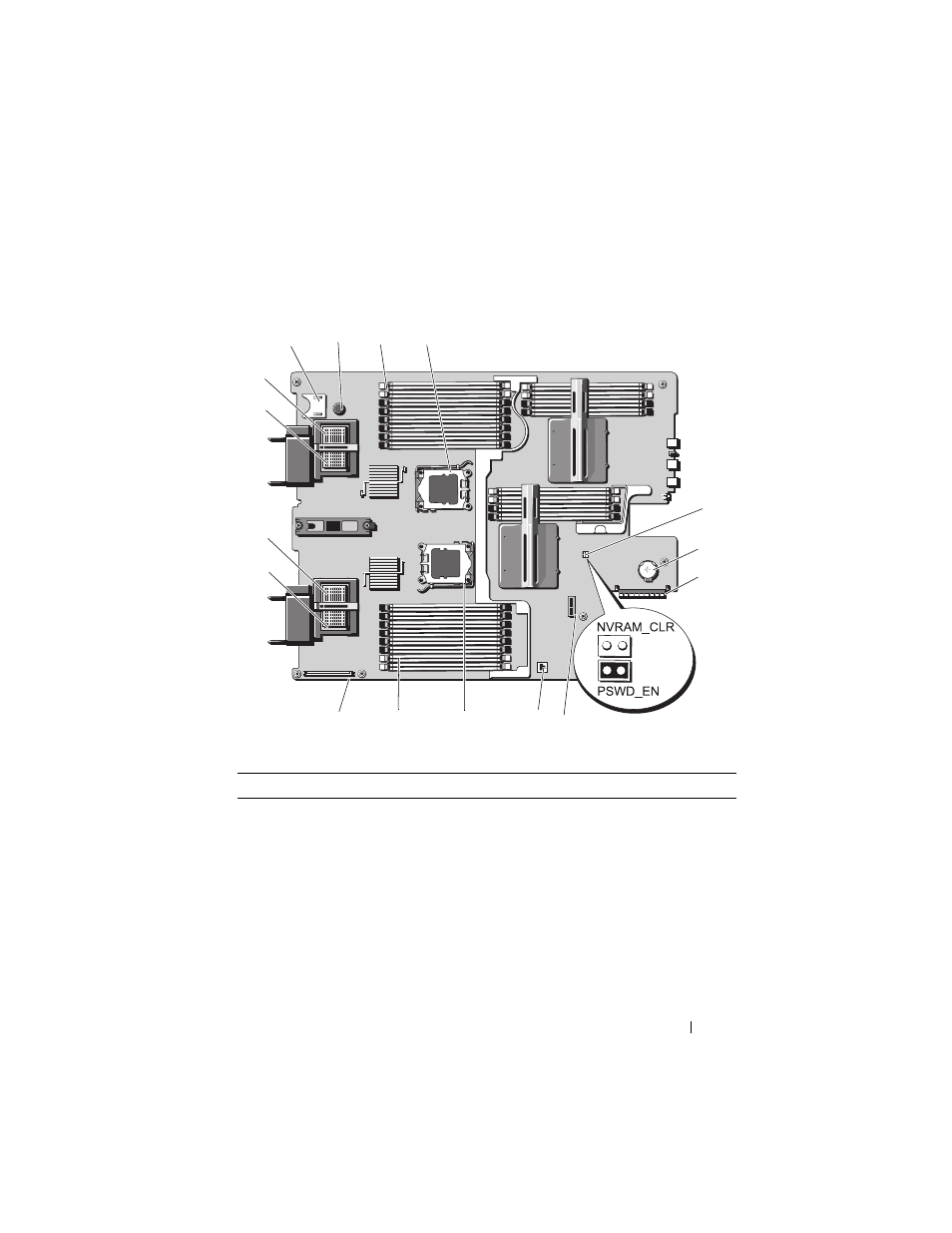

Figure 7-2.

PowerEdge M805 System Board Connectors

Table 7-6.

PowerEdge M805 System Board Connectors

Connector

Description

1

MEZZ4_FAB_B

Mezzanine card connector 4 Fabric B

2

SD card connector

3

system board retention pin

4

B1 – B8

memory modules B1 – B8

5

CPU2

Processor 2 socket

6

PSWD_EN,
NVRAM_CLR

system configuration jumpers

NOTE:

Access requires removal of system board. See

"Removing the System Board" on page 150.

1

16

18

2

3

4

5

7

6

9

10

13

11

12

15

14

8
