Installing Blade Components
147

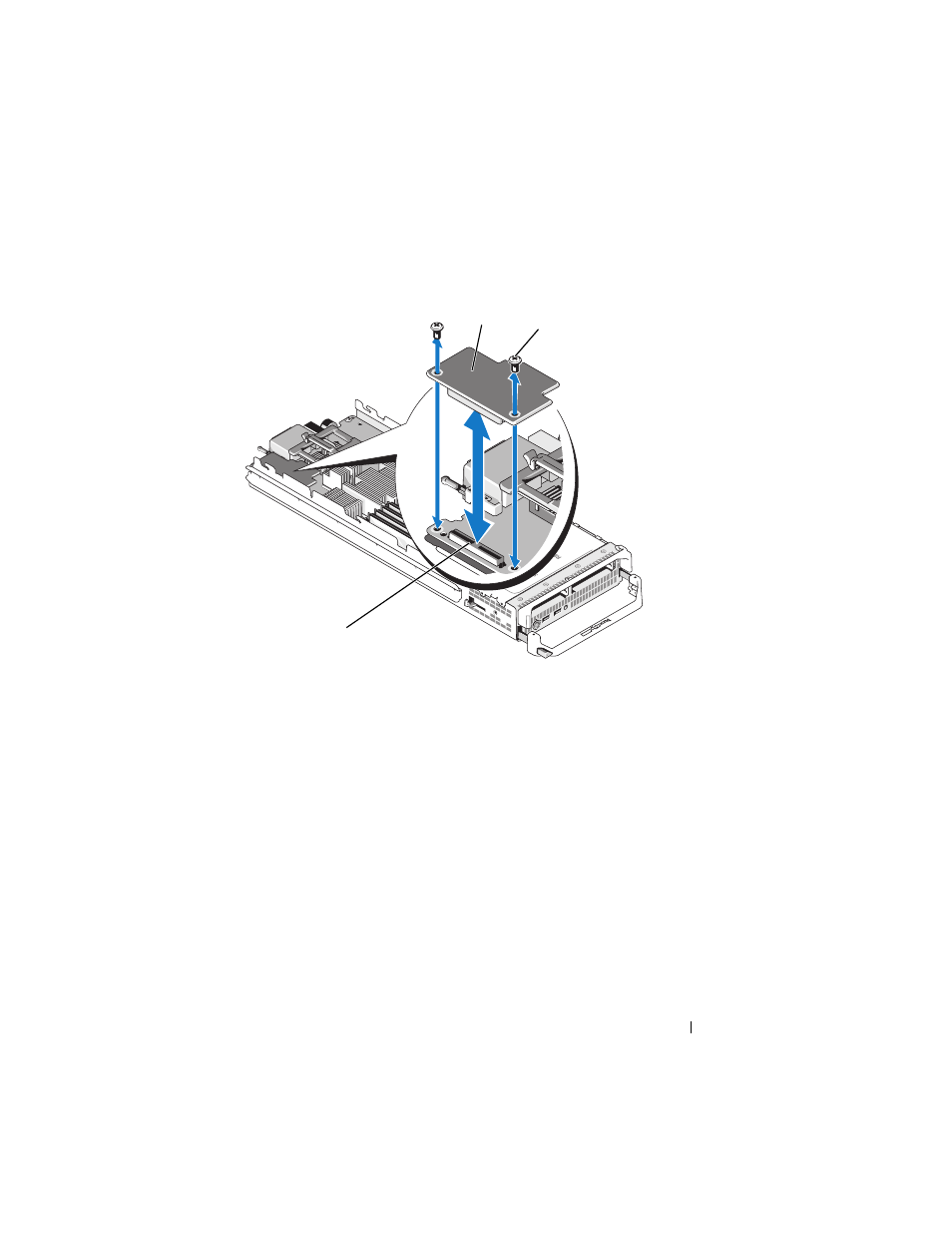

Figure 3-27. Removing and Installing a Video Controller Daughter Card (PowerEdge
M605 Shown)
4 To install a new video controller:
• If you are installing a video controller in a PowerEdge M600, align the
edge connector on the riser card with the connector on the system
board, then lower the riser card into place until the connector is fully
seated and the latch snaps into place. See Figure 3-26.
• If you are installing a video controller in a PowerEdge M605, align the
connector on the underside of the controller card with the connector
on the system board, then lower the card into place. Secure the card
with the two screws. See Figure 3-27.
1 video controller board 2 torx screws (2)
3 connector on system board
1
2
3
