System Board Information
213
PowerEdge M605 System Board

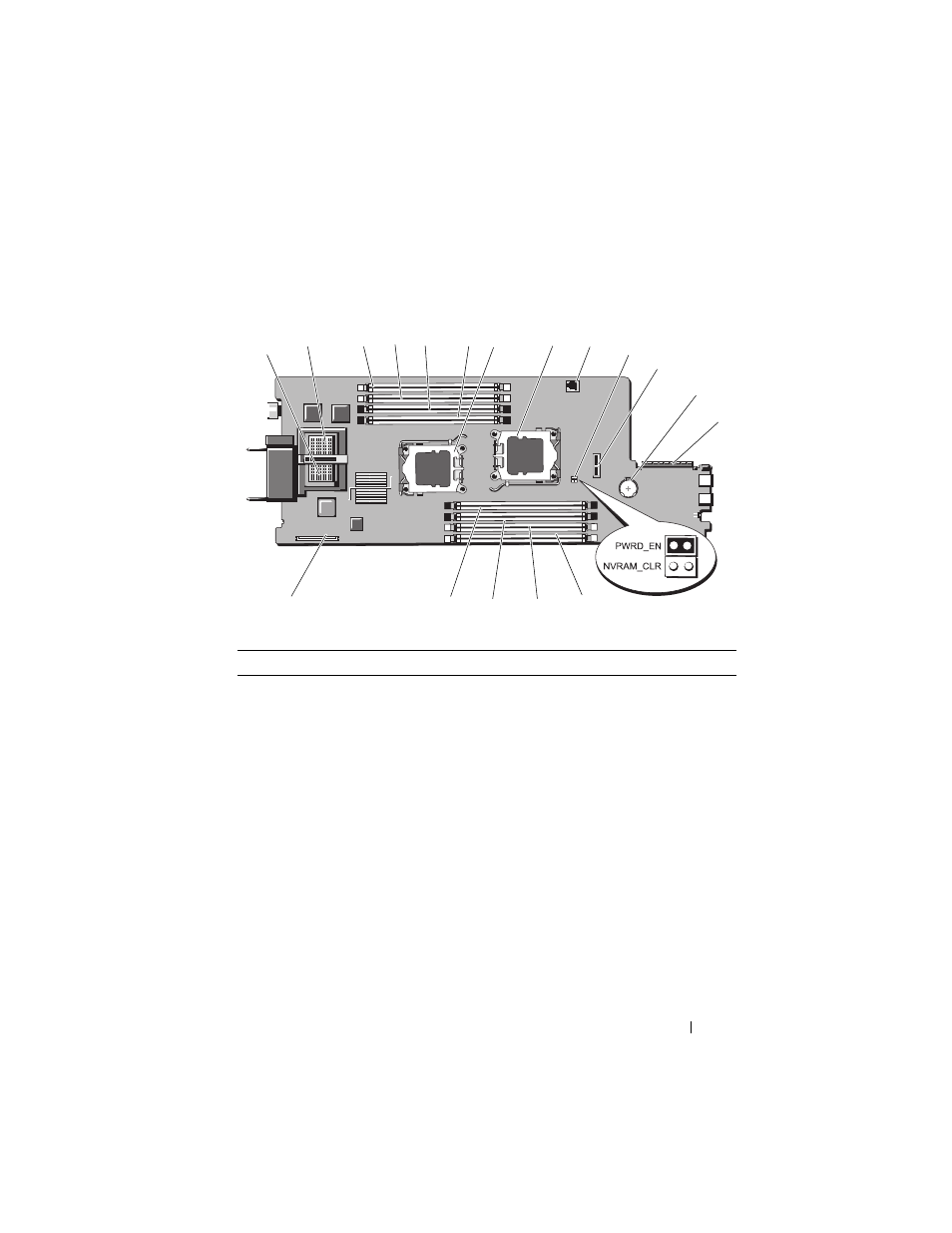

Figure 7-4. PowerEdge M605 System Board Connectors
Table 7-8. PowerEdge M605 System Board Connectors
Connector Description
1 Mezzanine card connector - Fabric C
2 Mezzanine card connector - Fabric B
3 A1 Memory module connector, slot A1
4 A2 Memory module connector, slot A2
5 A3 Memory module connector, slot A3
6 A4 Memory module connector, slot A4
7 CPU1 Processor 1 socket
8 CPU2 Processor 2 socket
9 TOE_KEY Hardware key socket for enabling the integrated NIC
TOE/iSCSI feature
10 PWRD_EN,
NVRAM_CLR
Configuration jumpers
11 SASBKPLN Hard-drive backplane connector
2
1
3 4 5 6 7 8 9
10
11
12
14 15 16 17
13
18
