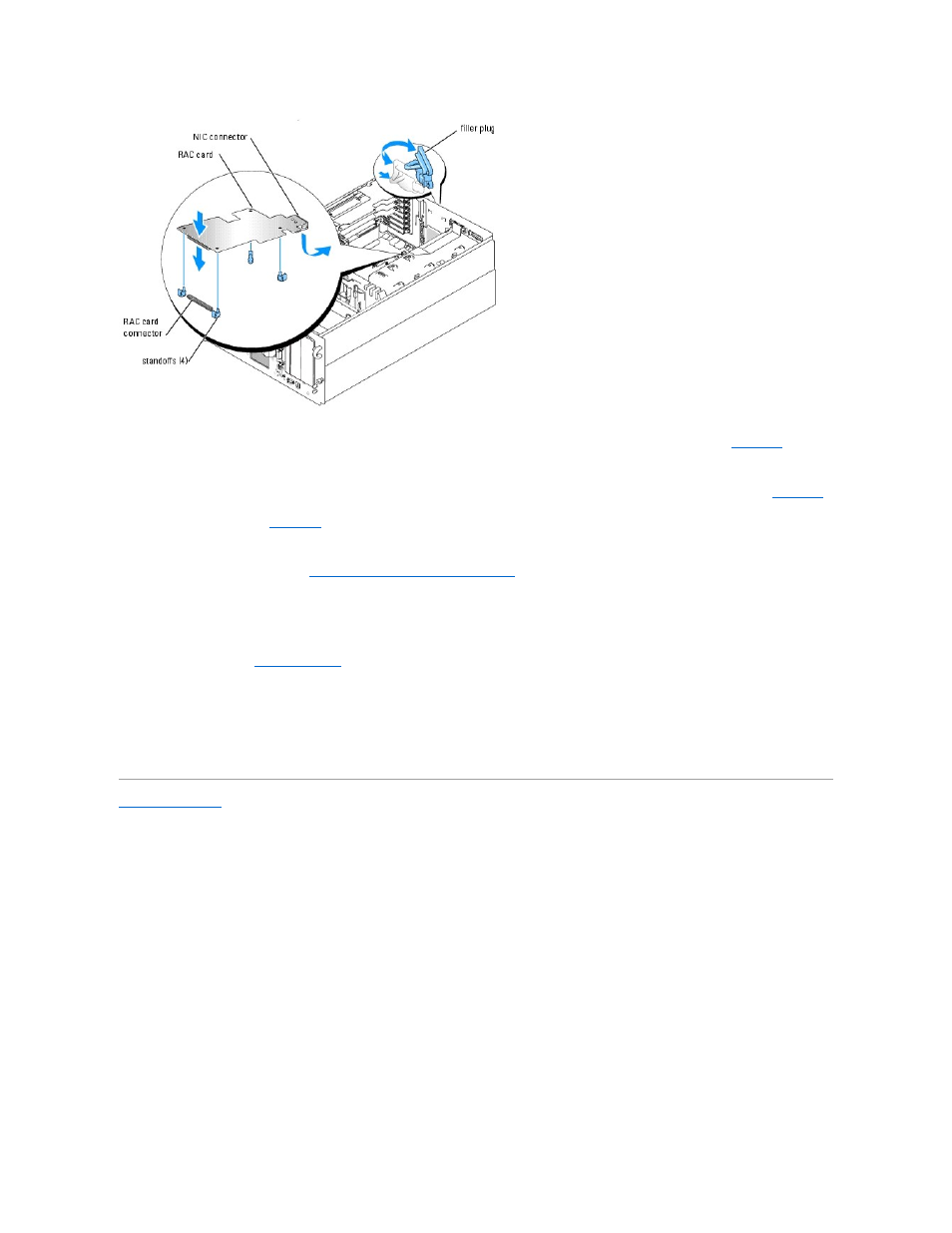

7. Angle the RAC card so that its NIC connector inserts through the back-panel RAC card opening, and then straighten the card. See Figure 6 -20 .
8. Install the card:
a. Hold the card by its edges with the holes in the corners of the card aligned with the four plastic standoffs on the system board. See Figure 6 -20 .
b. Carefully press the left end of the card onto the RAC card connector on the system board, until the clips on the plastic standoffs snap over that
end of the card. See Figure 6 -20 .
c. Press down on the other end of the card until the remaining two standoffs fit over the card edge.
9. Reinstall the back fan bracket. See " Removing and Replacing the Back Fan Bracket ."
10. Reinstall the two memory module fans.
11. Reinstall the memory cooling shroud.
12. Close the system. See " Closing the System " in "Troubleshooting Your System."
13. Reconnect the system and peripherals to their power sources, and turn them on.
14. Enter the System Setup program and verify that the setting for the RAC card has changed to reflect the presence of the card. See "Using the System
Setup Program" in your User's Guide.
See the RAC card documentation for information on configuring and using the RAC card.
