Removing the Center Fan Bracket
1. Open the system. See " Opening the System " in "Troubleshooting Your System."
2. Remove the processor fans and expansion card fans. See " Removing a Processor Fan " and " Removing an Expansion-Card Fan ."
3. Remove the expansion-card cage. See " Removing the Expansion-Card Cage ."
4. Press the release tab on each end of the center fan bracket, then slide the bracket straight up and out of the system. See Figure 6 -5 .

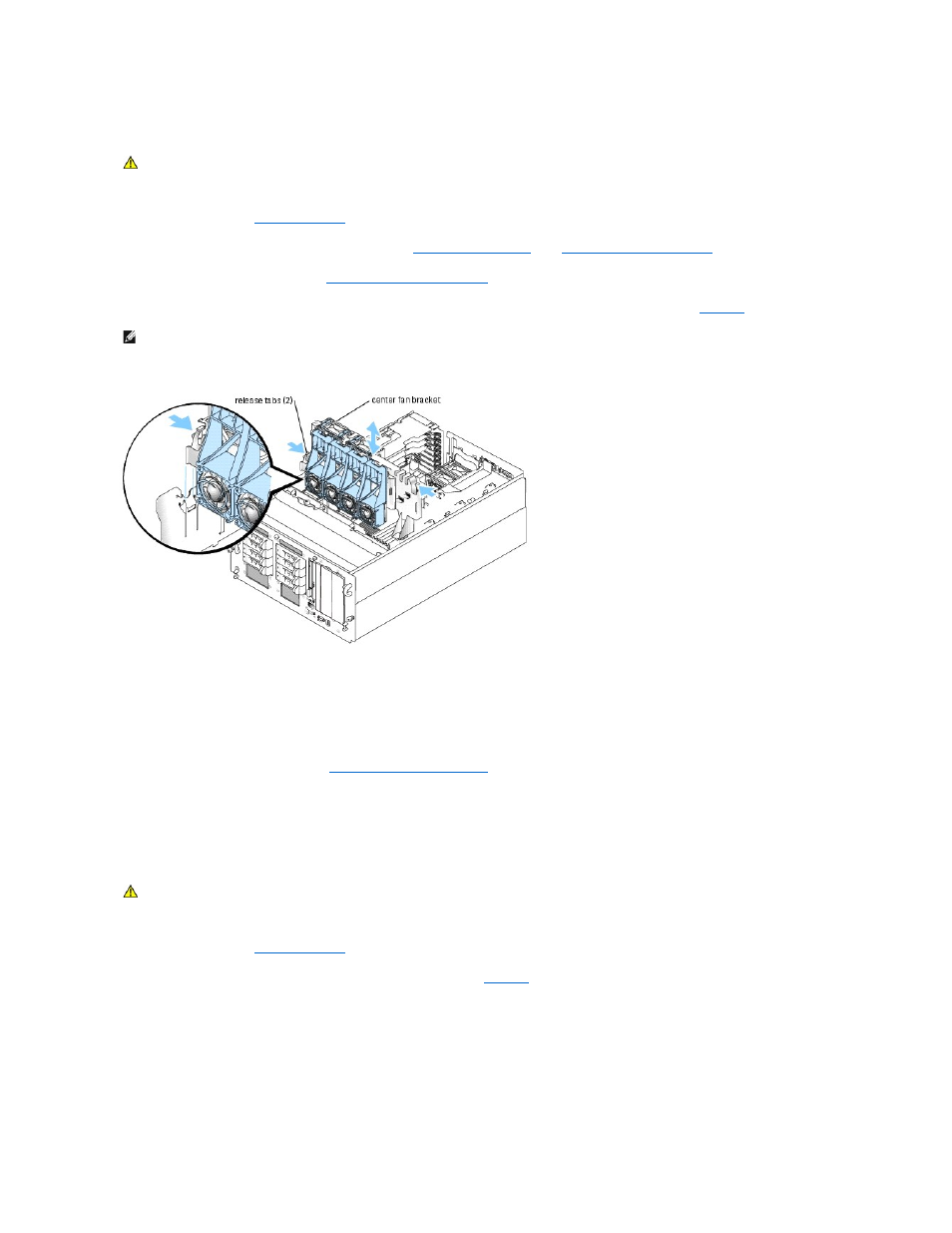

Figure 6-5. Installing and Removing the Center Fan Bracket
Replacing the Center Fan Bracket
1. Slide the bracket into the system. Ensure that the power connector on the bracket is aligned with the corresponding connector on the system board.
2. Reinstall the expansion-card cage. See " Installing the Expansion-Card Cage ."
3. Replace the processor fans and expansion-card fans.
Removing a Memory Module Fan
1. Open the system. See " Opening the System " in "Troubleshooting Your System."
2. Compress the two latches on the top of the fan, then remove the fan. See Figure 6 -6 .
Figure 6-6. Installing and Removing a Memory Module Fan
CAUTION: Only trained service technicians are authorized to remove the system cover and access any of the components inside the system. See
your Product Information Guide for complete information about safety precautions, working inside the computer, and protecting against
electrostatic discharge.
NOTE: When reinstalling the center fan bracket, ensure that the power connector on the bracket is aligned with the corresponding connector on the
system board.
CAUTION: Only trained service technicians are authorized to remove the system cover and access any of the components inside the system. See
your Product Information Guide for complete information about safety precautions, working inside the computer, and protecting against
electrostatic discharge.
