SCSI Backplane Connectors
for the location and description of the connectors on the back of the SCSI backplane board.

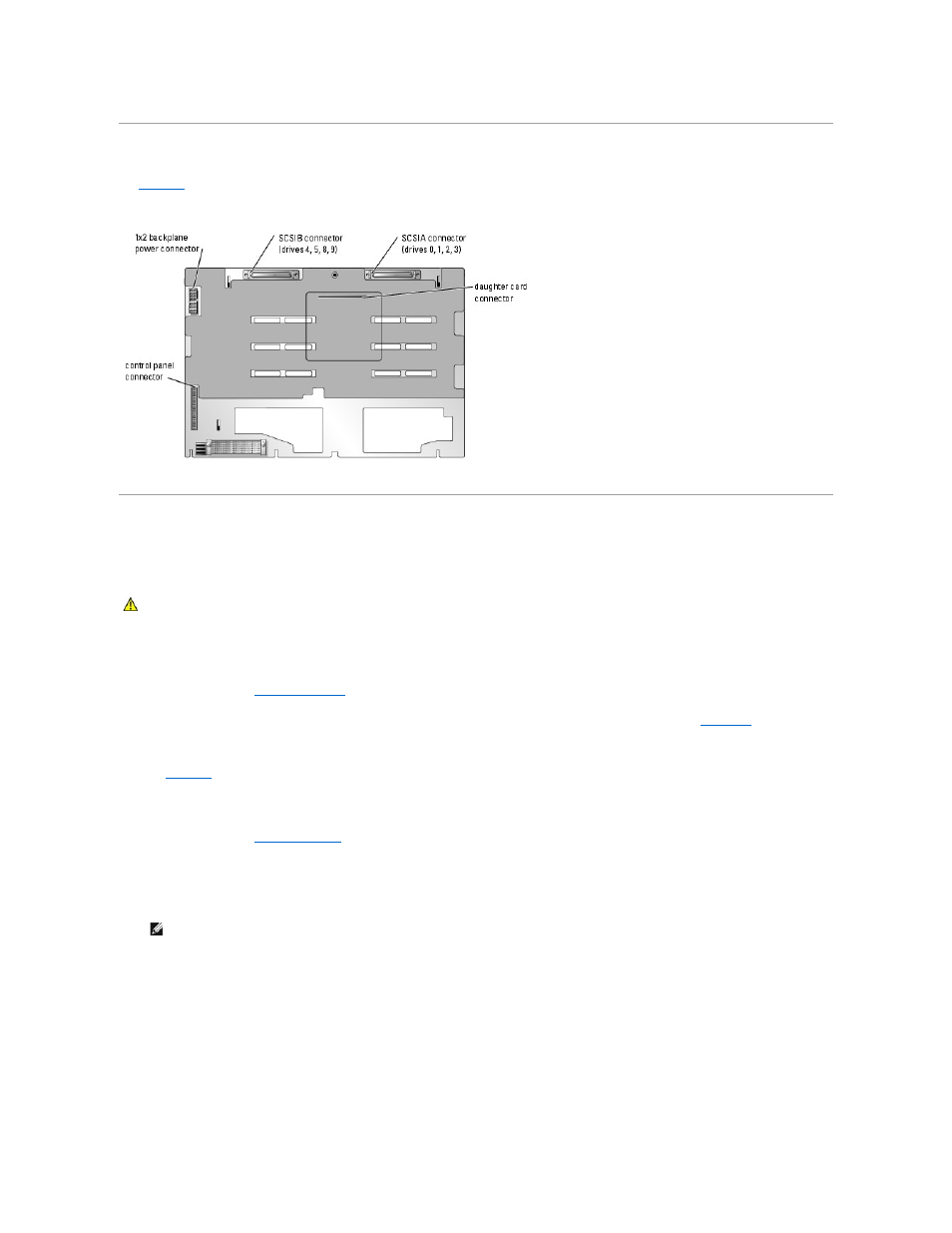

Figure A-5. Connectors on Back of SCSI Backplane
Disabling a Forgotten Password
The system's software security features include a system password and a setup password, which are discussed in detail in "Using the System Setup Program"
in your User's Guide. The password jumper enables these password features or disables them and clears any password(s) currently in use.
1.
Turn off the system and attached peripherals, and disconnect the system from the electrical outlet.
2.
Open the system. See "
Opening the System
" in "Troubleshooting Your System."
3.
Remove the memory cooling shroud by lifting the release latch and sliding the shroud towards the front of the system. See
Figure 6
-16
.
4.
Remove the password jumper plug.
to locate the password jumper on the system board.
5.
Replace the memory cooling shroud.
6.
Close the system. See "
Closing the System
" in "Troubleshooting Your System."
7.
Reconnect the system to the electrical outlet, and turn on the system.
The existing passwords are not disabled (erased) until the system boots with the password jumper plug removed. However, before you assign a new
system and/or setup password, you must install the jumper plug.
8.
Turn off the system, including any attached peripherals, and disconnect the system from the electrical outlet.
9.
Open the system.
10.
Remove the memory cooling shroud.
11.
Reinstall the password jumper plug in its original position to enable the password protection feature.
12.
Reinstall the memory cooling shroud.
CAUTION:
Only trained service technicians are authorized to remove the system cover and access any of the components inside the system. See
your Product Information Guide for complete information about safety precautions, working inside the computer, and protecting against
electrostatic discharge.
NOTE:
If you assign a new system and/or setup password with the jumper plug still removed, the system disables the new password(s) the next
time it boots.
