Dell ™ Latitude™ XT2 XFR Service Manual
Page 70 of 94 Version A00-01
WARNING: Before working inside your XT2 XFR, read the safety information that
shipped with your XT2 XFR. For additional safety best practices information, see the
Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

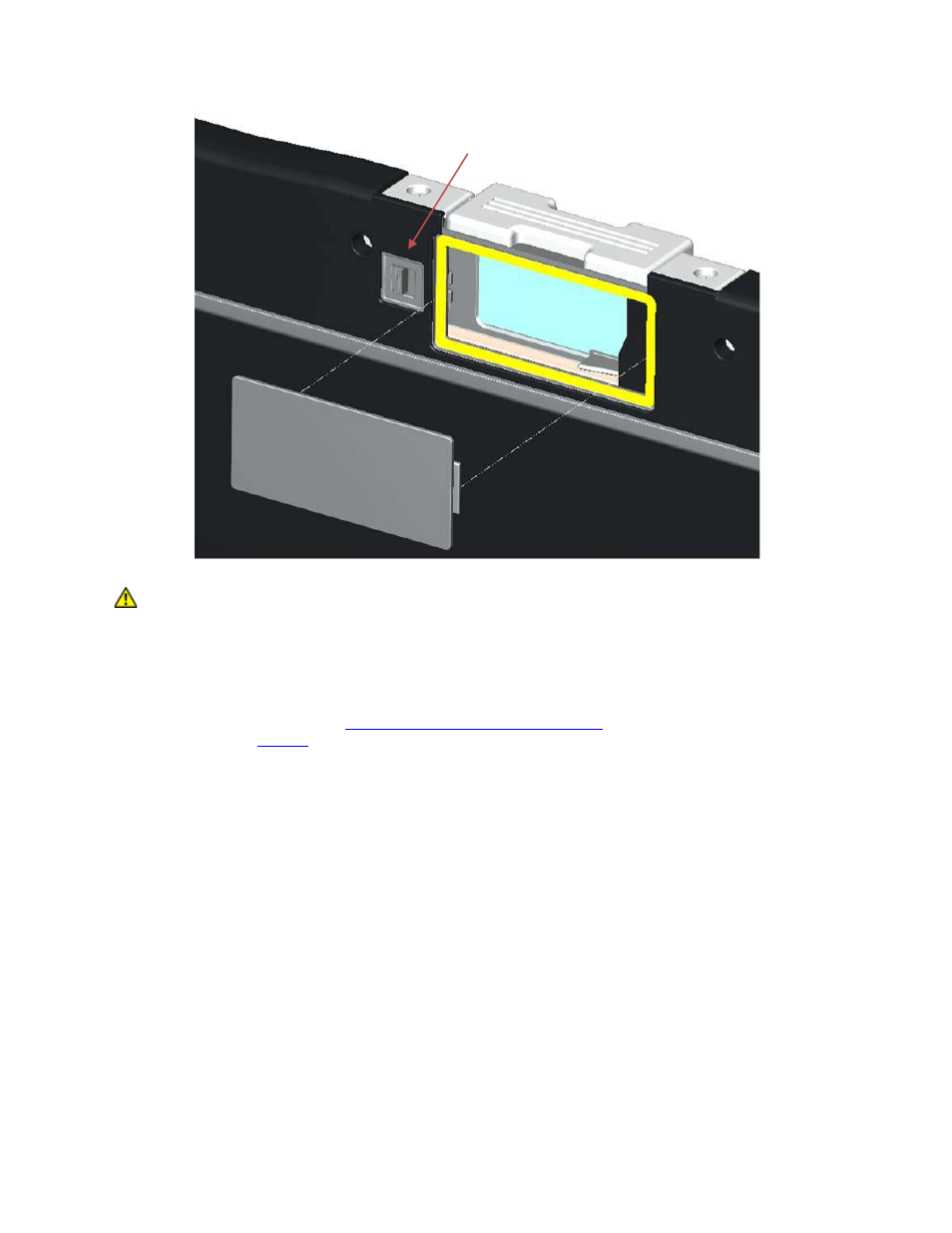

4.22.1 Removing the USB Module Cover
1. Follow the procedures in Before Working Inside Your XT2 XFR .
2. Remove the battery from the XT2 XFR.
3. Unlock the cover from the LCD bezel.
4. Remove the cover from the Hot Swappable Module bay.
4.23 GPS Module (OPTIONAL)
Unlock Position
