4.10.2 Installing the Coin-Cell Battery

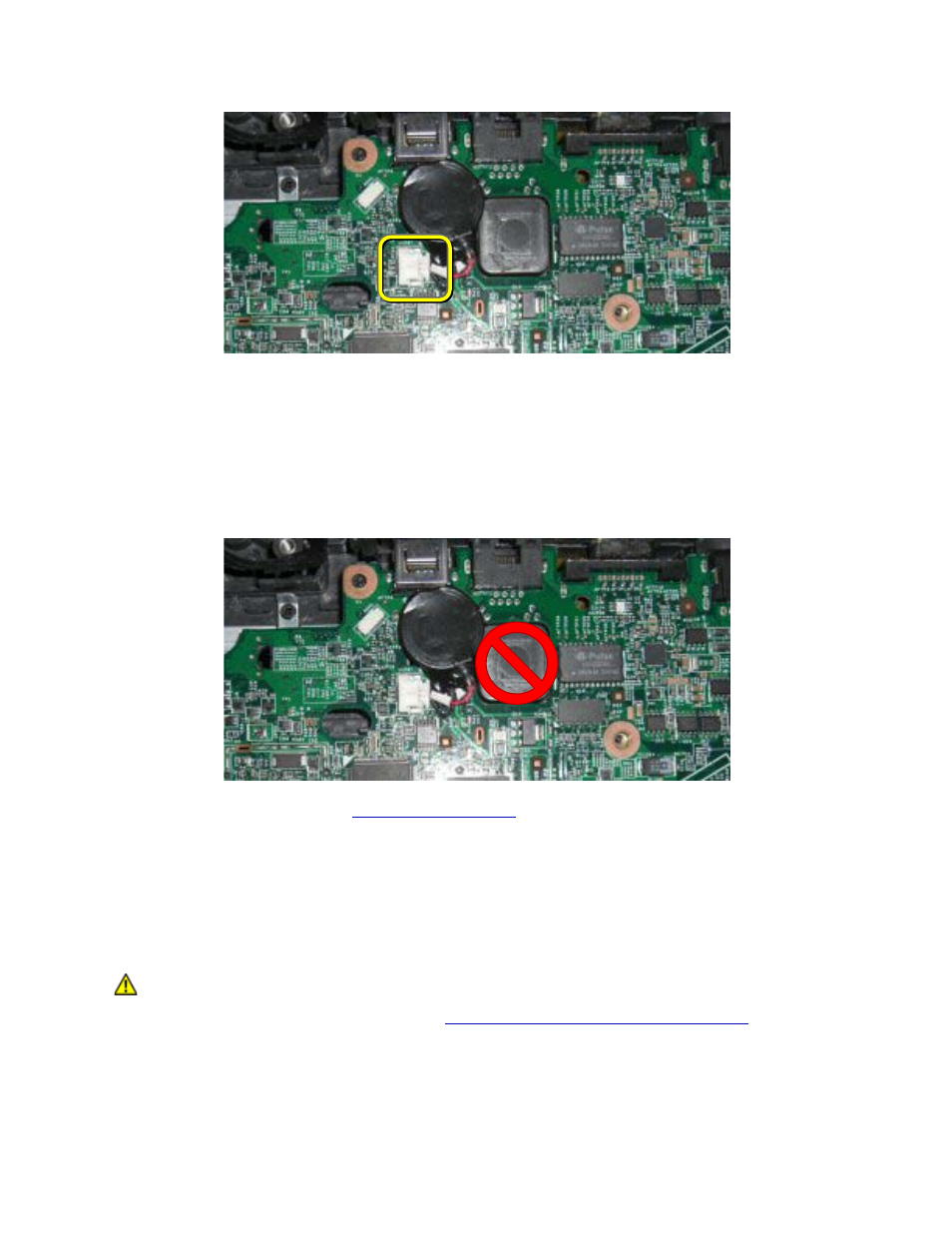

1. Connect the coin-cell battery to the system board.
2. Place the tape side of the battery to the left of the chassis pad directly in front of the USB
connector location. DO NOT place battery on chassis pad.
3. Follow the procedures for Installing the palm rest .
4.11 USB Interface Board
4.11.1 Removing the USB Interface Board
WARNING: Before working inside your XT2 XFR, read the safety information that
shipped with your XT2 XFR. For additional safety best practices information, see the
Regulatory Compliance Homepage at
www.dell.com/regulatory_compliance .
