Dell ™ Latitude™ XT2 XFR Service Manual
Page 63 of 94 Version A00-01

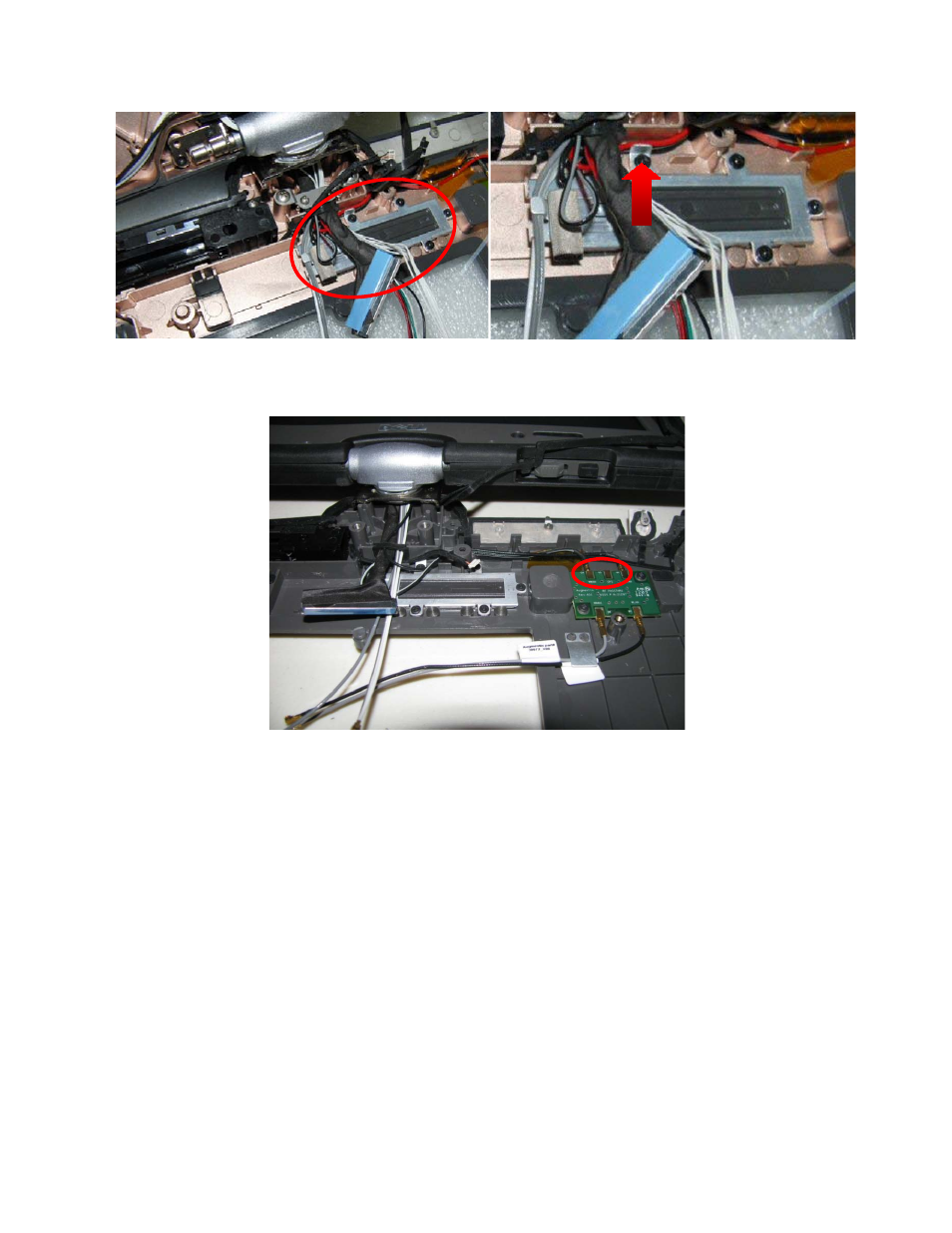

7. Remove the two (M2 x 3-mm) screws holding the RF Passthru board to the chassis and lift the
RF passthru board up.
8. Disconnect the back Black/Grey, Red, and Black antenna cables from the RF Passthru board.
9. Lift the cables for the display assembly out of the chassis area and remove the display
assembly.
4.18.2 Installing the Display Assembly
1. Set the display assembly behind the system and pull all cables to align with the center of the
chassis.
2. The black/grey, red, and black cables with the barrel connector on the ends connect onto the
back side of the RF Passthru board. The RF Passthru board is labeled to assist with connecting
the cables to the appropriate locations.
