Dell Latitude XT2 XFR (Late 2009) - Manual (Page 69)

Dell ™ Latitude™ XT2 XFR Service Manual
Page 69 of 94 Version A00-01

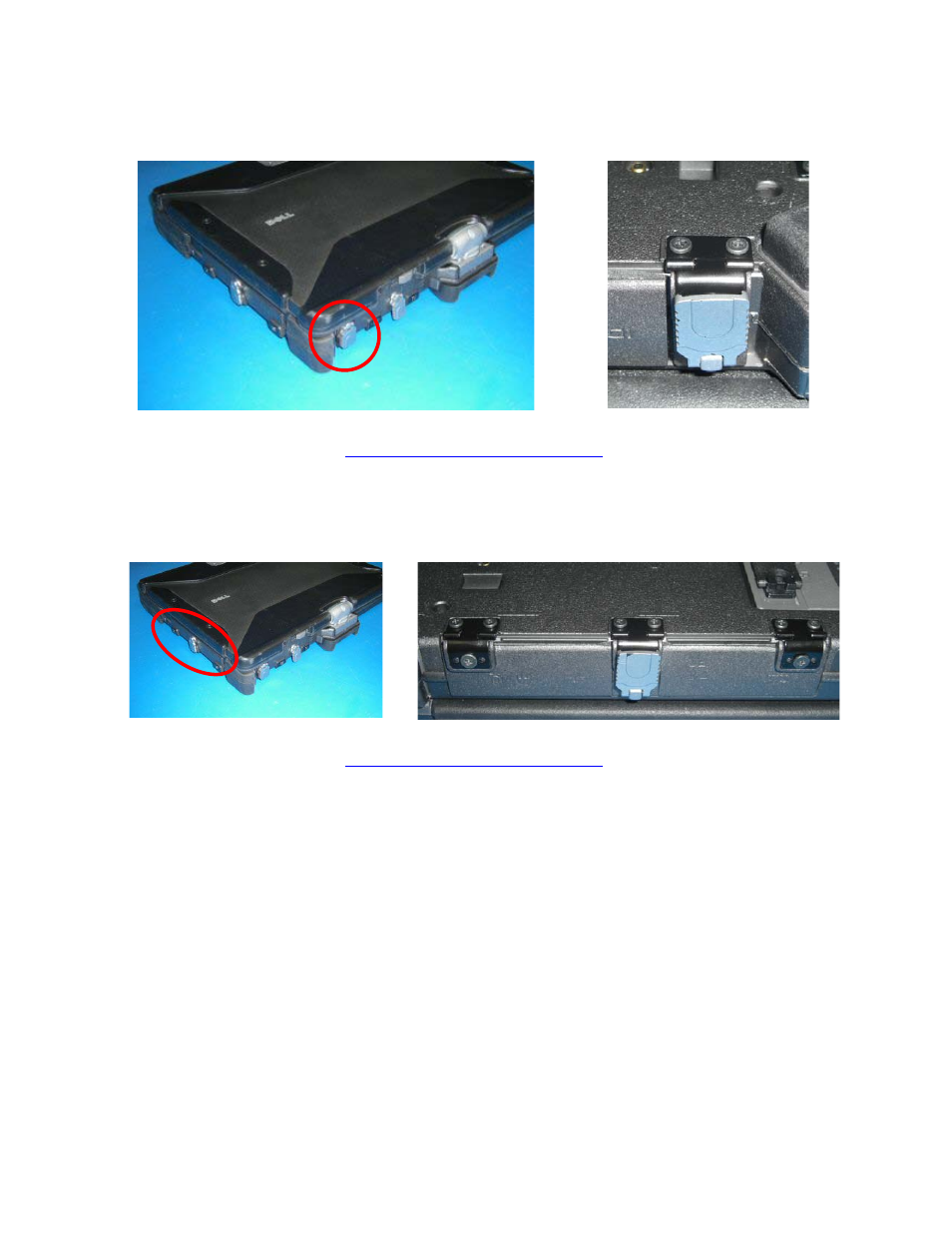

4.21.3 Removing the Power Door
1. Follow the procedures in Before Working Inside Your XT2 XFR .
2. Remove the two(2.5 x 5-mm) screws from the door hinge connected to the bottom chassis.
3. Rotate the pull tab to release the lock and open the door to remove.
4.21.4 Removing the Audio/Card Socket Door
1. Follow the procedures in Before Working Inside Your XT2 XFR .
2. Remove the two(2.5 x 5-mm) screws from the door hinge connected to the bottom chassis.
3. Rotate the pull tab to release the lock and open the door to remove.
4.22 USB Module Bay Cover
