Dell ™ Latitude™ XT2 XFR Service Manual
Page 27 of 94 Version A00-01

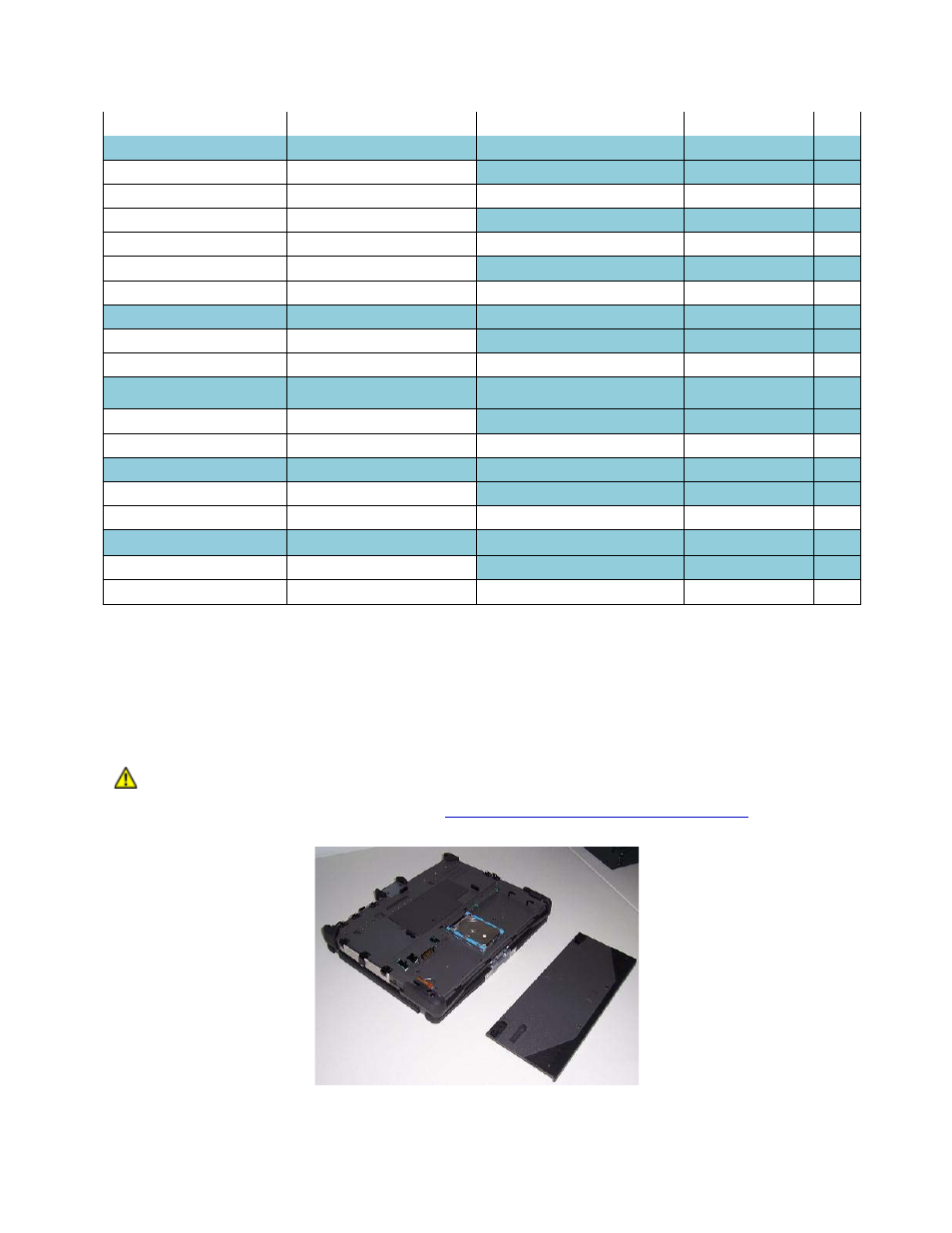

custom Thread Forming
Base to Palm rest
1 under the battery area
M2.5 x 5 21106-01 7
2 under the battery area
M2.5 x 8 21106-02 1
3 bottom side screws
M2.5 x 8 21106-02 9
Battery Module
1 Battery module assy
M2 x 3 21106-00 4
KEYPAD / HINGE
COVER
1 Captive screw-M2
custom 40190 4
Dimms Door
1 Captive screw-M2
custom 40190 4
Latch Palm Rest
1 shoulder screw, Captive
custom 40301 2
4 Adding and Replacing Parts
4.1 Main Battery
WARNING: Before working inside your XT2 XFR, read the safety information that
shipped with your XT2 XFR. For additional safety best practices information, see the
Regulatory Compliance Homepage at
www.dell.com/regulatory_compliance .
