Dell ™ Latitude™ XT2 XFR Service Manual
Page 56 of 94 Version A00-01

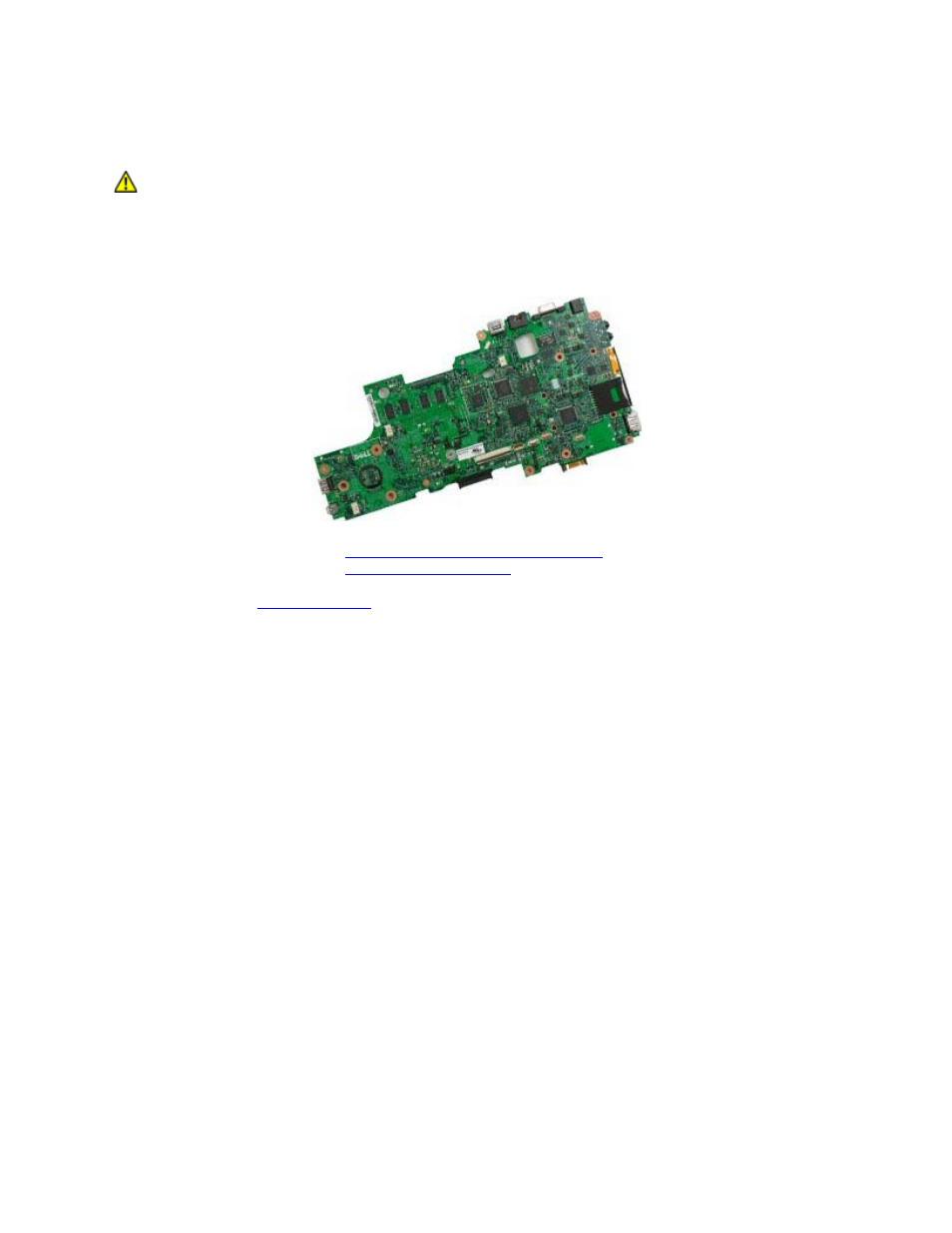

4.16 System Board
WARNING: Before working inside your XT2 XFR, read the safety information that
shipped with your XT2 XFR. For additional safety best practices information, see the
Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
4.16.1 Removing the System Board
1. Follow the procedures in Before Working Inside Your XT2 XFR .
2. Follow the procedures in removing the palm rest before continuing.
3. From the inside of the XT2 XFR, disconnect the display cable from the system board.
4. Remove the
coin-cell battery from the XT2 XFR.
5. Disconnect the speaker cable from the system board.
6. Disconnect the Stylus bay connector from the system board.
7. Disconnect the video connector from the system board.
8. Remove the sniffer switch cable from the system board.
9. Remove the two screws securing the system board to the bottom chassis and white plastic
bracket.
