Dell ™ Latitude™ XT2 XFR Service Manual
Page 58 of 94 Version A00-01

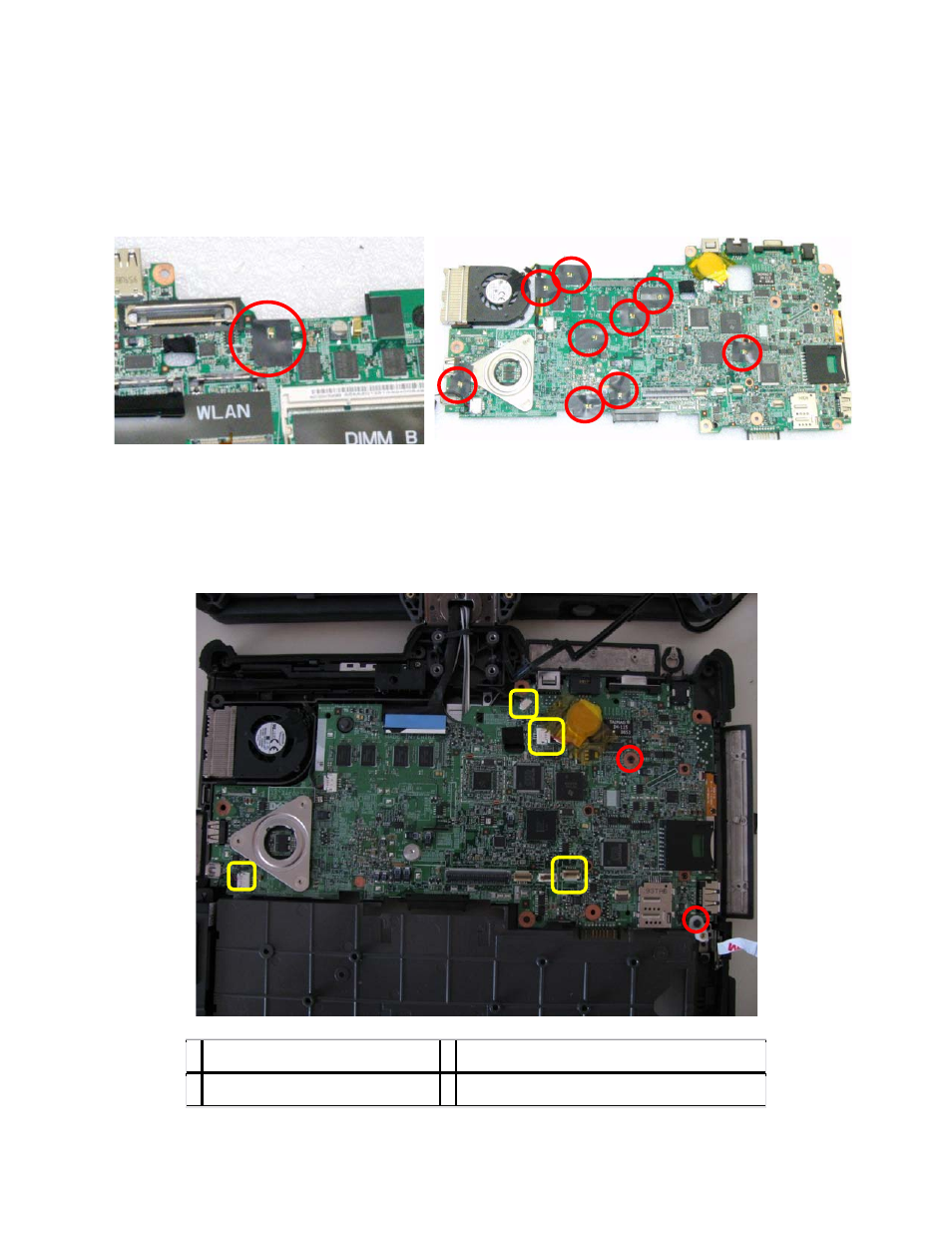

4.16.2 Installing the System Board
1. Examine the system board to make sure there are nine (9) insulation pads set around the
grounding clips on the palmrest side of the system board, and one (1) on the processor side of
the system board near the docking connector.
2. Place the system board into the chassis and seat the fan cable grommet into the grommet
channel.
3. Install the screws (1 – 2.5 x 5-mm), (1- 2.5 x 8-mm with bracket) securing the system board
to the chassis.
1 Speaker connection 2 Stylus connection
3 Coin-cell battery connection 4 WiFi sniffer connection
1
2
3
4
5
6
