Dell ™ Latitude™ XT2 XFR Service Manual
Page 62 of 94 Version A00-01

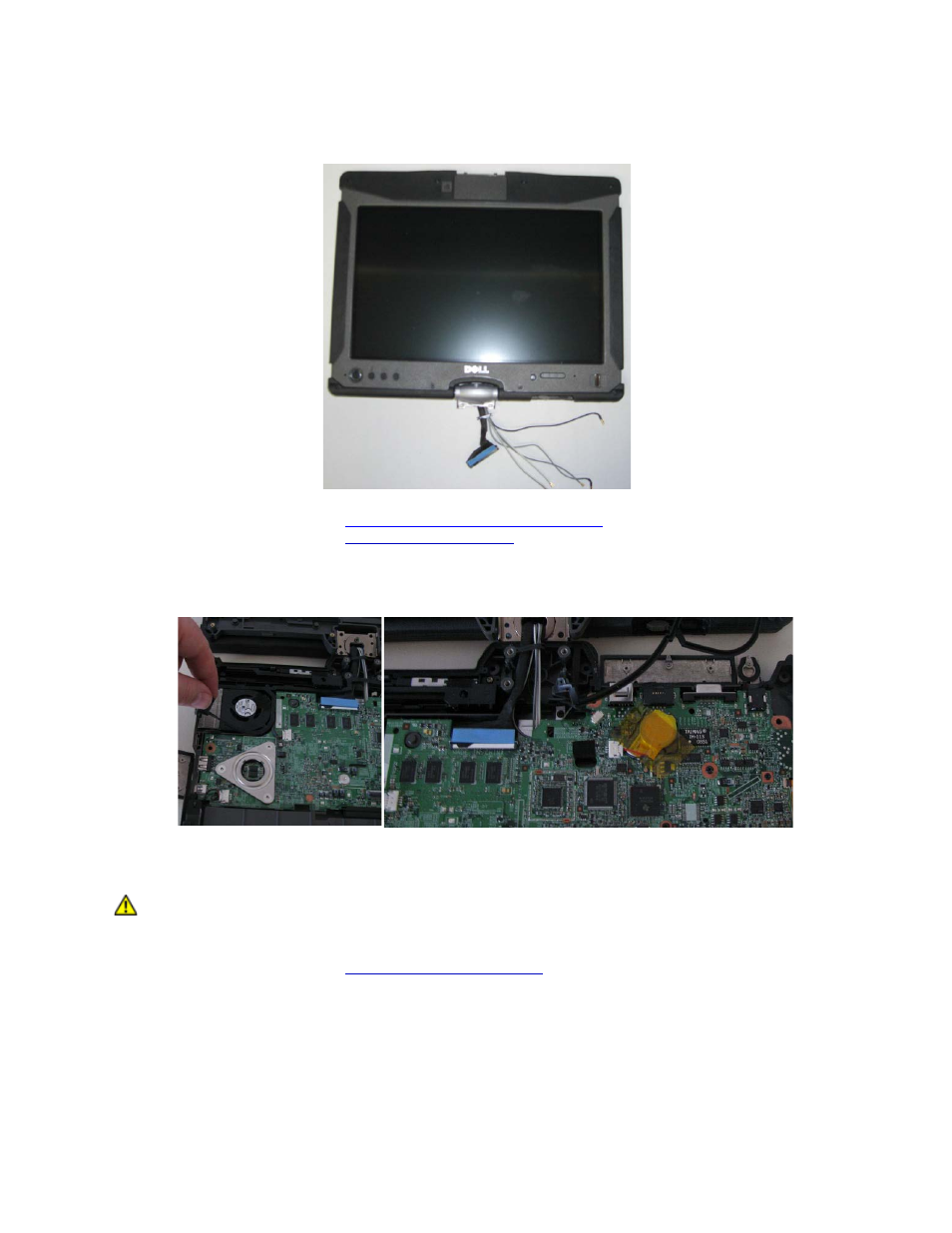

4.18.1 Removing the Display Assembly
1. Follow the procedures in Before Working Inside Your XT2 XFR .
2. Follow the procedures in Removing the palm rest before continuing.
3. From the inside of the XT2 XFR, disconnect the display cable from the system board.
4. Carefully lift the gasket surround from the fan housing area and lift the gasket from over the
video/antenna cable socket.
WARNING: Do NOT cut or remove the gasket material as this will cause the unit to not
seal against water intrusion.
5. Follow the procedures in Removing the system board before continuing.
6. Remove the rear two Dock Door Screws along with the side screw and lightly loosen the front
2 screws to allow the cables to pull out of the retention tab on the dock door bracket.
