Shutdown 68

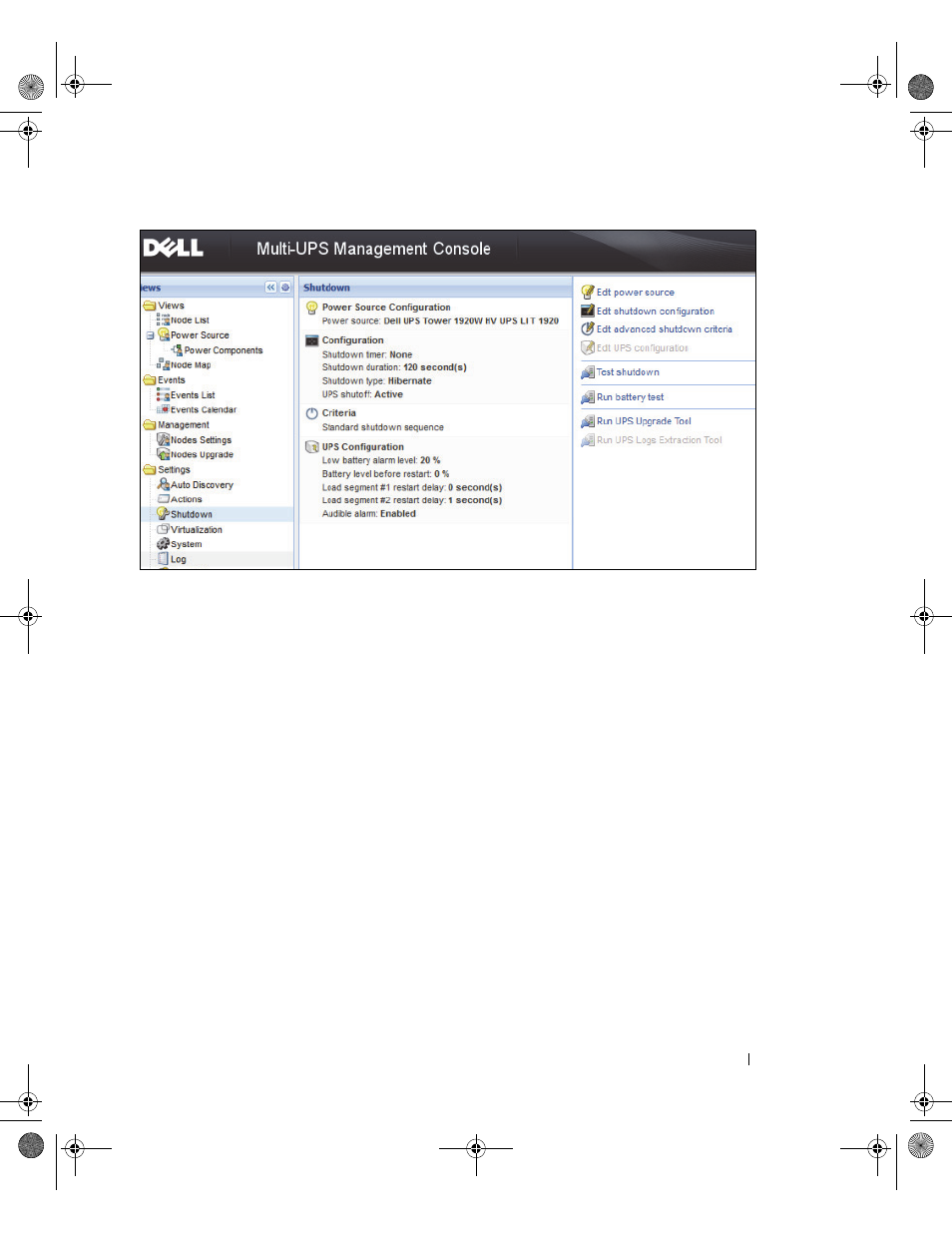

Figure 50. Configuration Buttons in Right-side Panel
The following configuration buttons are provided on the right-side panel (see Figure 50):
• Edit power source
• Edit shutdown configuration
• Edit advanced shutdown criteria
• Edit UPS configuration
• Test shutdown (see Figure 51)
• Run battery test: Launch a battery test if the following conditions are true :
– Battery must be in rest mode.
– The load must be over 25%.
• Run UPS Upgrade Tool: Use if the following conditions are true :
– A power source has been set up in the software.
– The Dell UPS Upgrade tool is installed on the operating system.
