5-6
Troubleshooting
5
• All replaceable parts are:
• Present
• Properly aligned
• Installed securely
• Installed on the appropriate site
• The correct part for the system
• Properly configured, if configurable (such as HDD jumper)
• Appear undamaged
• Chassis and contents have not been tampered with (no unauthorized
additions or changes have been made)
• Chassis does not contain any foreign objects
Chassis
• Motherboard, including components and traces, appears undamaged
and no foreign objects are evident
• CPU is present, well-seated, and appears undamaged
• CPU cooling unit is well-aligned and firmly attached
• Each fan required (including fan cable) is well-positioned (not upside
down), installed in the correct connector, and appears undamaged
• Boards required on the motherboard are present, well-seated, and in
the correct slots
• Each DIMM is well-seated
• Battery is installed
• BIOS is well seated
Motherboard (with Restore/Update CD and
single-use dongle), page 4-22
• DIMM(s) is well-seated
• DIMM edge connectors are not oxidized
DIMM(s) for ColorPASS, page 4-34
Each board required is:
• Present
• Installed in the correct slot
• Well-seated
• Appears undamaged
Required cables (if applicable) are:
• Present
• Firmly connected in the correct connectors
• Appear undamaged
Copier interface board, page 4-17

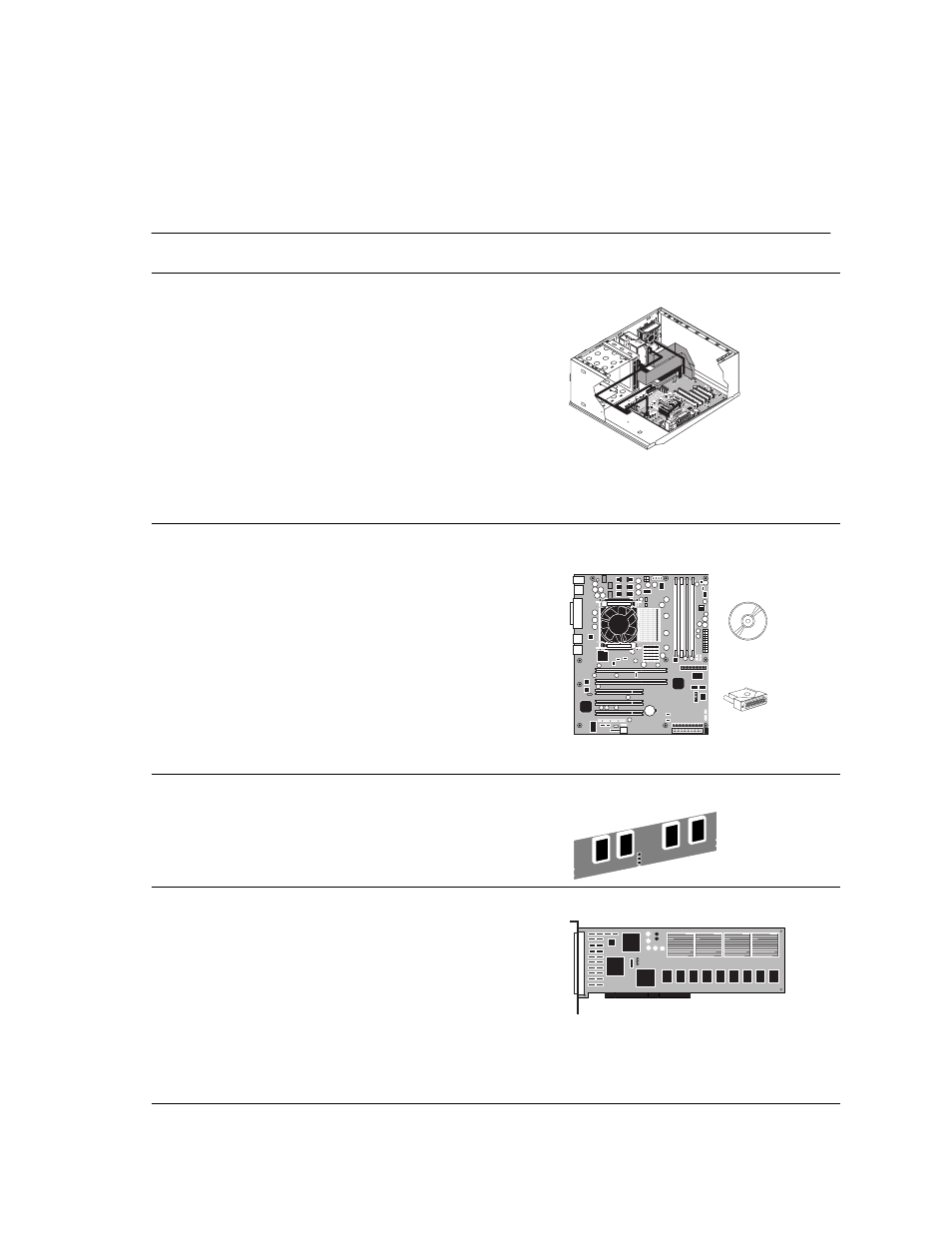

T
ABLE
5-1
Verifying the system
Conditions to verify
Part and additional page references
