M Y P RESARIO —G ETTING S TARTED AND B EYOND S ETTING U P Y OUR C OMPUTER 2-3
Your Presario
7000 Series at
a Glance
Before you begin, you’ll
want to become familiar
with the components of
your Compaq Presario
7000 series.
Some components have
color-coded connectors that
match the ports on the back
of your computer.
Your Presario 7000 Series at a Glance

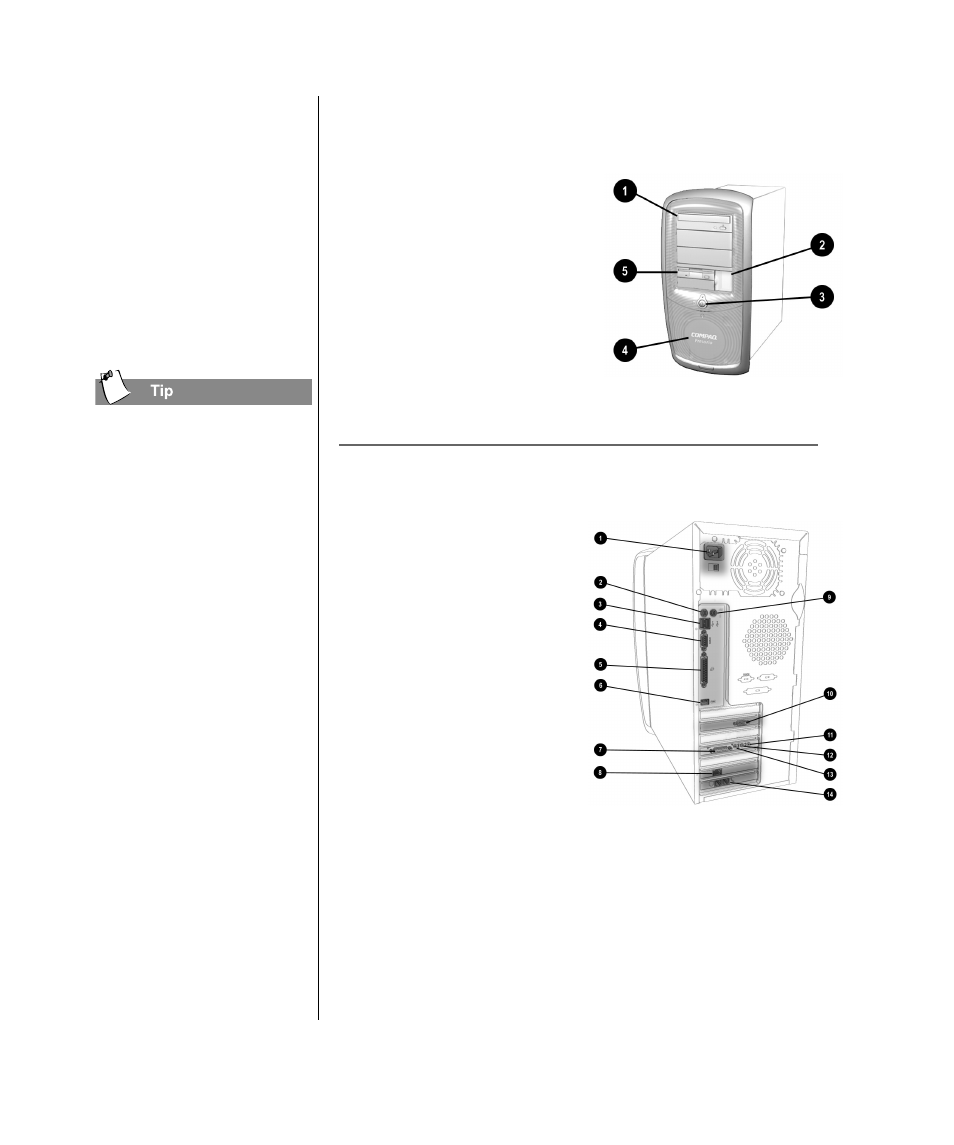

What’s at the Front? (7000 Series)
1 CD-ROM, CD-RW, or
DVD-ROM drive
2 Dual USB and 1394 (varies
by model) port for
connecting peripheral
devices, such as gamepads,
joysticks, and video cameras
3 Power button
4 CD storage for storing a
maximum of five CDs
5 Diskette drive
What’s at the Back? (7000 Series)
1 Power port
2 PS2 port for connecting a
keyboard
3 USB port for connecting
an Internet keyboard or
other USB devices
4 Serial port
5 Parallel port
6 1394 high speed port
7 Game/MIDI port
8 Ethernet port (if equipped)
9 PS2 port for connecting a
mouse
: SVGA connector to connect a monitor
; Audio Out for connecting your speakers (light green)
< Audio In for connecting audio devices* (light blue)
= Microphone port (light pink)
> Modem port
Note: The Soundblaster LIVE soundcard is equipped with an additional port:
the SPDIF Digital Out. (yellow)
Note: Connectors may vary by model.
