Checkmark Value Setting (Administrator only)

■Serial #/Report

•Linearity ref.
•Max.CV%
•Filter Check ref.

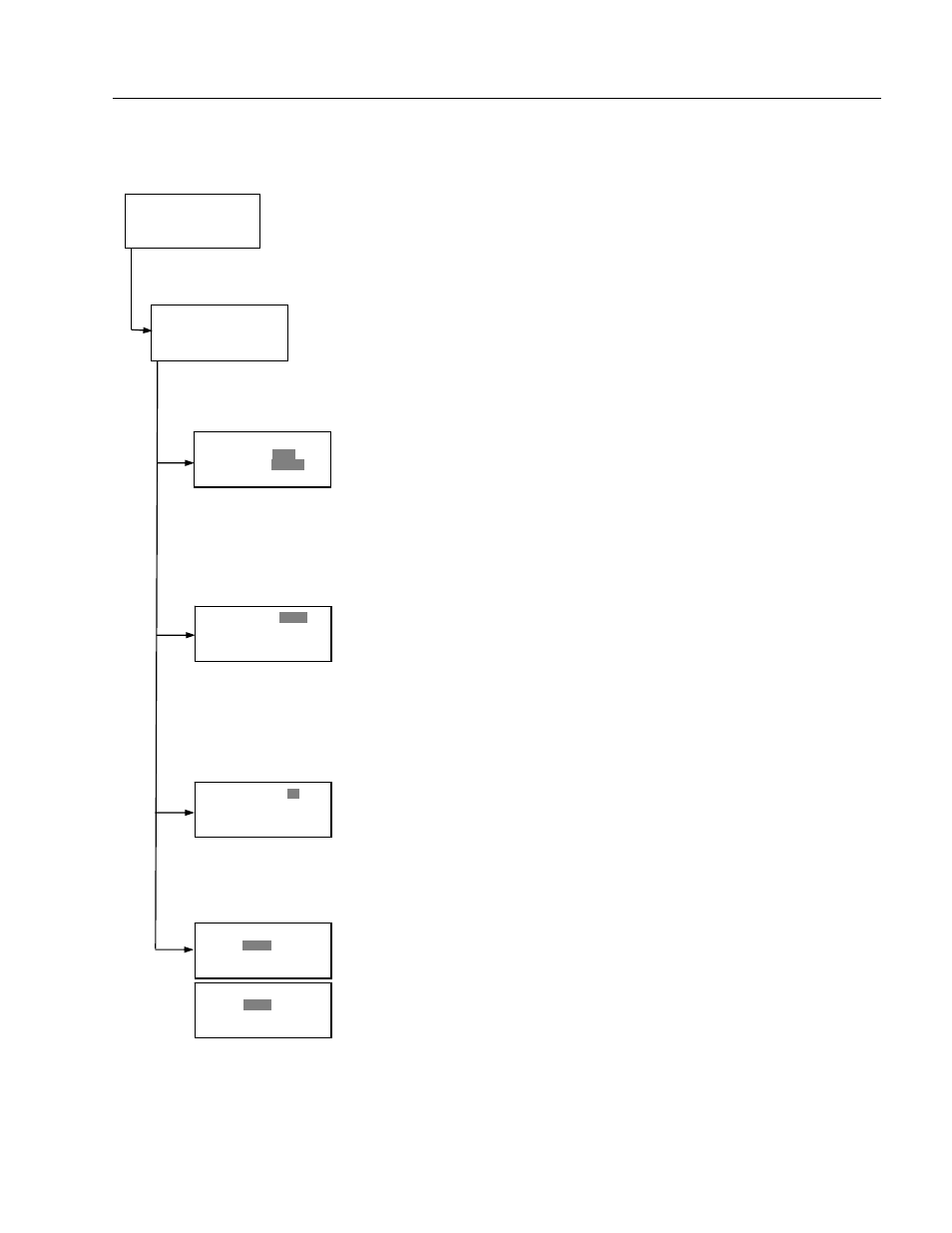

Checkmark Protocol Menu

■Serial #:

0000

Rep.type:

Simple

405nm S1:

0.158

Linearity S2:0.309
reference S3:1.401
S4:2.109

Max.CV% »

■S1:

Linearity S2:05%
reference S3:02%
S4:02%

Filter max min
405:

1.875

0.329

450:1.167 0.954
↓ 492:0.596 0.103

Serial #/Report

Linearity reference

Max. CV%

Filter check reference

Filter max min
↑ 540:

1.875

0.329

620:1.167 0.954
690:0.596 0.103

Setting the Serial Number and Report Type

Pressing the Up and Down arrow keys will move the cursor and change the field
entry.
When “Serial #” field is active, enter the serial number that will be shown in the data
sheet of the Checkmark plate using the numeral keys.
When the “Rep. type” field is active, pressing the Right arrow key will switch the
report type between “Simple” and “Full”.

Setting the Linearity Reference Value

Pressing the Up or Down arrow keys will move the field entry from S1 to S4.
Pressing the Right arrow key will change the wavelength:
405 nm->450 nm->492 nm->540 nm->620 nm->690 nm
Use the numeral keys for the reference value setting.
Pressing Enter will complete all field entries at all wavelength.

Max. CV% setting

Pressing the Up or Down arrow keys will move the field entry from S1 to S4.
Use the numeral keys for the Max. CV% setting. Press Enter to complete all field
entries.

Setting the Filter Check Reference Value

Initial screen shows the reference entries for 405 nm to 492 nm and pressing the
Down arrow key at the bottom of the screen entries will scroll to the next page for
540 nm to 690 nm. Pressing the Up, Down and Right arrow keys will move the field
entry. Use the numeral keys for the filter check reference value setting. Press Enter
to complete all field entries.

Select “Protocol” in the Edit Menu and press Enter. The Checkmark Protocol Menu will
appear on the screen if the current active protocol type is Checkmark mode.

Edit Menu

■Protocol •Lab.name

•Security •SaveSTDC
•Filters •Printer
•Date set

This menu screen can be accessed by pressing the Edit key in the MAIN screen.
