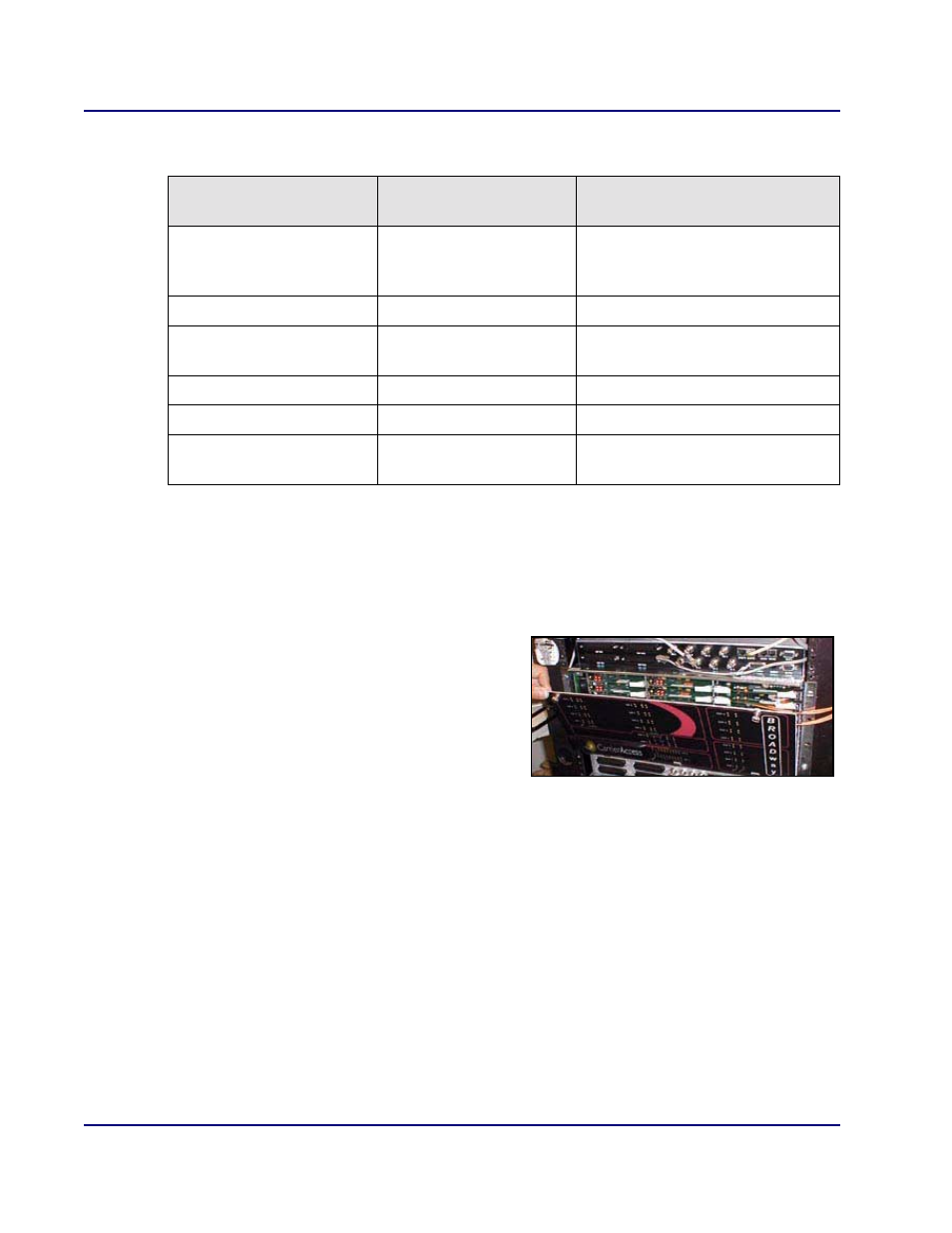

Attaching the Front Panel
Line status (per port):
Attaching the Front Panel
After inserting the cards and cabling the BROADway you must secure the front panel to the
BROADway chassis.
To attach the front panel:
1. Place the front panel on the front of the chassis,
hooking the slots into the bottom and lining up
the four screws.
2. Flip up the front panel to close it securely
against the front of the chassis.
3. Screw in the four screws to properly secure the
front panel to the chassis.
INTERFACE Red LED
(Bottom) INTERFACE Green
LED (Top)
Status
Off Off The card is not configured, or
alarm reporting is disabled on the
interface
Off On Interface operating normally
Off Blinking Interface performing a diagnostics
test
On Off Interface failure (LOS, OOF, AIS)
Blinking Off Yellow alarm (RAI)
On On Interface initializing during system
power up
