2-8 BROADway - Release 4.00
Installation
Cabling Power and Ground
WARNING! T HE BROAD WAY CHASSIS DOES NOT PROVIDE AUTOMATIC POLARITY
CORRECTION . T HAT IS , IF YOU ATTACH THE SUPPLY WIRES IN THE WRONG ORDER , THE INPUT
POWER FUSE WILL BLOW . S PARE FUSES ARE ENCLOSED WITH EACH BROAD WAY CHASSIS TO
HANDLE THIS SITUATION .
5. After wiring the green FEED A connector, reconnect it to the back of the BROADway chassis.
6. For power redundancy, use an alternate DC power source, and wire FEED B in the same
manner as FEED A.
DANGER! T HIS CHASSIS HAS TWO POWER SUPPLY CONNECTIONS . D ISCONNECT BOTH
BEFORE SERVICING TO AVOID ELECTRIC SHOCK .

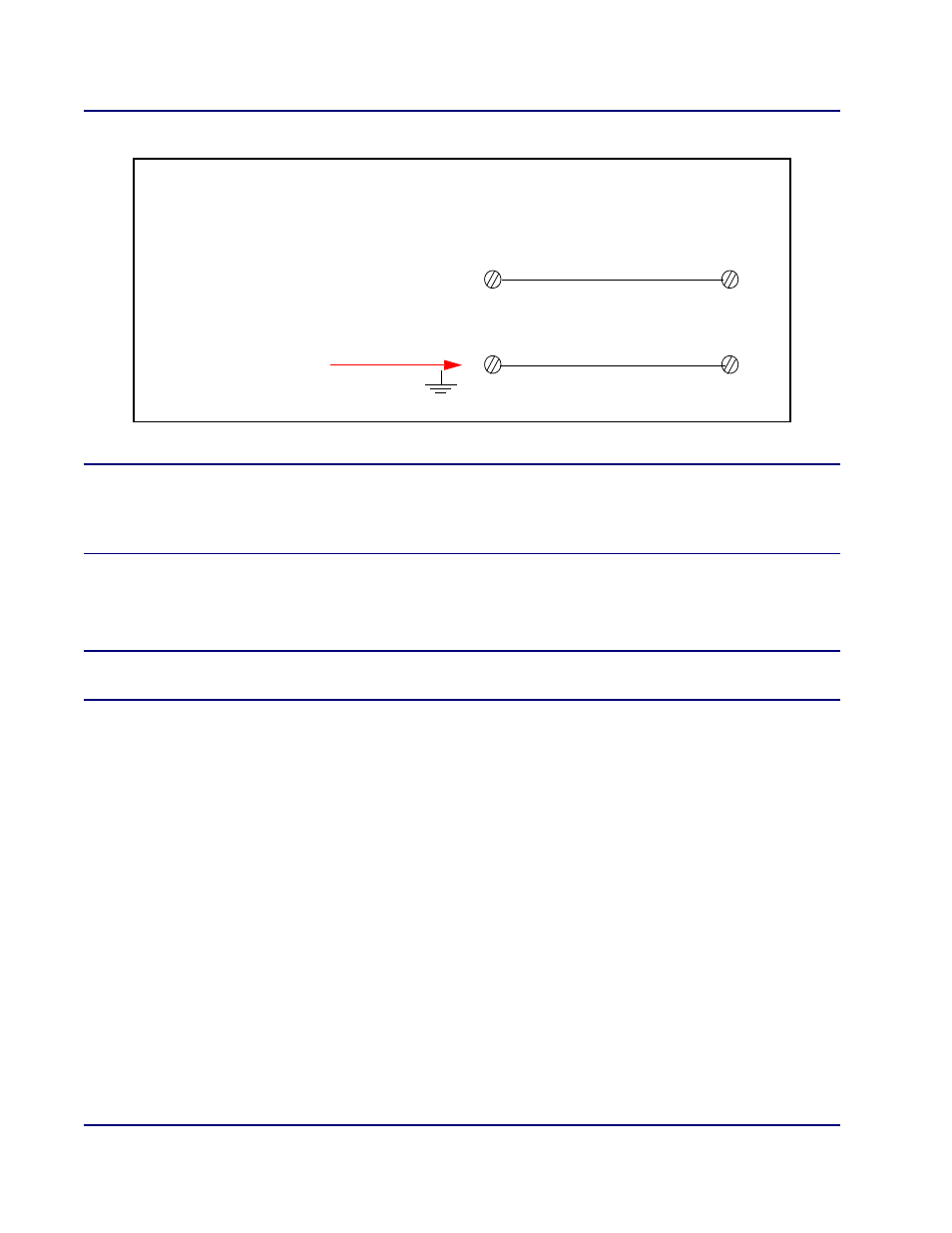

BROADway +24 VDC Feed
+
-
+24 VDC
RETURN
Ground at power source
Using a +24 VDC Power Source
