2-4 BROADway - Release 4.00
Installation
Mounting the Chassis in a Rack
All configurable items in the BROADway chassis are managed through the software interface. The
backplane of the BROADway chassis is keyed to prevent you from inserting a card in the incorrect slot.
All BROADway control and line cards are hot-swappable, you can insert cards into systems that are
either not powered, or systems that are powered.
Mounting the Chassis in a Rack
Typically, the BROADway chassis will be mounted within a rack or bay. The BROADway chassis can
be installed in either a standard 19- or 23-inch rack. A mounting kit included with the chassis provides
the means to support installation in both types of rack.
WARNING! W HEN INSTALLING THE CHASSIS IN A RACK , BE CAREFUL TO TRY TO MINIMIZE
THE AMOUNT OF BLOCKAGE OVER THE AIR INTAKE AND EXTRACTION PANELS TO THE LEFT AND
RIGHT OF THE CHASSIS .
As when installing any additional equipment within an existing or planned rack environment, consider
how powering the BROADway chassis will impact the overall loading of the branch circuit used at the
rack. A fully loaded BROADway chassis requires approximately 160W to power the system. When
installing in a rack, make sure that a reliable ground (earth) path is maintained; the BROADway chassis
is intended to be connected to a good earth ground.

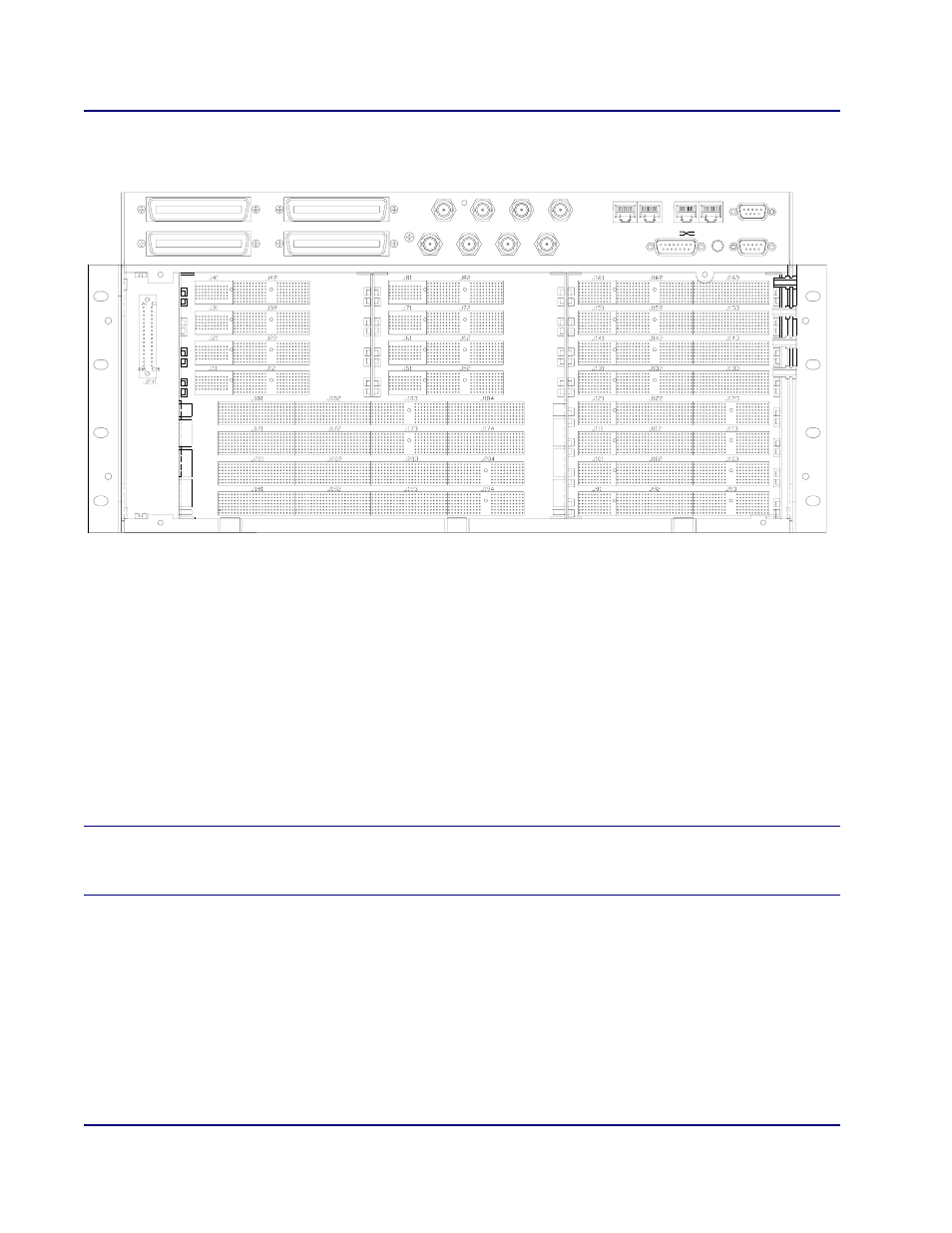

CKIN-1
NIP TX1 NIP TX2 TX2 TX1 TX3 TX4
NIP RX1 NIP RX2 RX3 RX1 RX2 RX4
ALARMS ACO SCP-2
ETH-1 CKIN-2 ETH-2 SCP-1
NIP-4
NIP-3
NIP-2
NIP-1
NIP-8
NIP-7
NIP-6
NIP-5
BSP-4
BSP-3
BSP-2
BSP-1
NSP-2
NSP-1
UIP-2
UIP-1
OSP-1
OSP-2
OSP-3
OSP-4
