BROADway - Release 4.00 2-21
Installation
Installing the BSP200 Line Interface Card
Installing the BSP200 Line Interface Card
BROADway supports up to four BSP200 single port DS3/mapper line interface cards installed in
positions BSP-1, BSP-2, BSP-3 and BSP-4. If you plan to support redundant BSP operation, you should
preferably install the redundant BSP module in BSP-4. When cabling to other DS3 equipment in an
office environment. Follow the design rules for the distance between DS3 terminal equipment and
DSX-3 bays and inter-bay patch panels; DS3 signals can be very sensitive to incorrectly wired
segments.
Insert the BSP200 card into the chassis. Open the ejector tabs and slide the card into its proper slot until
you feel resistance, then push to close the ejector tabs into their locking position against the metal rails.
Check that the card is firmly in place by applying pressure to the ejector tabs to seat the card fully into
the chassis.
WARNING! W HEN INSTALLING OR REPLACING BROAD WAY HARDWARE , ALWAYS ADHERE
TO GOOD PRACTICE WITH RESPECT TO ESD PROCEDURES — USE A REGULARLY AND PROPERLY
TESTED GROUNDING STRAP .

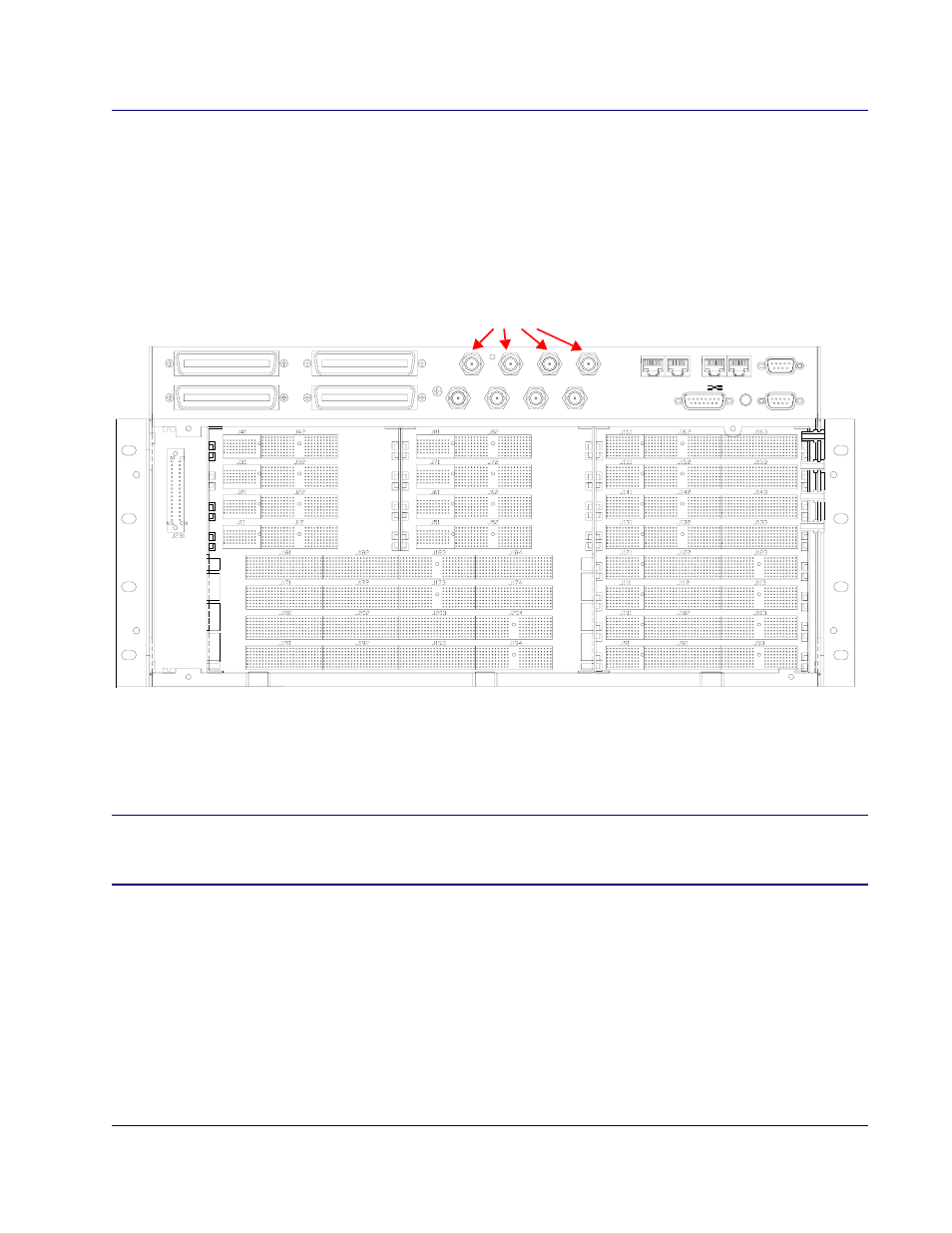

CKIN-1
NIP TX1 NIP TX2 TX2 TX1 TX3 TX4
NIP RX1 NIP RX2 RX3 RX1 RX2 RX4
ALARMS ACO SCP-2
ETH-1 CKIN-2 ETH-2 SCP-1
BSP-4
BSP-3
BSP-2
BSP-1
BSP200 line terminations
