2-24 BROADway - Release 4.00
Installation
Installing OSP155/ESP155/BCP155 Line Interface Cards
Installing OSP155/ESP155/BCP155 Line Interface Cards
BROADway supports up to four OSP155, ESP155 or BCP155 single port OC3/STM1 line cards
installed in positions OSP-1, OSP-2, OSP-3 and OSP-4. The OSP155 is a singlemode fiber interface
operating at 155Mbps, the ESP155 is a coaxial interface operating at 155Mbps and the BCP155 is a
reduced functionality 155Mbps singlemode fiber interface for the direct interconnection of BROADway
chassis.
The OSP155 and BCP155 cards contain a Class I Laser Product which conforms to the applicable
requirements of 21 CFR Subchapter J.
DANGER! D O NOT UNPLUG THE FIBER OPTIC CABLES OR LOOK DIRECTLY INTO THE END OF
A FIBER WHEN THE OSP155 OR BCP155 CARD IS POWERED UP . T HERE IS A STRONG
POSSIBILITY OF SEVERE EYE DAMAGE IF YOU LOOK IN THE END OF A LIT FIBER CABLE OR
INTERFACE .
Cable the OSP155, ESP155, and BCP155 cards directly. Dress the fiber cables to the right of the chassis
through the grommets provided in the right hand side of the unit.
The OSP155 and BCP155 cards use a duplex SC-type fiber optic cable connector. The ESP155 card
uses a 75Ohm SMB coaxial connector. For more information about this type of fiber cable specification,
see Appendix A, Ports and Cables.

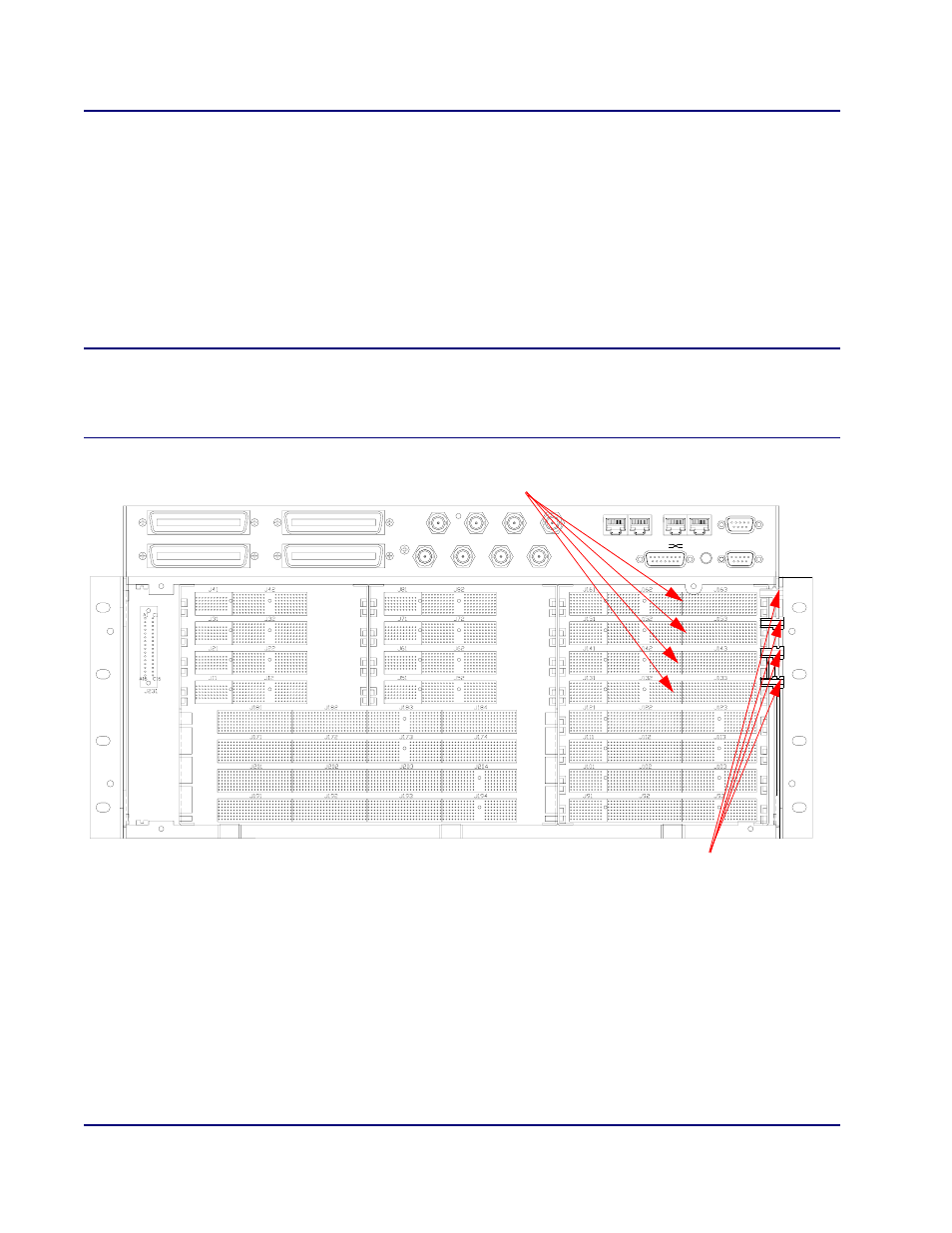

CKIN-1
NIP TX1 NIP TX2 TX2 TX1 TX3 TX4
NIP RX1 NIP RX2 RX3 RX1 RX2 RX4
ALARMS ACO SCP-2
ETH-1 CKIN-2 ETH-2 SCP-1
Insert OSP155, ESP155, or BCP155 cards (optional)
OSP-4
OSP-3
OSP-2
OSP-1
Grommets
