Installing OSP155/ESP155/BCP155 Line Interface Cards

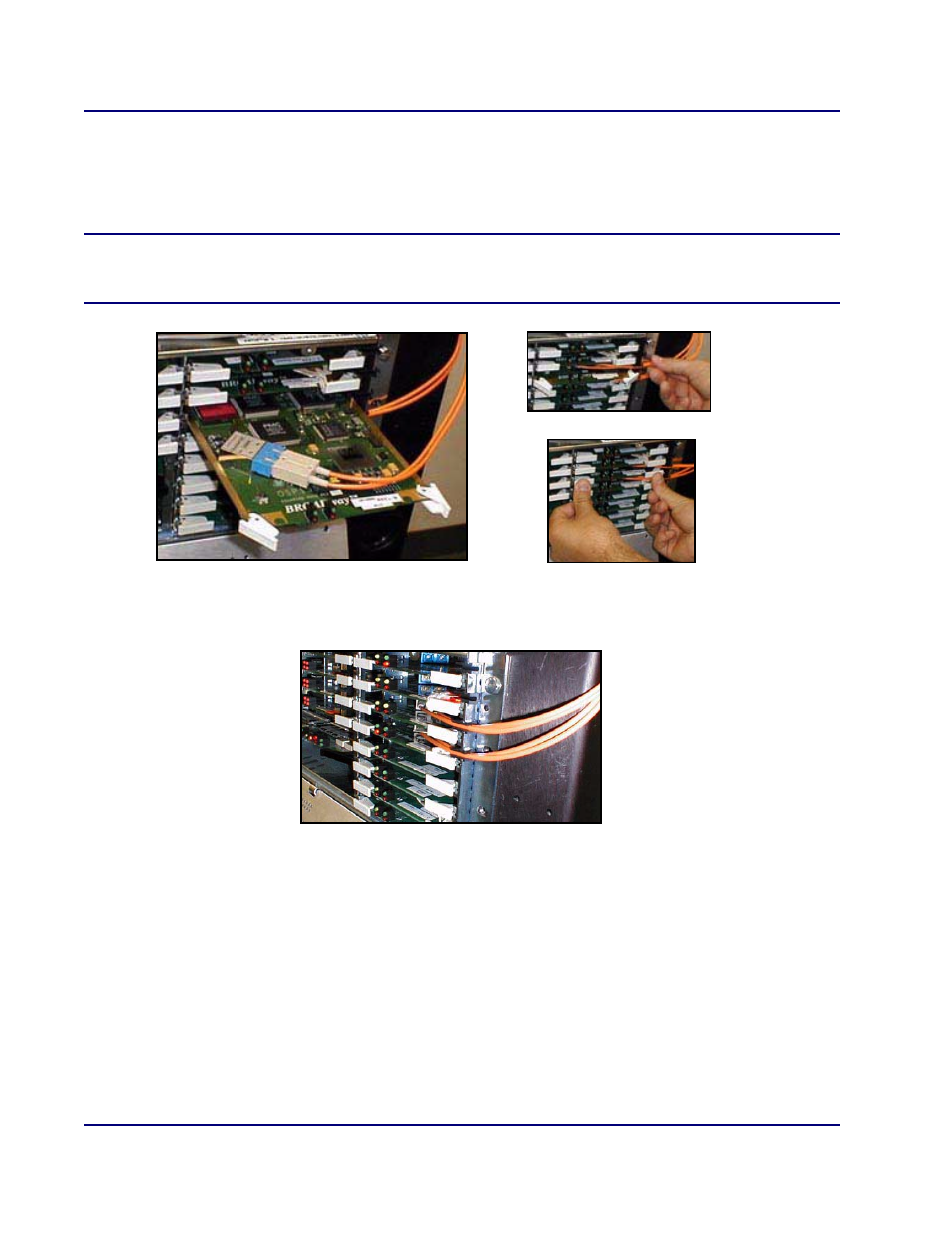

2. Insert the cards into the chassis. Open the ejector tabs and slide the card into its proper slot until
you feel resistance, then push to close the ejector tabs into their locking position against the
metal rails. Verify that the card is firmly in place by applying pressure to the ejector tabs to seat
the card fully into the chassis.
WARNING!
W
HEN
INSTALLING
OR
REPLACING
BROAD
WAY
HARDWARE
,
ALWAYS
ADHERE
TO
GOOD
PRACTICE
WITH
RESPECT
TO
ESD
PROCEDURES
—
USE
A
REGULARLY
AND
PROPERLY
TESTED
GROUNDING
STRAP
.
3. Dress the cables through the grommets at the right hand side of the chassis. The duplex fiber
cable fits snugly in each slot.
4. Connect the other end of the fiber cables to your fiber terminating equipment.
