Applicator Locks

Channels, pins, latches and solenoid valves limit
movement for various situations. Channels and pins
require operator attention. Latches and valves are
automatic if the systems are operating properly.

The lock set combinations vary by applicator width, hitch
type and year. Consult the following table for locks
provided on your applicator.

Lift-Assist Locks

Applies only to 2-point and pull type. Use the lift-assist
transport locks (and gauge wheel lock channels, if any)
to hold the fertilizer applicator at raised for transport,
adjustments, maintenance and storage.

Refer to Figure 24
To install cylinder stops:

1.

Fully raise applicator (page 48). Set lift circuit to
Neutral.

2.

On a 2-Point applicator, remove and store lift-assist
spacers (page 38).

3.

Remove lock channel

from storage location

.

4.

Place a lock channel on the lift cylinder rod of each
cylinder to be locked.

5.

Re-install locking pin and secure with cotter pin.

6.

Install center section gauge wheel lock channels
(2-point and pull-type).

7.

Lower fertilizer applicator onto lock channels.

8.

Set lift circuit to Float.

Pull-Type

2-Point

3-Point

NP30A

Lift-Assist Locks
Gauge Wheel Lock Channels

Lift-Assist Locks
Wing Lock Channels

Wing Lock Channels

NP40A 2012-
3-section frame

Lift-Assist Locks
Gauge Wheel Lock Channels
Wing Lock Pins

Lift-Assist Locks
Wing Lock Channels

Wing Lock Channels

NP40A 2012-
5-section frame

Lift-Assist Locks
Gauge Wheel Lock Channels
Outer Wing Fold Latches

Lift-Assist Locks
Wing Lock Pins
Wing Lock Channels
Outer Wing Fold Latches

Wing Lock Channels

NP40A 2013+
3-section frame

Lift-Assist Locks
Gauge Wheel Lock Channels

Lift-Assist Locks
Wing Lock Channels

Wing Lock Channels

NP40A 2013+
5-section frame

Lift-Assist Locks
Gauge Wheel Lock Channels
Wing Lock Pins

Lift-Assist Locks
Wing Lock Pins
Outer Wing Fold Latches
Solenoid Valves

Wing Lock Channels

2

1

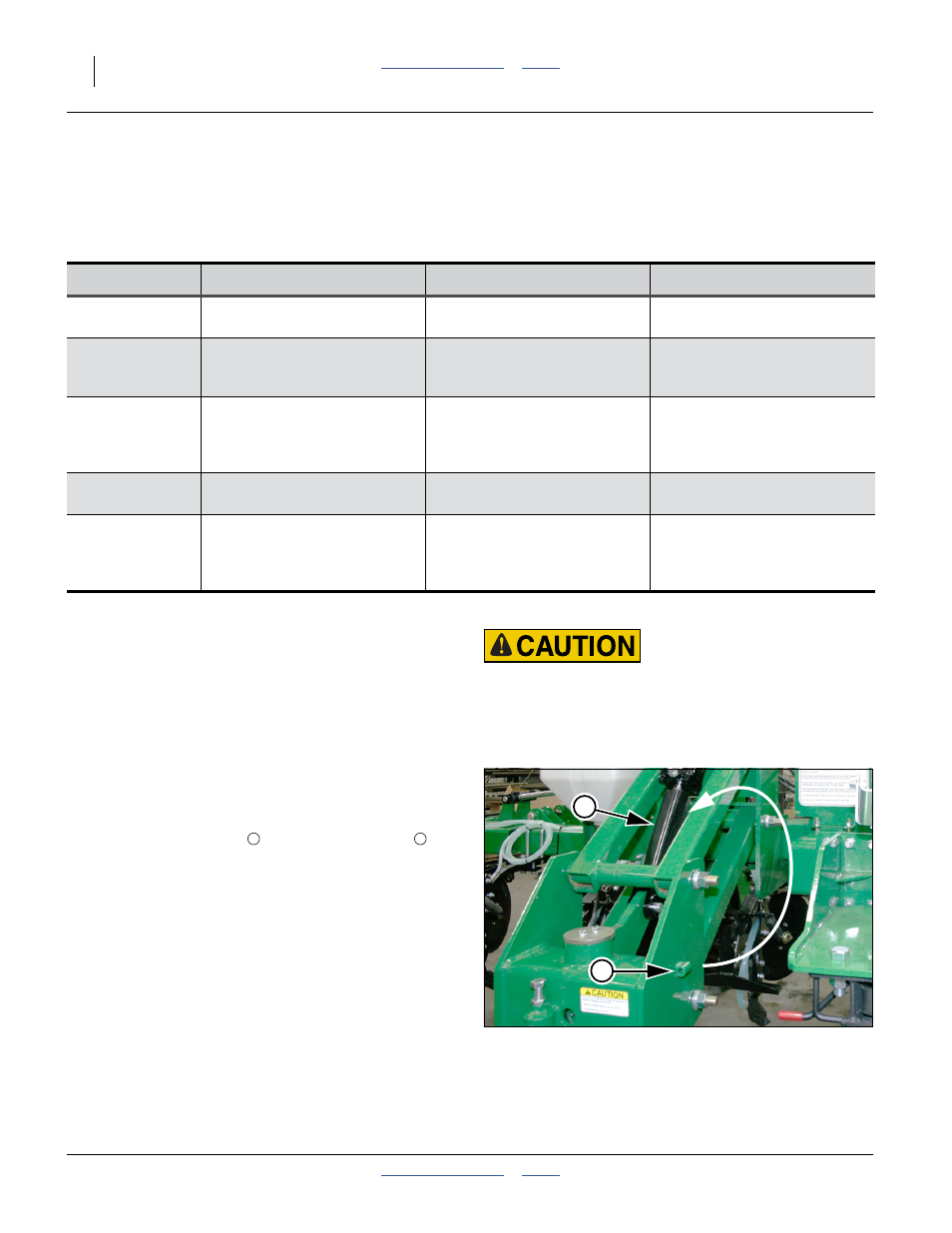

Figure 24

Rear Lift Cylinder Lock Channel

31619

Falling Hazard:
Do not climb or stand on tires or wheels. Even at full extension
on level ground, tires may not be in firm ground contact. They
could spin without warning. A fall could result in serious
injury.

1

2
