Meter Setup
This topic presumes that the applicator has a Raven
SCS 450 console, single or dual Raven AccuFlow™
metering system and the console is installed per
“Console Installation” on page 155.
If the Nutri-Pro
®
applicator has a user-provisioned controller,
carefully follow supplier documentation for installation, setup,
use and maintenance. Great Plains cannot assume any liability
for results with equipment not supplied by Great Plains.
Before first use, the SCS 450 must be programmed with
system configuration data, consisting of various “CAL”
numbers and user elected “RATE” numbers. See the
Raven SCS 450 manual (or the Calibration Card) for the
keystroke sequence for setting each of these values.
Raven Data (Single-Section):
Model Description BOOM CAL
SPEED
CAL
METER
CAL
VALVE
CAL
NP30A-11C30
NP30A-11R30
NP30A-11S30
30-Foot, 11-Row, 30-Inch 330 inches (838.2 cm) 598
a
a. Suggested initial value. Refine using calibration procedure in Raven SCS 450 manual.
Cable Tag
b
b. This value is printed on a durable tag attached to the meter cable.
Body Label
c
c. This value, for example “2123”, is printed on the label on the valve body.
NP30A-12C30
NP30A-12R30
NP30A-12S30
30-Foot, 12-Row, 30-Inch 360 inches (914.4 cm) 598
a
Cable Tag
b
Body Label
c
NP30A-13C30
NP30A-13R30
NP30A-13S30
30-Foot, 13-Row, 30-Inch 390 inches (990.6 cm) 598
a
Cable Tag
b
Body Label
c
NP30A-18R20
NP30A-18R20
30-Foot, 18-Row, 20-Inch 360 inches (914.4 cm) 598
a
Cable Tag
b
Body Label
c
NP30A-25C15 30-Foot, 25-Row, 15-Inch 375 inches (952.5 cm) 598
a
Cable Tag
b
Body Label
c
NP40A-15C30
NP40A-15R30
NP40A-15S30
40-Foot, 15-Row, 30-Inch 450 inches (1143 cm) 598
a
Cable Tag
b
Body Label
c
NP40A-16C30
NP40A-16R30
NP40A-16S30
40-Foot, 16-Row, 30-Inch 480 inches (1219.2 cm) 598
a
Cable Tag
b
Body Label
c
NP40A-17C30
NP40A-17R30
NP40A-17S30
40-Foot, 17-Row, 30-Inch 510 inches (1295.4 cm) 598
a
Cable Tag
b
Body Label
c
NP40A-22R20
NP40A-22S20
40-Foot, 22-Row, 20-Inch 440 inches (1117.6 cm) 598
a
Cable Tag
b
Body Label
c
NP40A-25R20
NP40A-25S20
40-Foot, 25-Row, 20-Inch 500 inches (1270 cm) 598
a
Cable Tag
b
Body Label
c
NP40A-31C15 40-Foot, 31-Row, 15-Inch 465 inches (1181.1 cm) 598
a
Cable Tag
b
Body Label
c

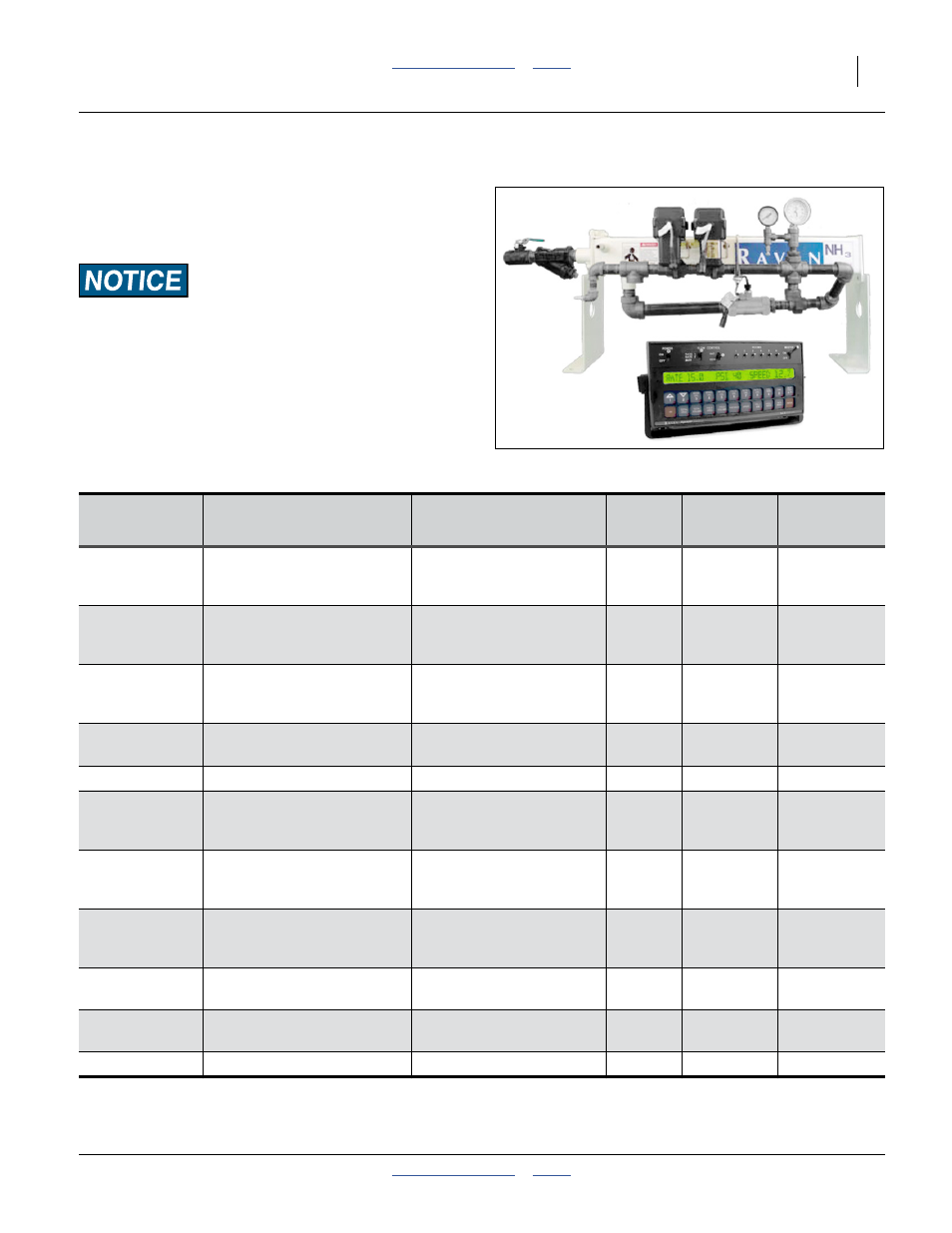

Figure 22
Raven AccuFlow™ and SCS 450
