Great Plains Mfg., Inc.
Installation Instructions 9
10/29/2008 168-414M
3N-4010HDA Blockage Harness Diagram
3N: Install Right-Rear Extension
Refer to Figure 16 and Figure 17
33. Select one new:
467980143 INT AG 25’ HARNESS, WSMB EXT
Connect the plug end of extension to the WSMB
harness at Tower 6 (right wing, right end). Route the
harness through the hoop at the right wing pivot.
Route it down the center section to the rear hitch
and connect it to existing rear hitch harness
.
Secure with ties.
34. Skip to “Close-Out” on page 29.
Harness ID
Callout
Part
Number Description
New Ex.
467751320S1 12 ROW HARNESS
467980130 40’ HITCH HARNESS
467980140 DJ 20’ HARNESS EXT
467980141 10’ EXT HARNESS
467980143 INT AG 25’ HARNESS, WSMB EXT
467980360 3’ REAR HITCH HARNESS
467981201 INT AG HARNESS, WSMB MODULE
31
92
34
35 93
37
94
40

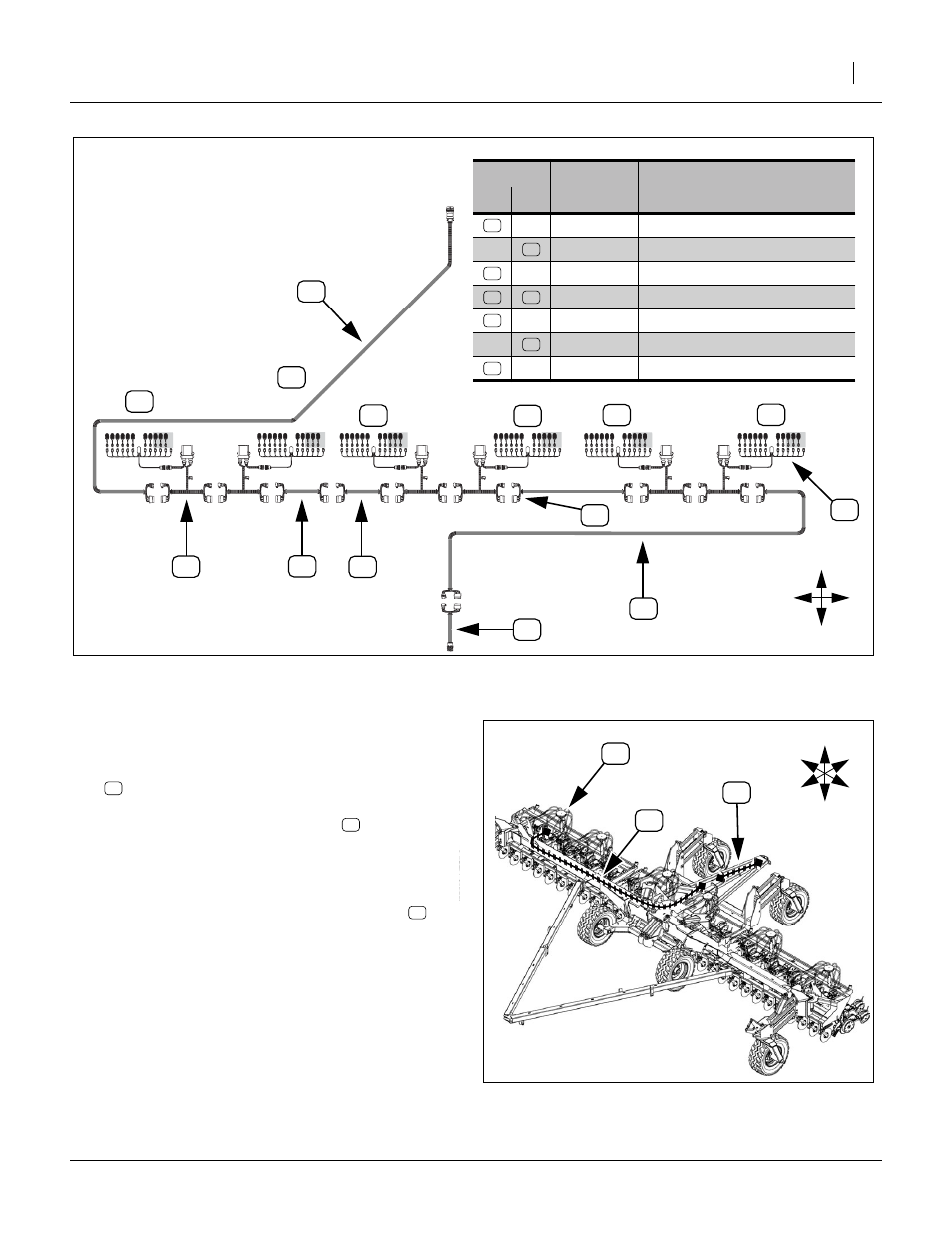

Figure 16
3N-4010HDA Harness Block Diagram
28439
F
B
R L
35
34
37
94
93
31
40
92
T1
T2
T3 T4 T5 T6
Figure 17
Blockage Harness Route (2 of 2)
28443
94
37
T6
U
D
F
B
L
R
37
37
94
