Blockage Monitor Kits
168-414M
10/29/2008
Refer to Figure 48 and Figure 46 on page 21
30. Select one new:
Following the Tower 1 inlet seed tube again, route
this extension between the WSMB harness at
Tower 1 and the WSMB harness at Tower 2. Con-
nect both ends of the extension.
Allowing slack for wing folding, secure harnesses
and
with cable ties.
Refer to Figure 49 and Figure 46 on page 21
31. Select one new:
Route this extension between the WSMB harness
at Tower 2 and the WSMB harness at Tower 3. Con-
nect both ends of the extension.
Secure harness
to the cross-tube with cable ties.
Refer to Figure 50 and Figure 46 on page 21
32. Select one new:
Following the inlet seed hose for Tower 4, route this
extension between the WSMB harness at Tower 3
and the WSMB harness at Tower 4. Connect both
ends of the extension.
Allowing slack for wing folding, secure harness
with cable ties.
33. Skip to “Close-Out” on page 29.

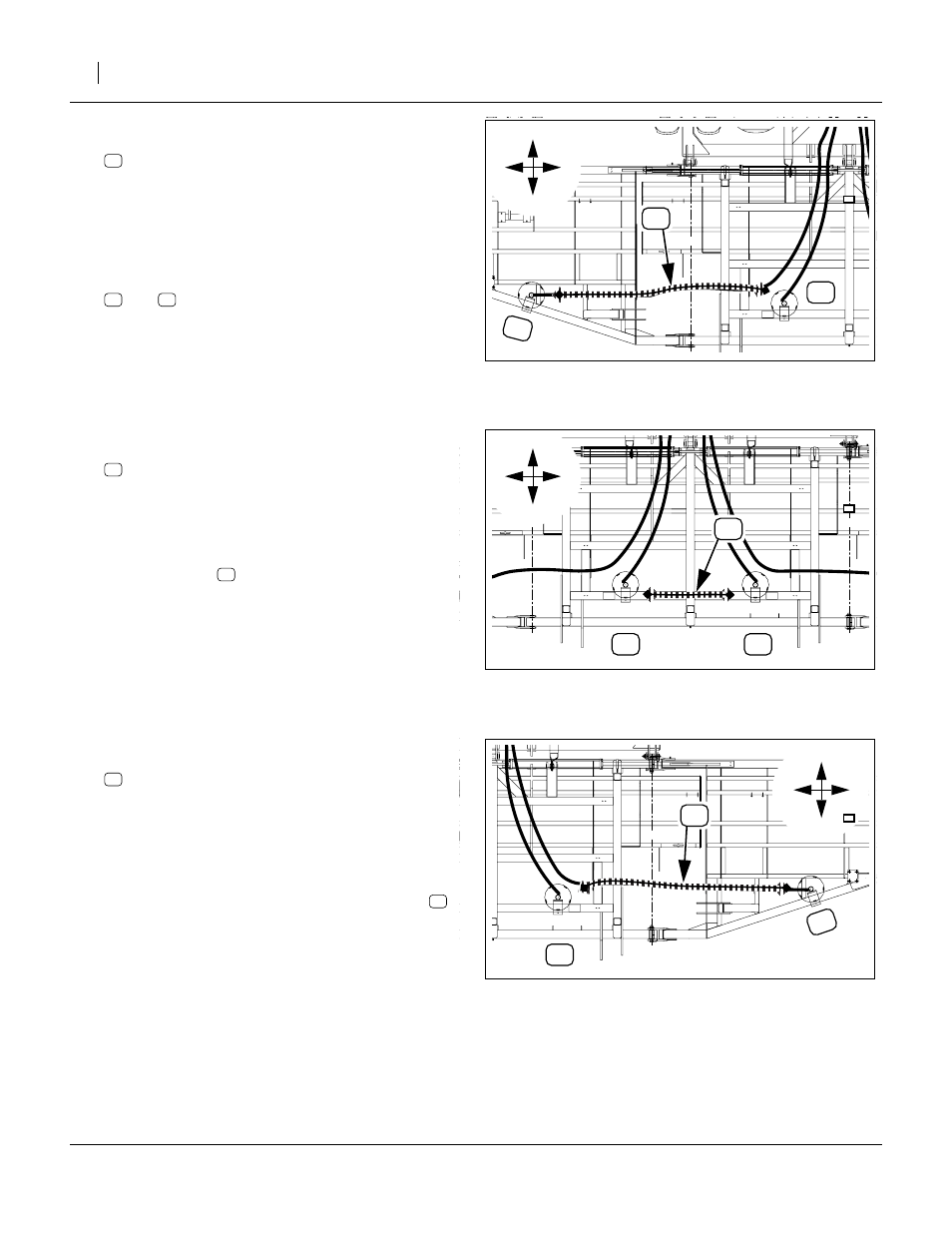

Figure 48: NTA30:
Tower 1 to Tower 2
16899
T1
F
B
R
L
T2
Figure 49: NTA30:
Tower 2 to Tower 3
16899
T3
F
B
R
L
T2
Figure 50: NTA30:
Tower 3 to Tower 4
16899
T3
F
B
R
L
T4
