NTA30 Blockage Harness Diagram
Refer to Figure 46 and Figure 47
29. Following the large inlet seed tube to Tower 1, route
20ft extension harness to the WSMB at Tower
one. Connect it to the WSMB harness . Do not
secure harness with ties until the next step.
Harness ID
Callout
Part
Number Description
New Ex.
467751320S1 12 ROW HARNESS
467980126 MINI CAN TERMINATOR
467980140 DJ 20’ HARNESS EXT
467980141 10’ EXT HARNESS
467980142 5’ EXT HARNESS
467981201 INT AG HARNESS, WSMB MODULE
467982000S1 PLNTR CNTRL OUTPUT MODULE(POM)
467983502 DJ 2SOL YP24LIFT/HITCH FCM HRN
31
91
34
35
36
40
97
98

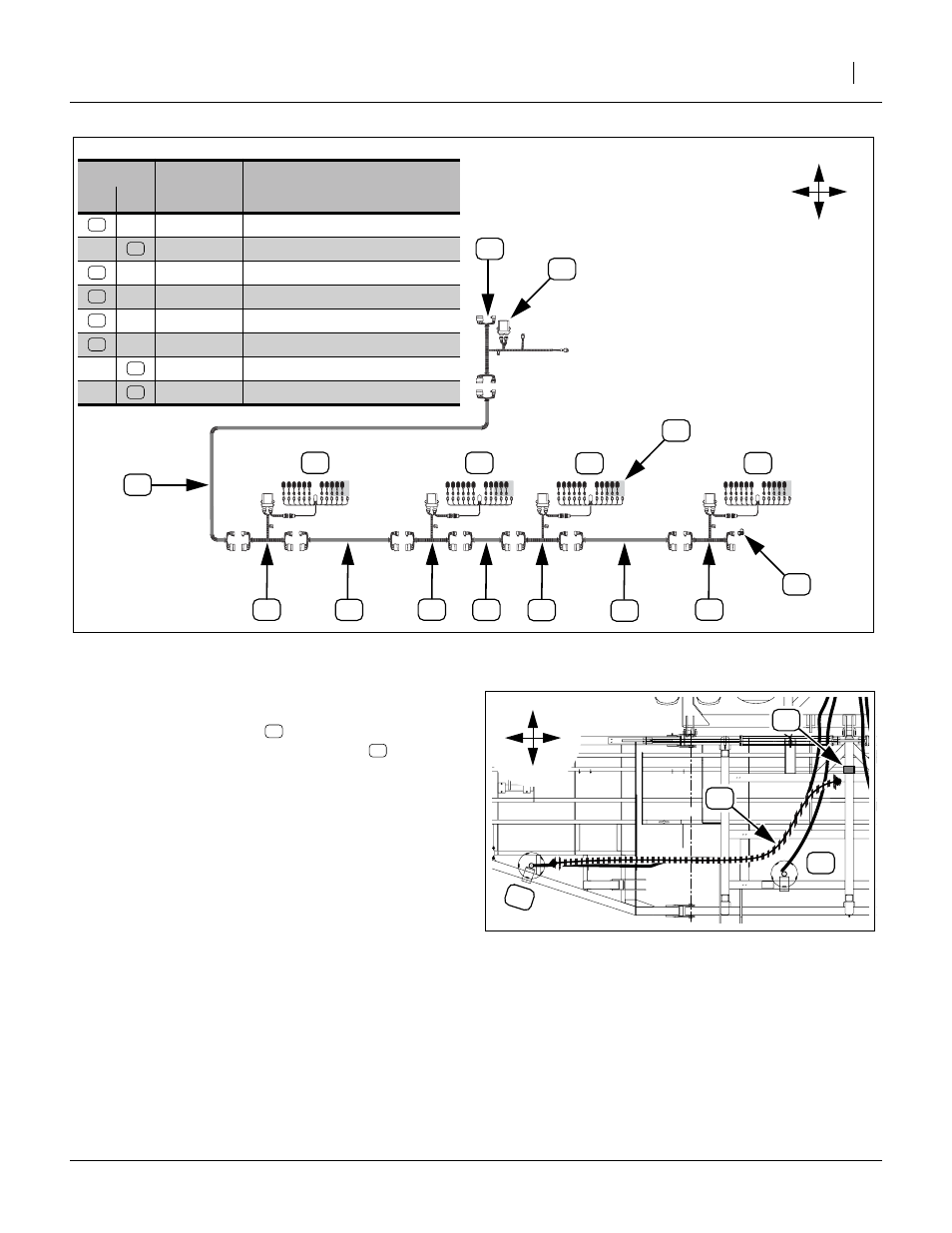

Figure 46
NTA-3010 Harness Block Diagram
28440
F
B
R L
35
34
31
T1 T2 T3 T4
97
98
40
91
35 36 40 40 40
Figure 47: NTA30:
Implement WSMB to Tower 1
16899
T1
F
B
R L
T2
97
34
34
40
