Great Plains Mfg., Inc.
Installation Instructions 23
10/29/2008 168-414M
NTA-3510 Installation
This installation requires one of the following kits:
168-406A
NTA3510-5575 (55 row, 7.5in)
168-407A NTA3510-4010 (40 row,10in)
Additional installation information is found in the
DICKEY-john IntelliAg Air Cart Control Operator’s man-
ual.
Note: The DICKEY-john manual has only general har-
ness routing for the Great Plains air drills, and
some cable part numbers are slightly different from
those in the kits.
Continuing from step 8 on page 3.
Refer to Figure 51 and Figure 52
9. Select five (5):
168-465D DIST TOWER MODULE MOUNT PLATE
At each tower, remove the nuts and lock washers
at the lower U-Bolt , and mount the plate .
Plate orientation is small holes to top, and
, : plate to drill center,
, : plate to drill center,
: plate to drill rear.
NTA35: Install WSMBs
Start with the left tower (Tower 1).
10. Select one:
467981100S1 INTAG WSMB/FLW MNTR MODULE 18R
and two sets:
802-224C HHCS 1/4-20X1 1/4 GR5
804-006C WASHER LOCK SPRING 1/4 PLT
803-006C NUT HEX 1/4-20 PLT
Mount the WSMB on the tower side of the plate
, with the mounting ears flush against the plate
and the connector ports facing down.
11. Repeat step 10 for the remaining towers

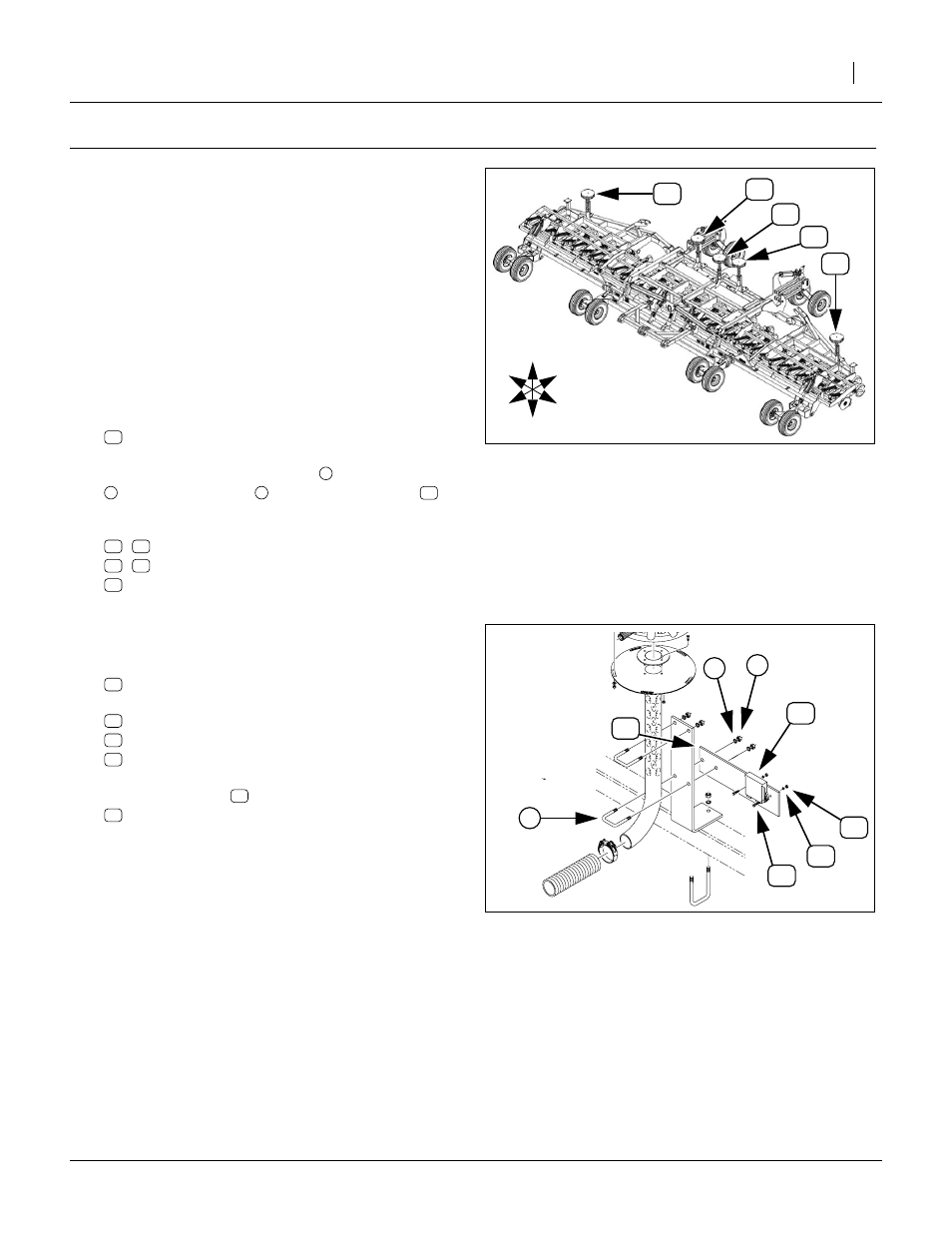

Figure 51
NTA 3510 Tower Arrangement
29020
T1
T2
T3
T4
T5
U
D
F
B
L
R
12
1
2 3 12
T1 T5
T2 T4
T3
Figure 52: NTA35:
Module Mount
27058
12
39
14
16
15
3
2 1
39
14
16
15
39
12
