Great Plains Mfg., Inc.
Installation Instructions
1
©Copyright 2008
Printed 10/29/2008
168-414M
Blockage Monitor Kits
Air Drills
General Information
Blockage monitor kits upgrade the existing DICKEY-john
Intelli-ag Air Cart Control system, adding the capability to
detect extreme variations in seed flow to individual rows.
These instructions explain how to install any of the fol-
lowing Blockage Monitor Kits:
If installation is being done on a new 3N-4010HDA, use
the instructions in the 196-444Q Pre-Delivery manual.
The instructions in this manual (168-414M) presume a
drill originally delivered and setup without blockage.
Each kit updates one drill. Kits are specific to drill models
and row spacings:
Before You Start
Review these instructions, with the following objectives:
• Compatibility: make sure the correct kit has been
ordered, and the air drill has the necessary DICKEY-
john Intelli-ag Air Cart Control system.
• Inventory: make sure all parts are present.
• Comprehension: make sure the installers understand
where each part is installed, and what tools are
required for the task.
Used with:
• 3N-4010HDA
• CTA4000 and CT4000HD
• NTA3010 and NTA3510
Kit
Kit Description
168-404A
NTA30-4875 DICKEY JOHN BLOCKAG
168-405A
NTA30-3610 DICKEY JOHN BLOCKAG
168-406A
NTA35-5575 DICKEY JOHN BLOCKAG
168-407A
NTA35-4010 DICKEY JOHN BLOCKAG
168-408A
CTA40-8006 DICKEY JOHN BLOCKAG
168-409A
CTA40-6575 DICKEY JOHN BLOCKAG
168-410A
CTA40-5010 DICKEY JOHN BLOCKAG
168-411A
3N40HD-6675 DICKEY JOHN BLOCK
168-412A
3N40HD-4810 DICKEY JOHN BLOCK
Note: The air drill must already be equipped with a
DICKEY-john Intelli-ag Air Cart Control system,
which includes a 5in or 10in LCD console (shown
above) for the tractor cab. This system is standard
with the ADC2350 and ADC2350B air drill carts.
Air drills using ADC1150, ADC2220 and ADC2250
carts, and equipped with Loup monitor systems,
cannot use these blockage kits.

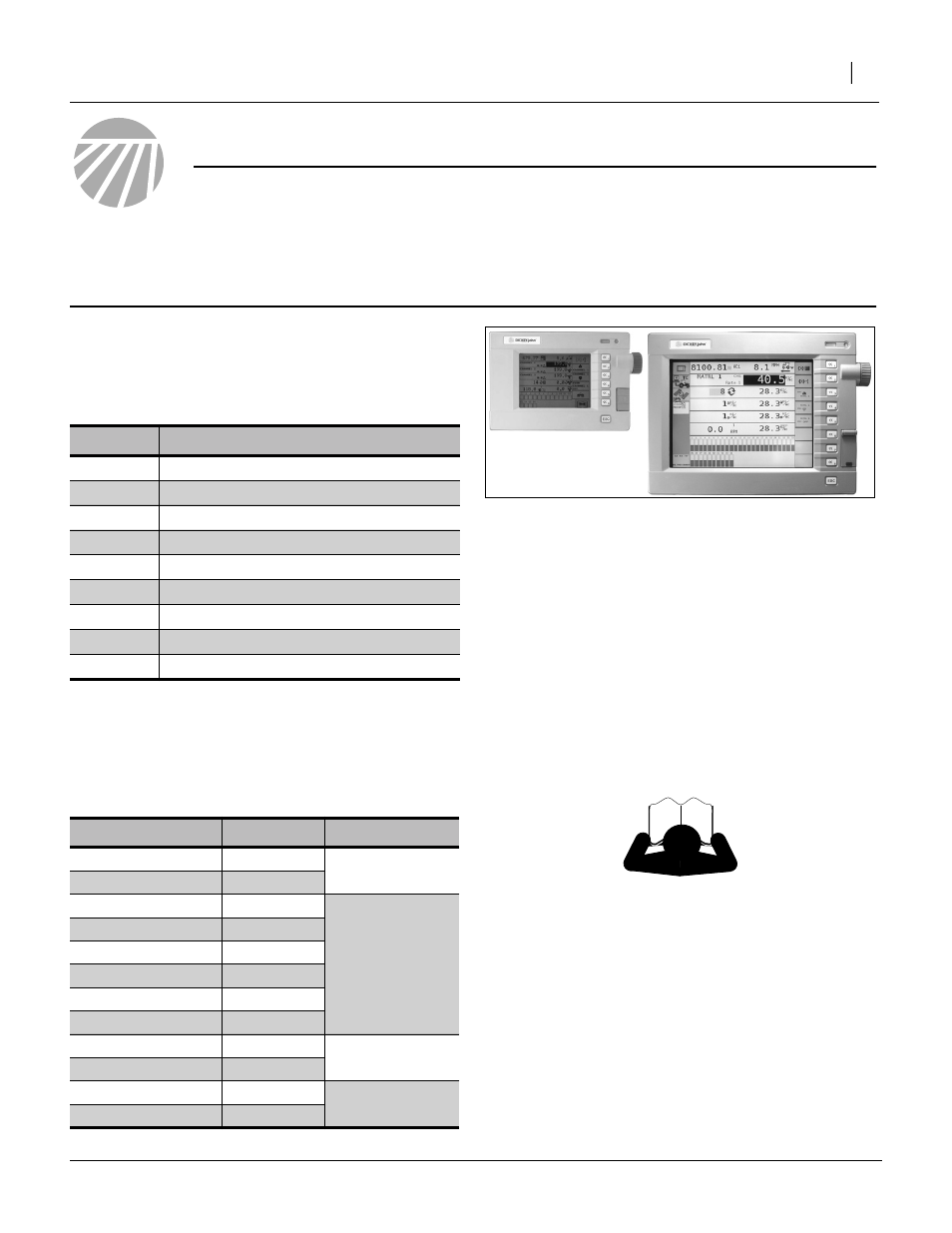

Figure 1
Existing Intelli-ag Console
25421
Air Drill Models
Use Kit
Pages
3N4010HDA-4810
3N4010HDA-6675
CTA4000-5010
CTA4000HD-5010
CTA4000-6575
CTA4000HD-6575
CTA4000-8006
CTA4000HD-8006
NTA3010-3610
NTA3010-4875
NTA3510-4010
NTA3510-5575
Document Outline
- General Information
- Pre-Assembly Preparation
- 3N-4010HDA Installation
- CTA-4000 and 4000HD Installation
- NTA-3010 Installation
- NTA-3510 Installation
- Close-Out
- Appendix
- Torque Chart
- 3N4010HDA Port Assignments, 10in (25.4cm) Drill
- 3N4010HDA Port Assignments, 7.5in (19.2cm) Drill
- CTA4000/HD Port Assignments, 10in (25.4cm) Drill
- CTA4000/HD Port Assignments, 7.5in (19.2cm) Drill
- CTA4000/HD Port Assignments, 6in (15.2cm) Drill
- NTA-3010 Port Assignments, 10in (25.4cm) Drill
- NTA-3010 Port Assignments, 7.5in (19.2cm) Drill
- NTA-3510 Port Assignments, 10in (25.4cm) Drill
- NTA-3510 Port Assignments, 7.5in (25.4cm) Drill
- New Parts
- Existing Parts Affected
- Abbreviations
