16 Blockage Monitor Kits
168-414M 10/29/2008
Refer to Figure 34 and Figure 32 on page 15
34. Select one new:
467980142 5’ EXT HARNESS
Connect one end to the WSMB harness at
Tower 3.
Route the harness to Tower 4, following the
nearest cross-tube.
Connect extension to WSMB harness at
Tower 4. Secure extension with ties.
35. Select one new:
467980141 10’ EXT HARNESS
Connect one end to the WSMB harness at
Tower 4.
Route the harness to Tower 5, following the
large seed inlet hose.
Connect extension to WSMB harness at
Tower 2. Secure extension with ties.
36. Skip to “Close-Out” on page 29.

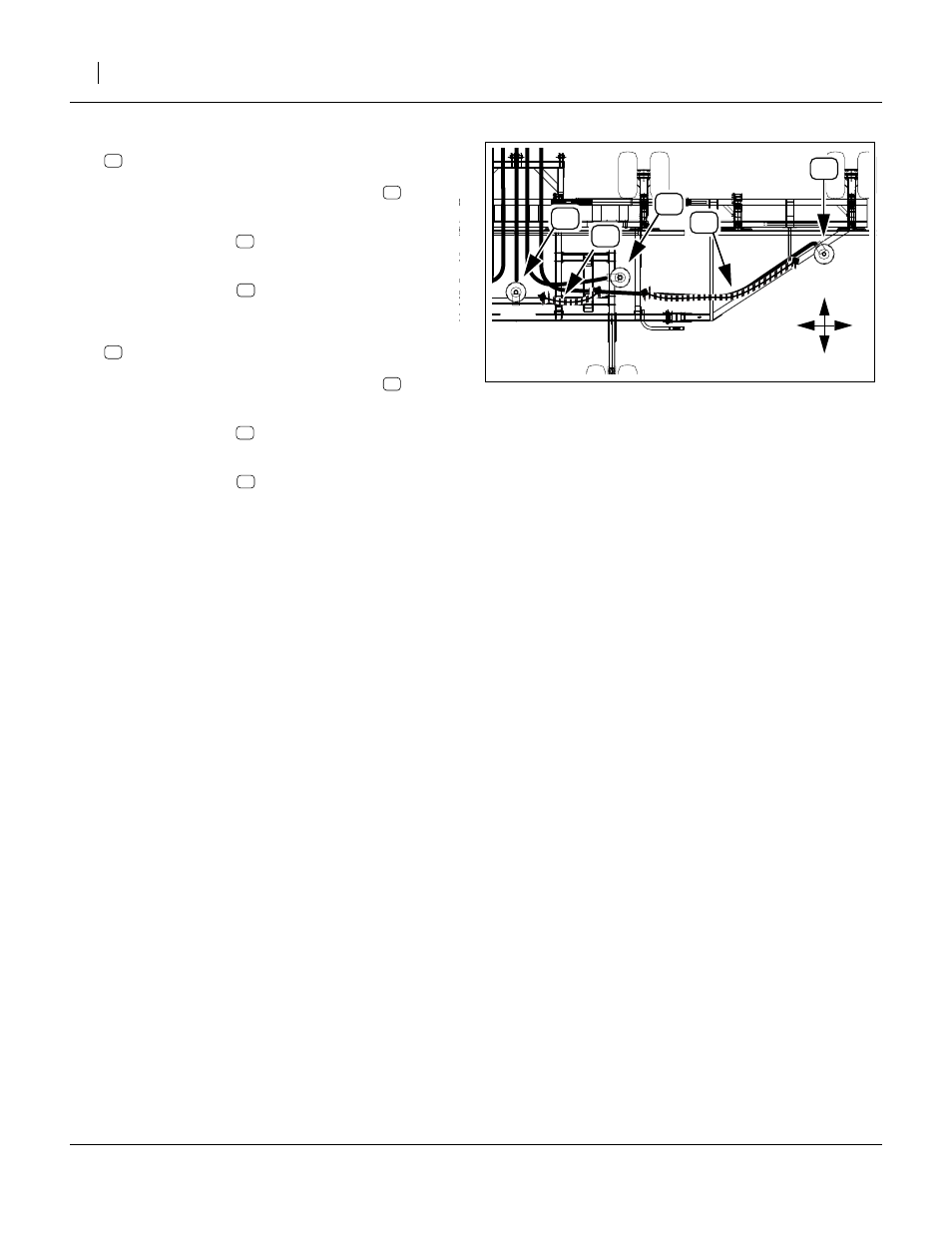

Figure 34: CTA:
Tower 3 to Towers 4 and 5
