Great Plains Mfg., Inc.
Installation Instructions 13
10/29/2008 168-414M
CTA: Install WSMB Harnesses
Start with Tower 1 (left wing, left tower)
Refer to Figure 26
22. Select one:
467981201 INT AG HARNESS, WSMB MOD-
ULE
Join the row harness connector to the mating
connector on the row harness .
Plug the WSMB connectors into the WSMB .
These connectors are not interchangeable, and are
keyed to ensure correct insertion.
Refer to Figure 24 on page 12
23. Select two:
800-082C CABLE TIE .31X21.5 6DIA 120LB
Coil up excess row harness leads and tie the bundle
to the tower, above and below the lower U-bolt.
24. Repeat step 22 and step 23 for each tower.
CTA: Extend Cart Harness
Refer to Figure 27
25. Locate the existing cart WSMT:
467980817S1 WSMTII GP AIR CART MODULE
and the harness connected to it:
467980856 GP WSMTII AIR CART HARNESS
Refer to Figure 28 and Figure 32 on page 15
26. Remove and save the CAN bus terminator:
467980126 MINI CAN TERMINATOR
27. At Tower 5, plug the saved CAN bus terminator into
the WSMB harness .

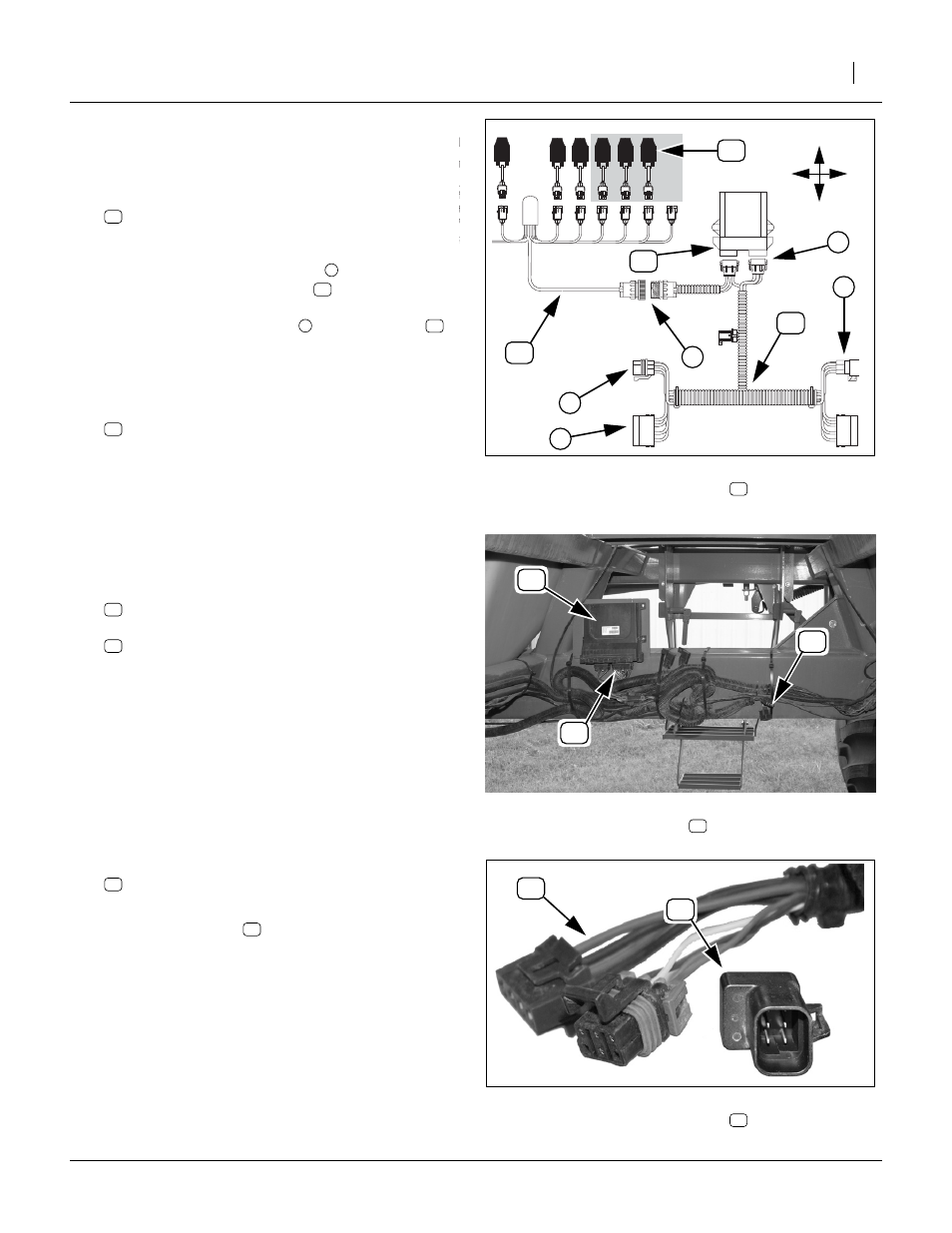

Figure 26: CTA:
WSMB Harness
28200
40
1
2
31
30
40
39
3
4
5
U
D
L R
40
1
31
2 39
13
Figure 27: CTA:
Cart Harness Location
28430
96
95
96
91
95
96
Figure 28: CTA:
CAN Terminator
28429
91
91
96 91
40
