Tank Cart Hitching
If using a fertilizer cart, consult the cart manual for:
• hitching cart tongue to planter
• connecting pump control electronics to planter
• connecting fertilizer feed hoses to planter
Complete the tractor-planter hook-up before making any
tank cart connections.
Material Loss Risk:
Open hose and inlet valves when ready to begin planting.
Close them when not in use. Damage to hoses when not apply-
ing material can result in rapid tank depletion.
Fertilizer Connection Types
Making Fertilizer Connections
Null4:
Type Description
2
2-section, planter manifold and pump:
Starter inlet only
3
3-section, cart manifold and pump:
Left, Center, Right inlets & Gauge line
Tank cart with 3-line pumped tank and 1-line gravity tank,
YP3025A Planter w/ Type 2 and Type 3 Manifolds, & Ground Drive Pump
Planter Inlet
Left Type 3 Center Type 3 Right Type 3 Type 2 Gauge Line
Tank cart with 3-line pumped tank,
YP3025A Planter with Type 3 Manifold (only)
Planter Inlet
Left Type 3 Center Type 3 Right Type 3 Gauge Line
Tank cart with 1-line gravity tank,
YP3025A Planter w/ Type 2 Manifold, & Ground Drive Pump
Planter Inlet
Type 2
Null4:

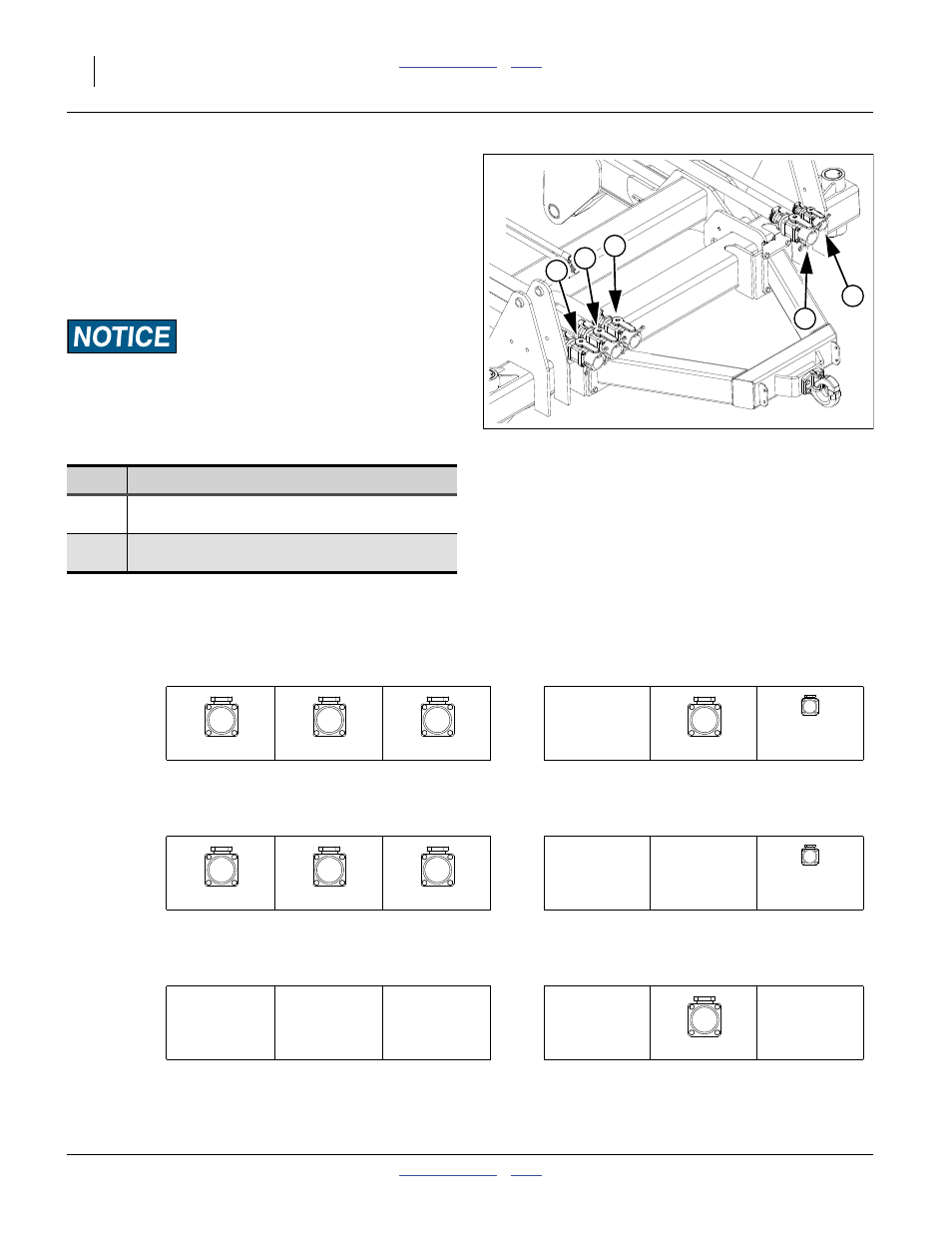

Figure 11
Fertilizer Cart Connections
29269
L
C
R
S
G
L C R S
G
L C R
G
S
