Great Plains Manufacturing, Inc.
Appendix R - Row Pro
173
02/16/2012
401-705M
Components
Refer to Figure 155 and Figure 156
The main systems of Row-Pro™ consist of:
1.
An air compressor system: one 12V air
compressor
with air tank
, two extension
cables
, and one fuse assembly
.
2.
A load sensing system: DPLCM (Down Pressure
Load Cell Module)
and the load cell
.
3.
An adjusting system: valves
and air cylinders
.
Load Cell, DPLCM and Valves
The DPLCM
, load cell
and valves
are mounted
together on a plate and are connected to the
DICKEY-john
®
wiring harness
.
The load cell located on the center most opener is
attached to the DICKEY-john
®
wiring harness at
.
Four leads
on the DICKEY-john
®
wiring harness con-
nect to the valve sets
. There is one pair (one air
intake, one exhaust) for each valve.
Note: For single row planters:
There is one load cell
and one valve set
per
each opener section located at mid section.
Note: For twin row planters:
There are two load cells and two valve sets per
each opener section located on the long center row
unit of the section.
The wiring harness
connects to the planter at connec-
tor ends
which ties into the IntelliAg
®
system.
Null4:
Electrical System
Place the compressor as close to the tractor battery as
possible using the least amount of electrical connections
as possible to minimize voltage drop. The battery con-
nection is equipped with one large 60 amp spade fuse
(automotive type).
Note: If your tractor has an on-board engine driven com-
pressor capable of 150 psi, it can be used instead
of the one supplied with the planter. Hook the on-
board compressor to the air tank with lines provid-
ed.
9
3
5
2
1
4
4
7
8
13
11
12
6
10
14
Null4:

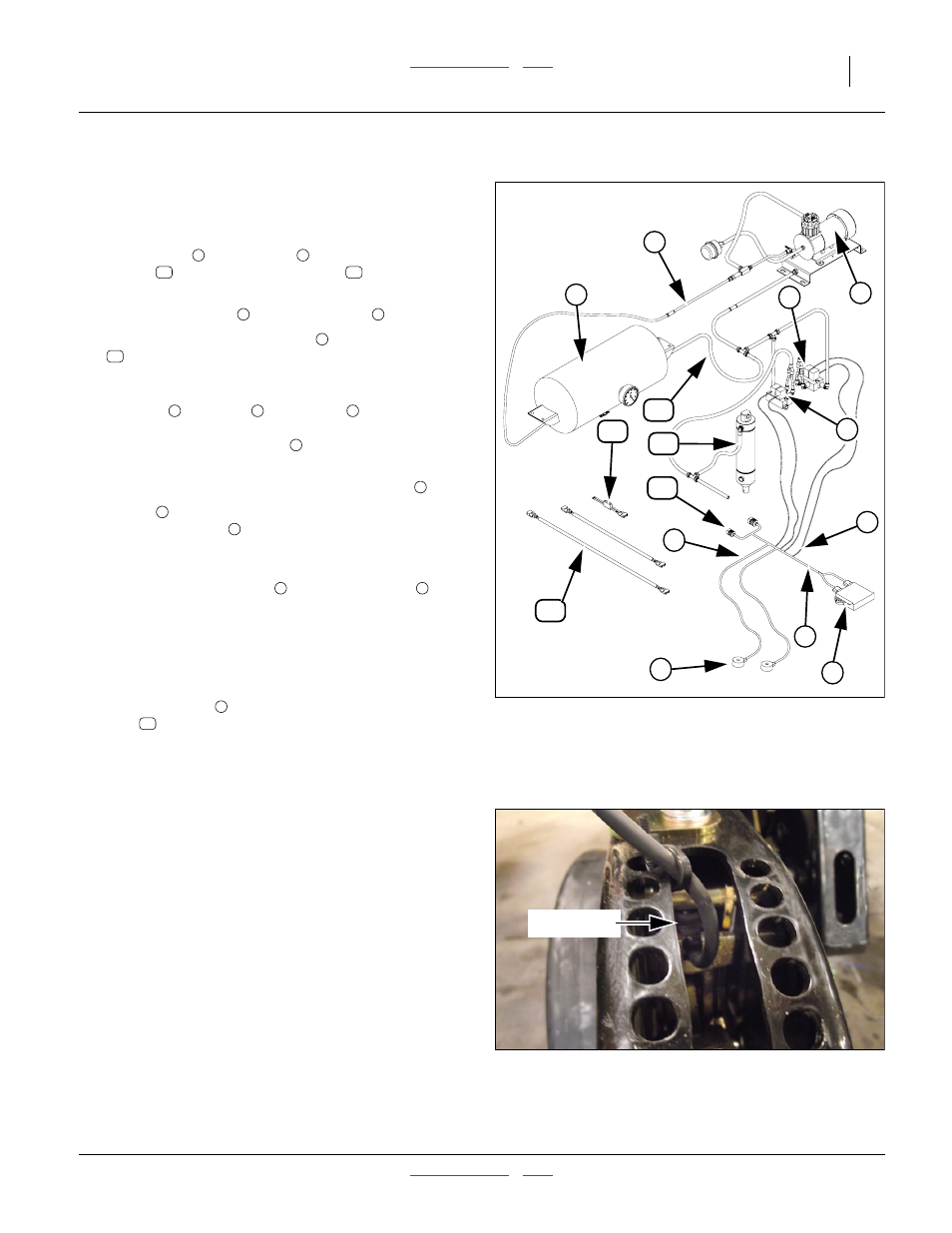

Figure 155
Row-Pro™ Components
31878
1
2
11
12
5
3
4
13
5
3
4
6
7
8
4
3
4
6
14
Null4:
Figure 156
Load Cell Location (Opener)
32089
Null4:
load cell
