Row Implement Adjustments
To get full performance from your planter, you need a
good understanding of row cleaner, coulter, fertilizer,
opener, meter, seed firmer, and press wheel operation.
Frame-Mounted Row Accessories
Frame-Mounted Coulters

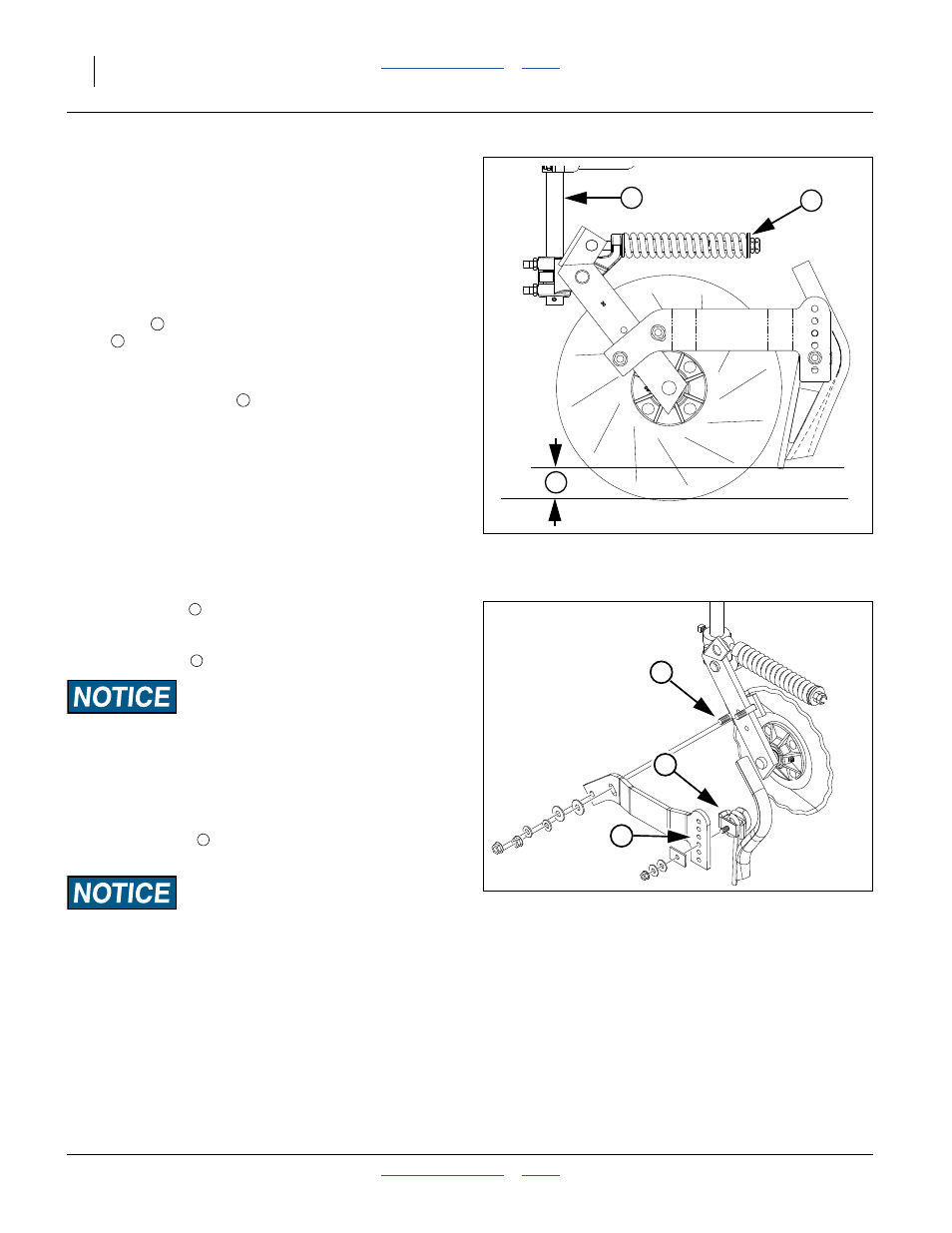

Refer to Figure 45
At the shaft
, adjust the coulter depth for a running
depth of 10.2 to 11.4 cm (4 to 4
1 ⁄
2
inches) below
ground level. Refer to the Vantage I manual (204-376M)
for further adjustments.
Do not adjust the spring tension. It is factory pre-set.
Dry Fertilizer Applicator Adjustments
There are two inter-related adjustment for applicators:
1. release height
2. release angle
Note: Make coulter adjustments before making applicator
adjustments.
Applicator Release Height
The primary adjustment for release height is the lower
four (of six) holes
at the rear end of the applicator arm.
Re-position the applicator mounting bolt to any of the
lower four hole. Before tightening the nut, make sure the
torsion spring leg
is also in an arm hole.
Machine Damage Risk:
Do not position the applicator mounting bolt in either of the
top two holes. This would leave the torsion spring leg
unsecured. The applicator angle could vary. The applicator
might strike the coulter disk.
A secondary adjustment for release height is to loosen
the clamping bolts
, and slide the applicator arm up or
down the coulter arm.
Machine Damage Risk:
Be sure to leave at least 13 mm clearance between the
applicator torsion spring and the coulter disk. If the clearance
is too small, the spring could strike the coulter disk when it
snaps forward after striking field obstructions.
1 4
2
Figure 45
Frame-Mount Coulter
31919
1
2
4
Figure 46
Dry Fertilizer Applicator
34562
5
7
6
5
6
7
