Disabling Unused Drives
To reduce wear on unused components, the various
drive systems can be disabled at various scales.
Circumstances which call for this include:
• Calibration (testing one system while avoiding material
loss at others)
• Seeding without application of fertilizer and/or
treatments
• Fertilizer and/or treatment application without seeding.
Wing Drive Lockup
Crushing and Sharp Object Hazard:
This is a two person operation. Wear gloves. Keep legs and feet
out from under the ground drive wheel. If a grip is lost, the
ground drive wheel will snap down with considerable force.
Be careful around the drive wheel teeth. They may be sharp.
Refer to Figure 39
To prevent drive operation when the planter is lowered:
1. Move the planter to field conditions. Unfold and
lower.
2. At each wing, lift the ground drive arm at the
handle
provided.
3. Swing down the hook and engage the wheel rim.
4. Lower the wheel into engagement with the hook.
Fertilizer Drive Lockup
See “Lock Up Dry Fertilizer Drive” on page 30.
Drive System
to Disable
Rows to Disable
Entire Planter Entire Wing One or More Rows
Seeding
(leaving Treatment enabled) Disengage all seed meter
clutches (page 34)
Disengage selected
seed meter clutches
Disengage selected seed
meter clutches
Seeding and Treatment Lock up both wing ground
drives (below)
Lock up wing ground
drive (below)
Disengage selected seed
meter and treatment clutches
Fertilizer Lock up the ground drive
(page 40)
Treatment (Option) Disengage selected treatment
clutches (page 39)
Disengage selected
treatment clutches
Disengage selected
treatment clutches
1
2
1
2

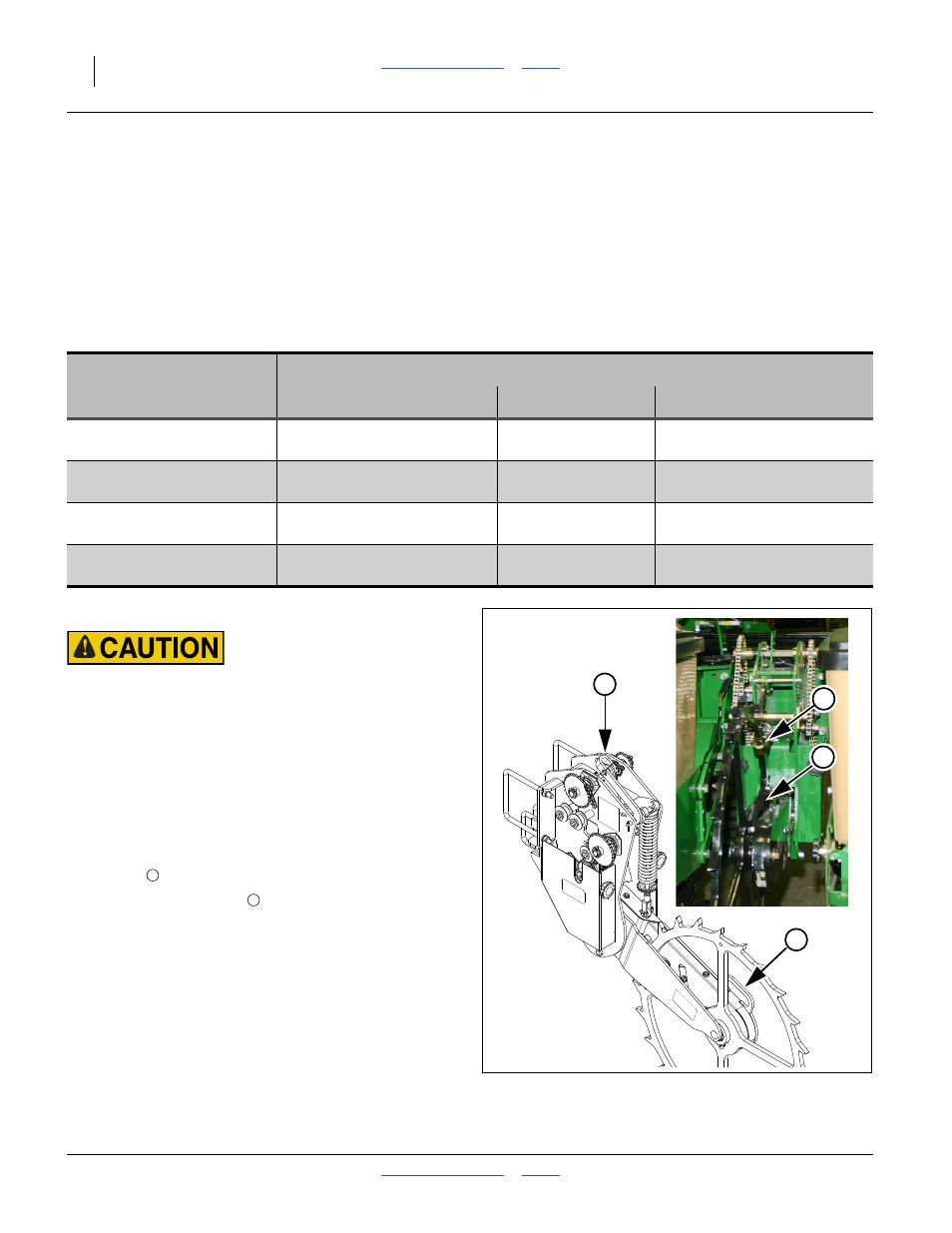

Figure 39
Wing Drive Lockup Hook
34553
1
2
