Power-Up The Console
Refer to Figure 120 on page 120
1.
Connect the monitor power leads to a +12Vdc
source. Optionally connect the monitor sensor
harness
to the planter harness, and the monitor
speed sensor lead to the planter speed sensor
lead. If the harnesses are not connected, expect an
error screen at step 2.
Refer to Figure 121
2.
Press the power On/Off key .
Wait for the power-up screen to complete.
If the next screen displayed is the Operate screen,
continue at step 4.
Refer to Figure 122
3.
If an error screen appears, with an alert tone, press
either the Alarm Cancel
or the ESCAPE keys
to silence the alert and display the Operate screen.
Set Metric Mode
4. Press the DISPLAY & SERVICE key.
5. If the icon pair at the lower left is , metric
mode is already set. Skip to step 10.
Refer to Figure 123
6.
Press the Down Arrow key twice to highlight the
Units icon.
7. Press the ENTER key to modify the Units.
8. Press either the Up or Down Arrow ( or ) to
change the large “E” to an “M” as shown in
Figure 123 .
9. Press the ENTER key to save this change.
About Row Count and Spacing
The YP1630F has a 32-row sensor harness.
Sensors for odd numbered rows (1…31) are connected
at each of the 16 dry fertilizer row hoses, and are for
blockage detection only.
Sensors for even numbered rows (2…32) are connected
at each of the 16 seed tubes, and are typically configured
for population (counting seeds), but may alternatively be
configured for blockage.
Row count is 32, and spacing is 35 cm or 15 inches. With
the odd row positions set to blockage, the monitor
correctly reports population only for the sensors
monitoring seed.

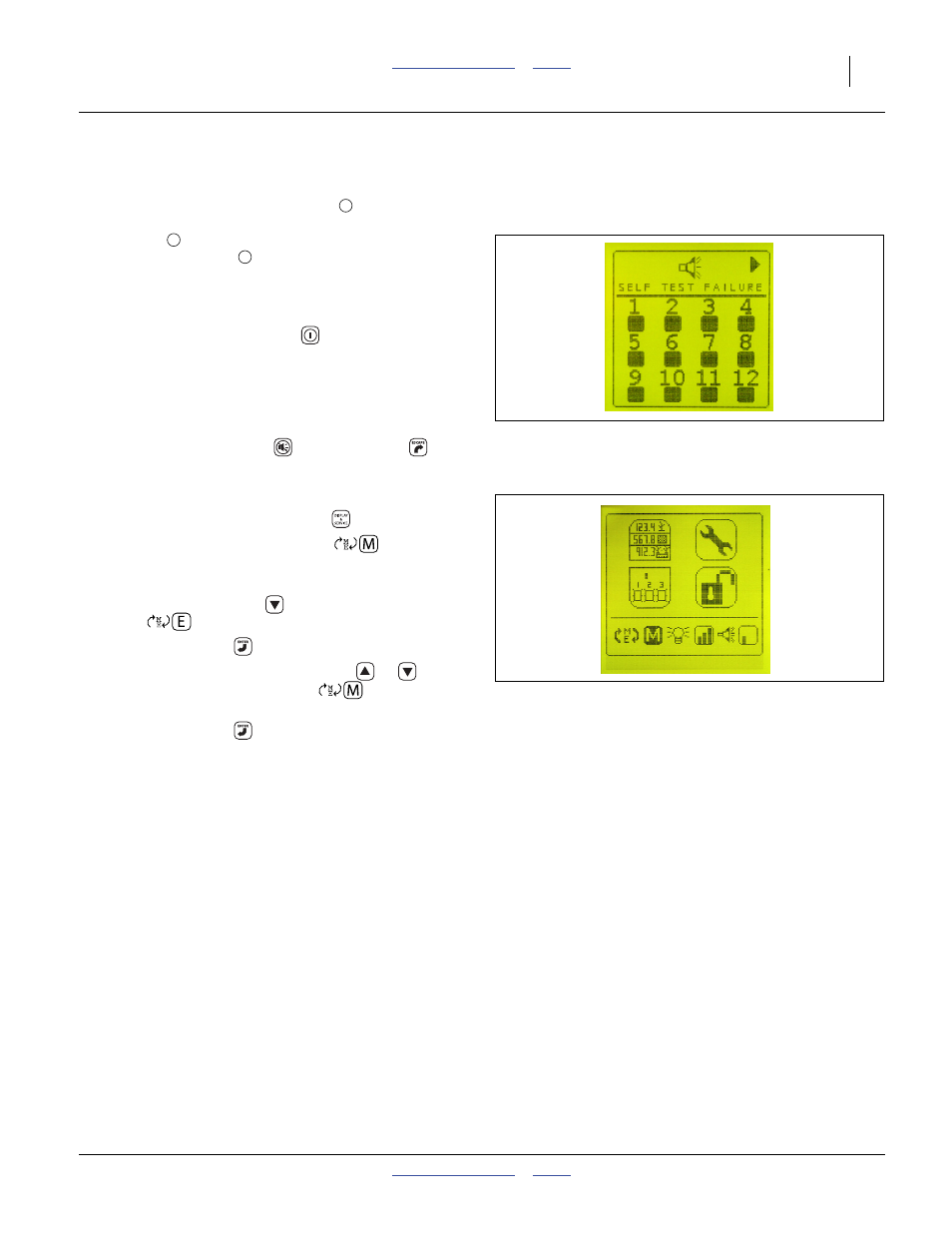

Figure 122
Error Screen (No Harness)
31929
2
4
3
Figure 123
Display: Metric Mode Set
31933
